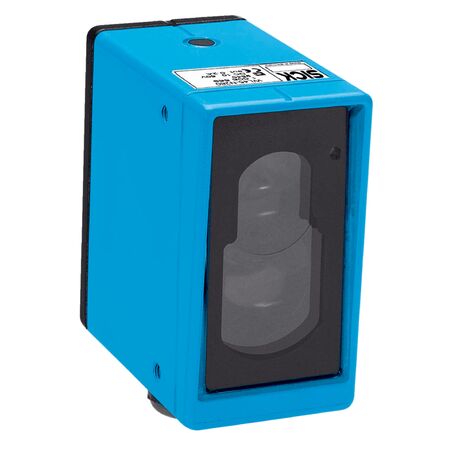

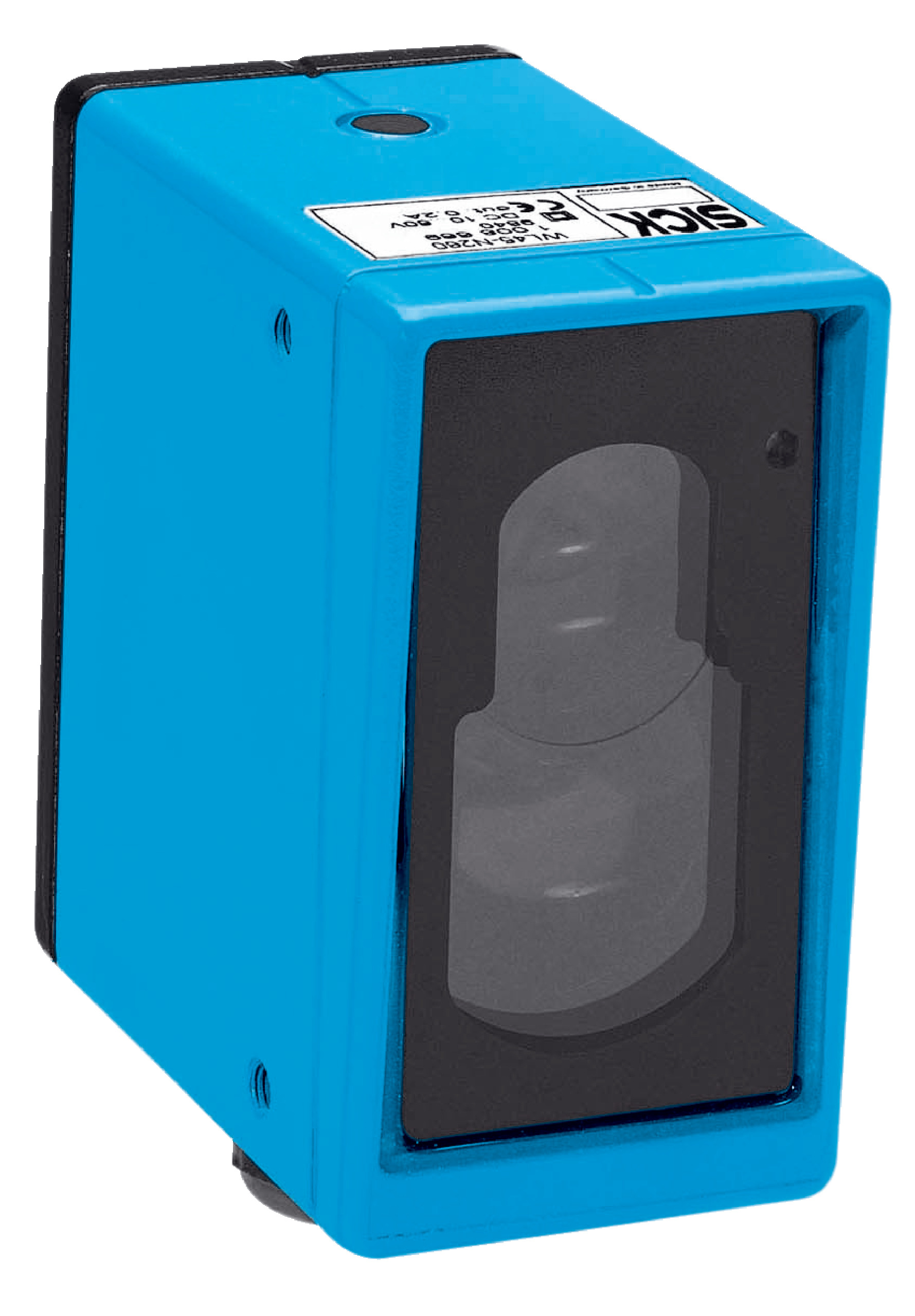

Photoelectric Retro-Reflective Sensor WL45-R650 | Dual Lens System | IP65 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL45-R650 is designed for industrial automation, featuring a dual lens system for precise object detection up to 45 meters. With a robust IP65-rated metal housing and a visible red LED light source, it ensures reliable performance in various environments, making it ideal for safety monitoring and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL45-R650 | Dual Lens System | IP65 Rated | by SICK
Brand: SICK
SKU: 1008836
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, Industrial Object Sensor, SICK WL45 Sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 1 m to 45 m (max 55 m)
- Light source: Visible red LED
- Light spot size: Ø 230 mm at 16 m distance
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Power consumption: ≤ 6 VA
- Switching output: Relay, electrically isolated, change-over contacts
- Switching current: 4 A @ 250 V AC, 4 A @ 24 V DC, 0.125 A @ 120 V DC
- Response time: ≤ 20 ms
- Switching frequency: 10 Hz
- Time functions: Switch-on delay, off delay, ON and OFF delay adjustable 0.5 s to 12 s
- Connection type: Hirschmann 6-pin connector
- Protection class: I
- Enclosure rating: IP65
- Ambient operating temperature: -25°C to +55°C
- Housing material: Metal
- Polarisation filter and front screen heating included
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 0.8 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source
- Adjustable potentiometer for sensitivity and delay settings
- Relay output with change-over contacts
- Selectable light/dark switching mode with time delay selector switch
- Front screen heating to prevent condensation
- Robust metal housing with IP65 enclosure rating
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL45-R650 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
