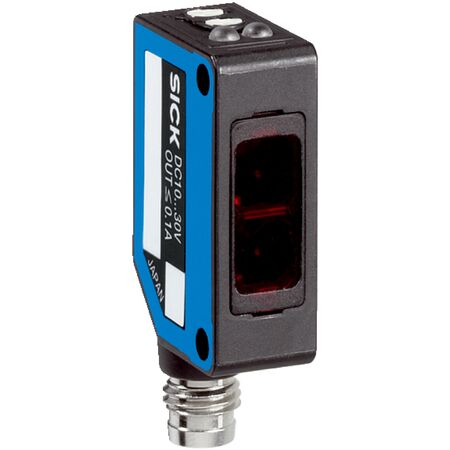

Photoelectric Retro-Reflective Sensor WL100L-F2131 | Dual Lens System | IP65 Rated | by SICK
The WL100L-F2131 Photoelectric Retro-Reflective Sensor is designed for high-speed object detection in industrial automation. Featuring a dual lens system and a visible red laser light source, it operates effectively within a sensing range of 0.08 m to 10 m. With an IP65 rated enclosure, this sensor is built for durability and reliability, making it ideal for manufacturing lines and small object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.08 m to 10 m (max 12 m)
- Light source: Visible red laser, 650 nm wavelength, Laser class 1
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP with selectable light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.25 ms
- Switching frequency: 2,000 Hz
- Connection type: M8, 3-pin connector
- Circuit protection: Types A, B, D
- Housing material: Plastic (ABS/PC/POM), Optics material: Plastic (PMMA)
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Includes stainless steel mounting bracket and reflector
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red laser light source with 650 nm wavelength
- Adjustable potentiometer with 270° rotation
- Selectable light/dark switching mode
- High switching frequency of 2,000 Hz
- IP65 rated enclosure for dust and water resistance
- Includes stainless steel mounting bracket and reflector
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- High-speed object detection
- Small object detection in manufacturing lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP65 housing reduces need for frequent replacements
- Non-contact sensing reduces mechanical wear and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL100L-F2131 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
