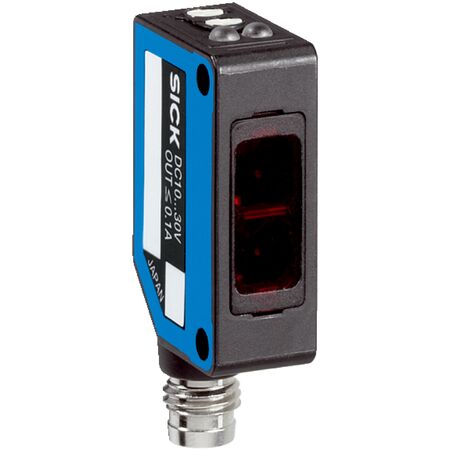

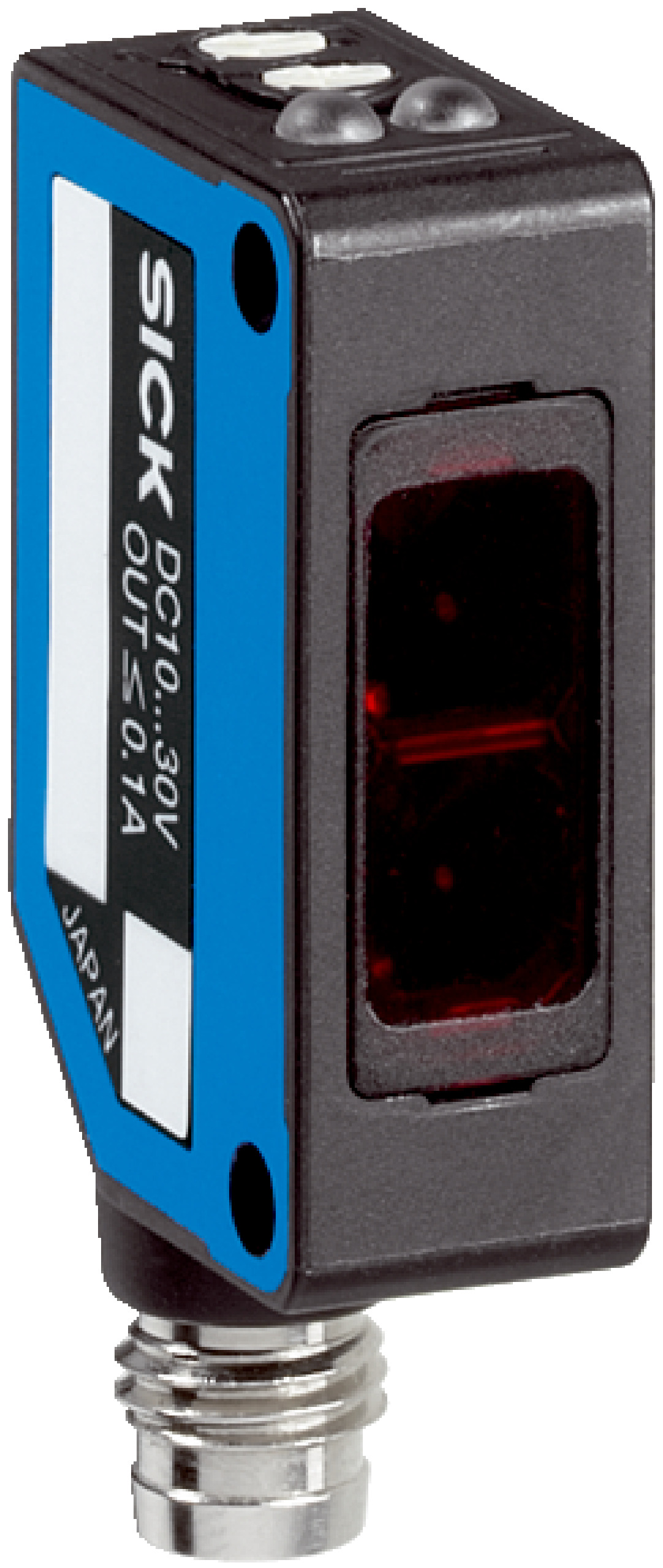

Photoelectric Retro-Reflective Sensor WL100L-F2131S06 | Dual Lens System | IP65 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL100L-F2131S06 features a dual lens system for precise object detection, with a sensing range of 0.08 m to 10 m and a visible red laser light source at 650 nm. Ideal for industrial automation, this sensor is designed for high-speed and small object detection, ensuring reliable performance in demanding environments with its IP65 rated enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.08 m to 10 m (max 12 m)
- Light source: Laser, 650 nm wavelength, Laser class 1
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP with selectable light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.25 ms
- Switching frequency: 2,000 Hz
- Connection: Cable with M8 3-pin connector, 200 mm length
- Circuit protection: Types A, B, D
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 10 g
- Polarizing filter included
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red laser light source with 650 nm wavelength
- Adjustable potentiometer with 270° rotation
- Selectable light/dark switching mode
- High switching frequency of 2,000 Hz
- IP65 rated enclosure for dust and water resistance
- Polarizing filter included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- High-speed object detection
- Small object detection in manufacturing lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP65 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK WL100L-F2131S06 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
