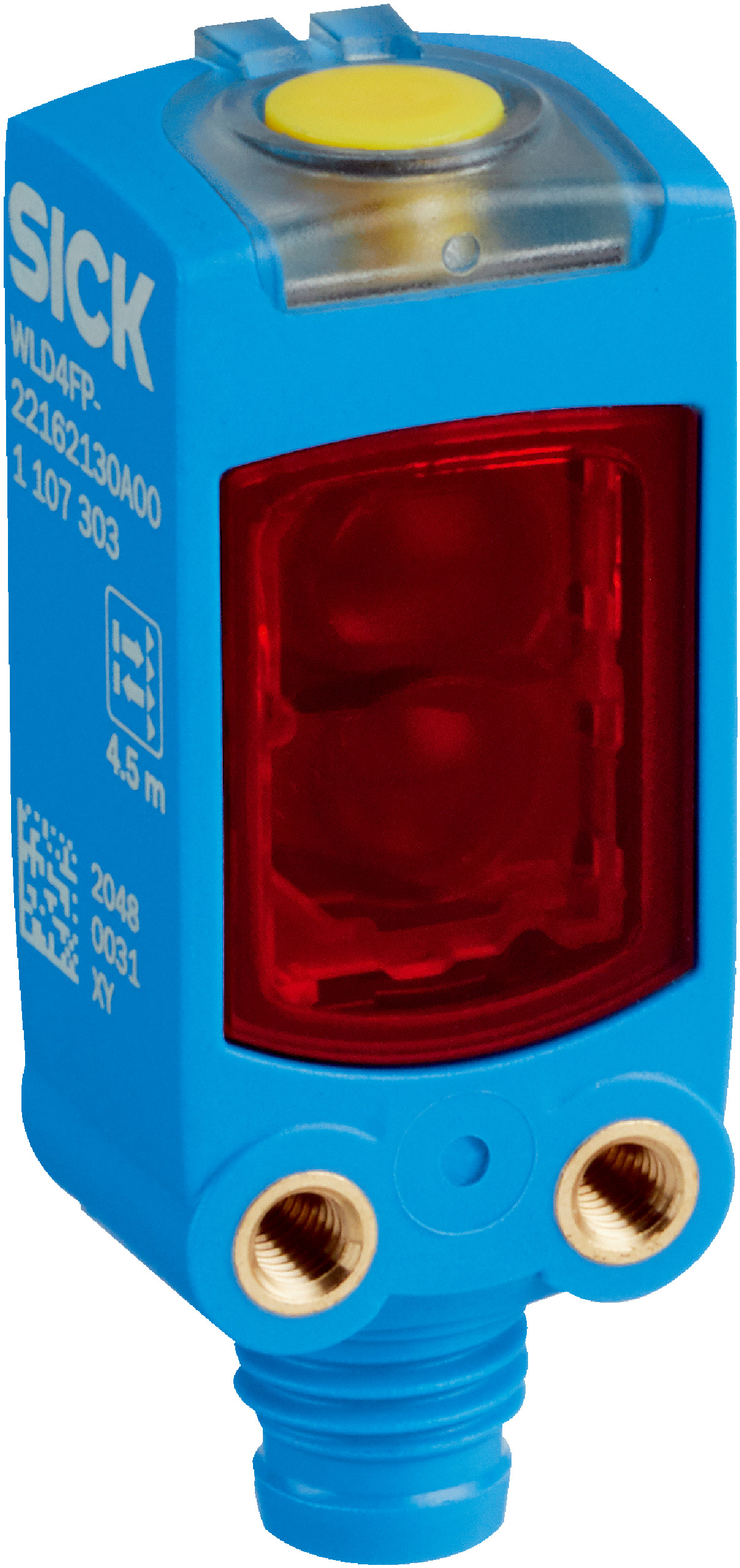

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP66/IP67/IP69 Rated | 4.5m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system and a sensing range of up to 4.5 meters. With an IP66/IP67/IP69 rated enclosure, it excels in harsh environments, ensuring reliable object detection and safety in manufacturing lines. The PinPoint LED and BluePilot teach-in button enhance usability, making it ideal for material handling and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: 1 PNP digital output, light switching
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Material: Plastic housing (VISTAL®), front screen PMMA
- Connection: M8, 3-pin connector
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0 m to 4.5 m with recommended range 0.035 m to 3.9 m
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot teach-in button for sensitivity adjustment
- LED indicators for alignment, power, and object presence
- High shock and vibration resistance
- IP66, IP67, and IP69 rated enclosure for harsh environments
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

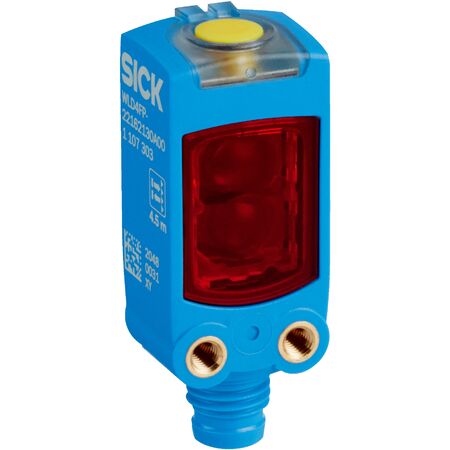

The SICK WLD4FP-21A12130ZZZ Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
