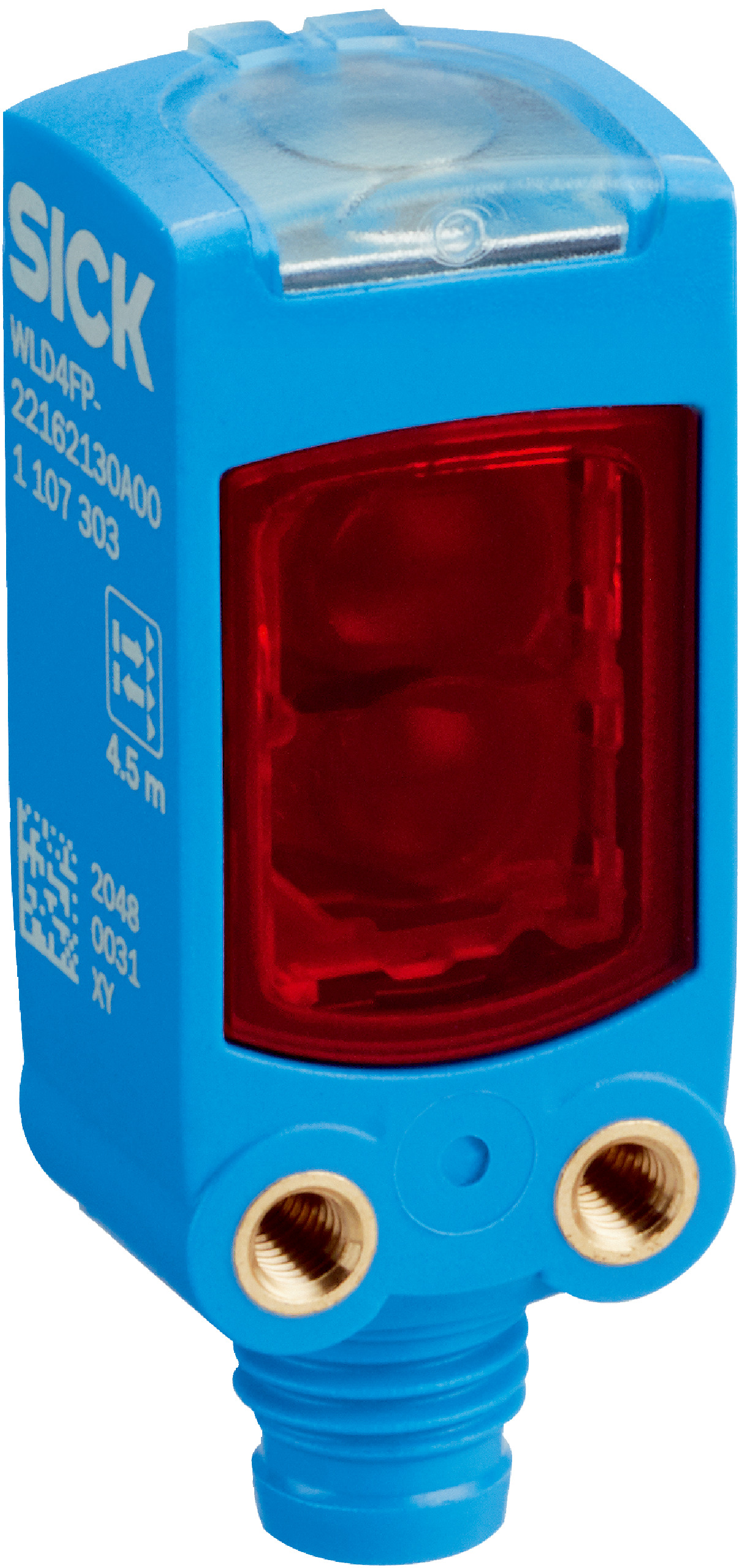

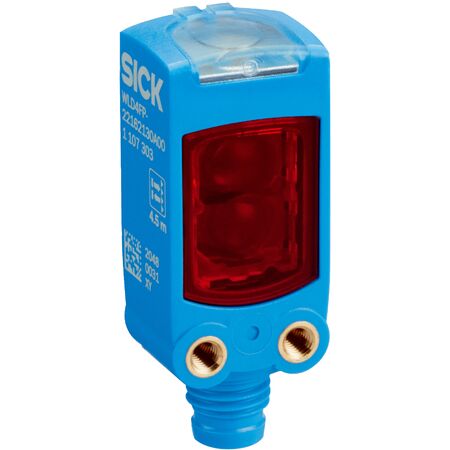

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WLD4FP-213111A0ZZZ features a dual lens system and a sensing range of 0 m to 4.5 m, making it ideal for industrial automation and safety applications. With a robust IP66/IP67/IP69 enclosure rating, it withstands harsh environments while providing reliable object detection. Designed for optimal performance, this sensor is perfect for manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 4.5 m (recommended 0.035 m to 3.9 m)
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Output type: Push-pull PNP/NPN, dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Housing material: Plastic VISTAL®
- Connection: M8, 3-pin connector
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0 m to 4.5 m with recommended range 0.035 m to 3.9 m
- PinPoint LED visible red light with 635 nm wavelength
- LED indicators for power and object detection status
- High shock resistance and vibration resistance
- IP66, IP67, and IP69 rated enclosure for harsh environments
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Push-pull PNP/NPN dark switching output
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WLD4FP-213111A0ZZZ Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
