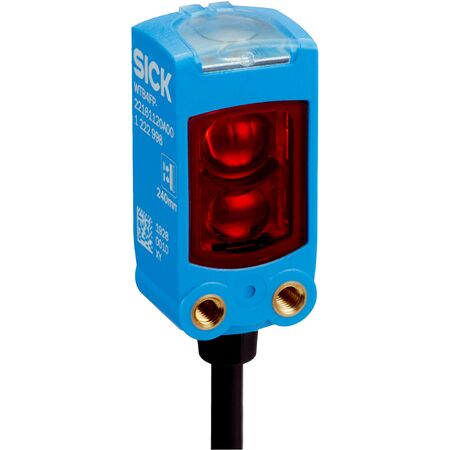

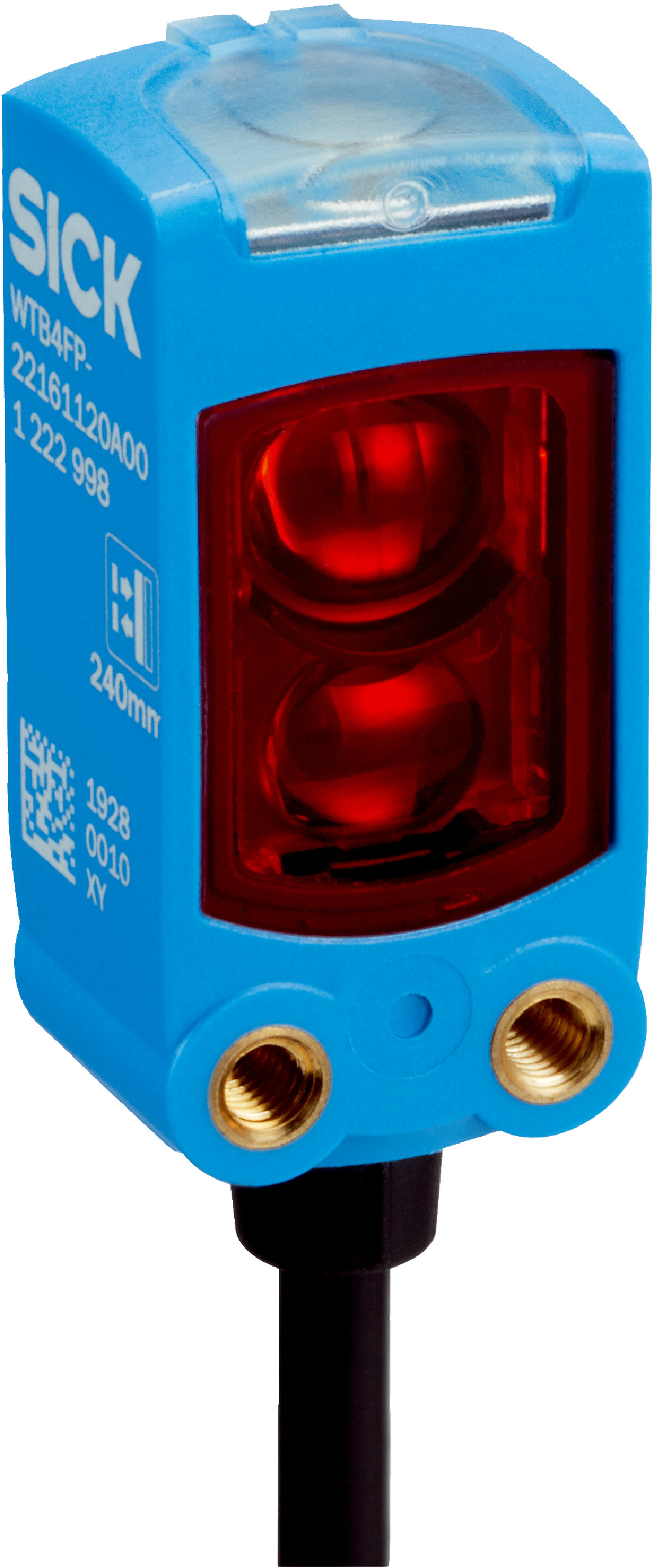

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP66/IP67/IP69 Protection | by SICK
The Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation, featuring a dual lens system and a sensing range of up to 10 meters. With an infrared PinPoint LED light source and a robust IP66/IP67/IP69 rated housing, this sensor ensures reliable performance in harsh environments, making it ideal for manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 10 m, recommended 0.4 m to 7 m
- Light source: PinPoint LED, infrared light at 850 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: Push-pull PNP/NPN, dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Housing material: Plastic VISTAL®
- Cable: 3-wire, 2 m length, PVC
- Weight: Approx. 30 g
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0 m to 10 m, optimal 0.4 m to 7 m
- Infrared PinPoint LED light source with 850 nm wavelength
- High protection rating IP66, IP67, and IP69
- Robust plastic VISTAL® housing with flat design
- LED indicators for power and object detection status
- Short response time of ≤ 500 µs and switching frequency up to 1,000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient infrared LED light source minimizes power consumption
- Robust design reduces environmental impact through durability and resistance to harsh conditions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WLF4FI-1G3111A0ZZZ Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
