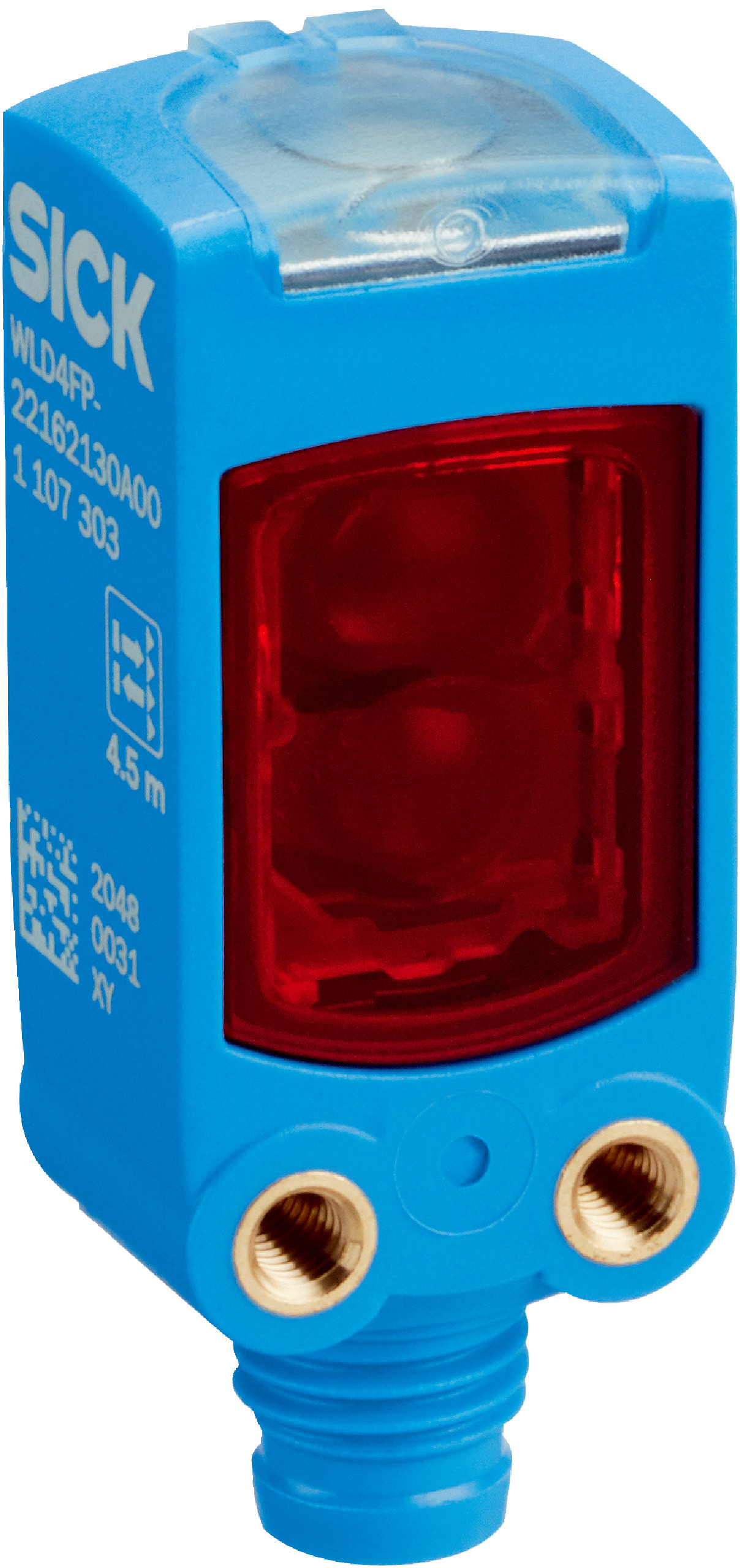

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP66, IP67, IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system and a sensing range of 0 m to 4.5 m. With a PinPoint LED light source and IP66, IP67, and IP69 ratings, this sensor is perfect for harsh environments, ensuring reliable object detection and safety in manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 4.5 m, recommended 0.035 m to 3.9 m
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: 1 PNP digital output, light switching
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Material: Plastic housing (VISTAL®), front screen PMMA
- Connection: M8, 3-pin connector
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0 m to 4.5 m with recommended range 0.035 m to 3.9 m
- PinPoint LED visible red light with point-shaped light spot
- High LED service life of 100,000 hours at 25°C
- IP66, IP67, and IP69 rated for harsh environments
- Shock resistance up to 30 g and vibration resistance from 10 Hz to 1000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

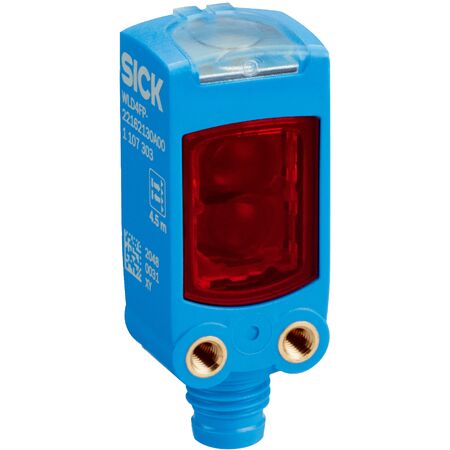

The SICK WLD4FP-21A121A0ZZZ Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
