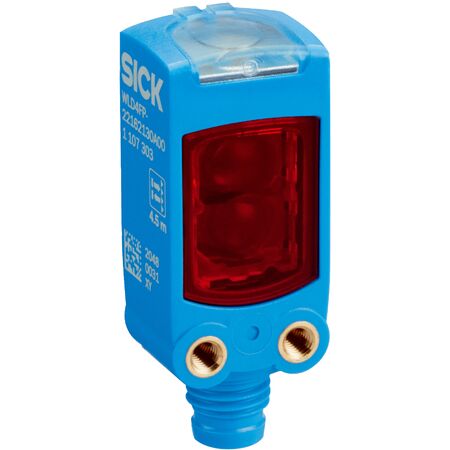

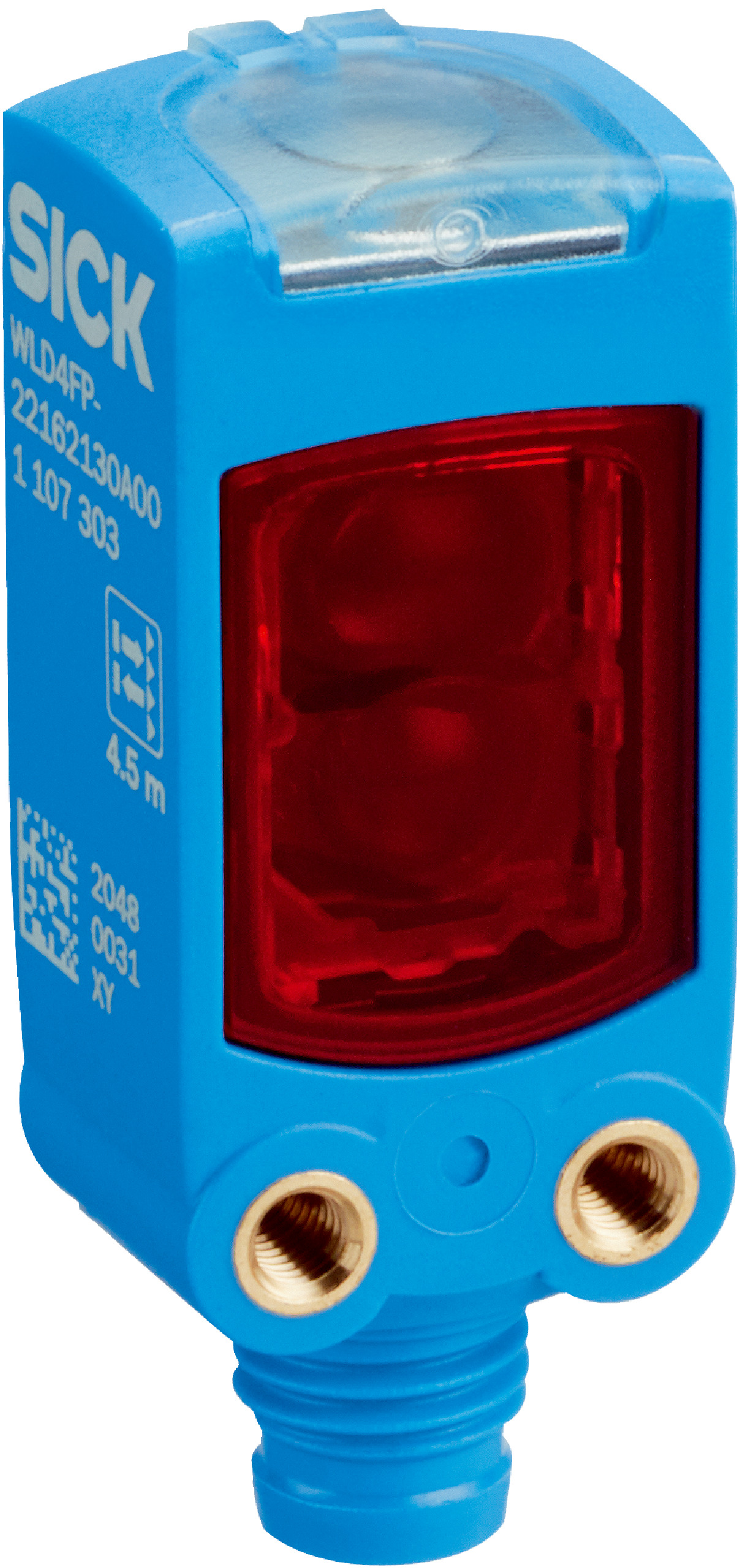

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system and a sensing range of 0 m to 4.5 m. With a PinPoint LED light source and high shock and vibration resistance, this sensor is perfect for safety and presence detection in manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 4.5 m (recommended 0.035 m to 3.9 m)
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: Ø 38 mm at 1000 mm distance
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Output type: 1 PNP digital output, dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Connection: M8, 3-pin connector
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0 m to 4.5 m with recommended range 0.035 m to 3.9 m
- PinPoint LED visible red light with point-shaped light spot
- LED indicators for power and object detection status
- High shock and vibration resistance
- IP66, IP67, and IP69 rated enclosure for harsh environments
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK WLD4FP-21A111A0ZZZ sensor is available for immediate purchase, ideal for industrial automation and safety applications.
