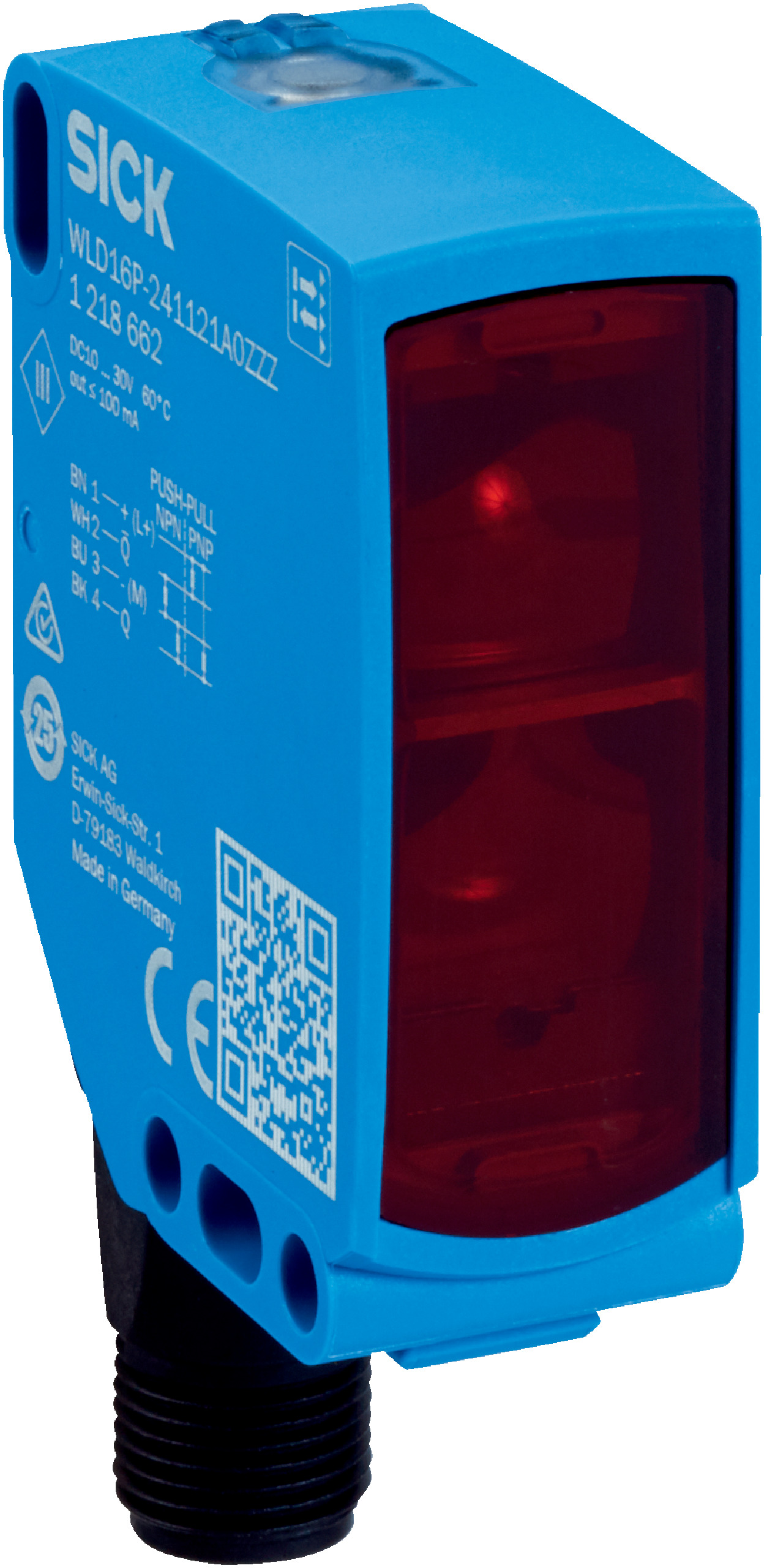

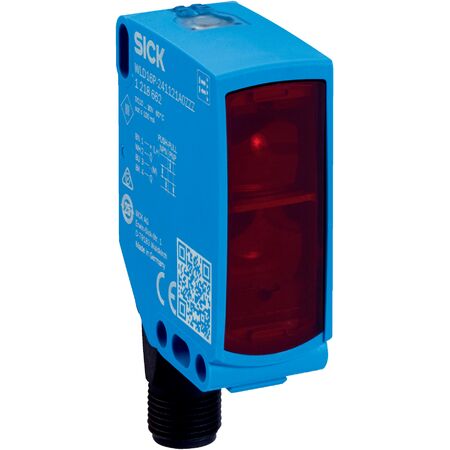

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WLD16P-241121A0ZZZ features a dual lens system for precise object detection, with a sensing range of 0.25 m to 14 m. Ideal for industrial automation, this sensor is built for harsh environments with IP66/IP67/IP69 ratings, ensuring robust protection against dust and water. Its PinPoint LED light source provides a clear detection spot, making it perfect for manufacturing lines and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.25 m to 14 m (recommended 0.25 m to 10 m)
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Output type: 2 complementary push-pull outputs (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 50 g, 11 ms and 6 ms shocks
- Vibration resistance: 10 Hz to 2,000 Hz, amplitude 0.5 mm / 10 g
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL®, front screen PMMA
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.25 m to 14 m with recommended range 0.25 m to 10 m
- PinPoint LED visible red light with point-shaped light spot of Ø 16 mm at 1 m
- LED indicators for power and object presence status
- High shock and vibration resistance suitable for harsh environments
- IP66, IP67, and IP69 rated enclosure for robust protection
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WLD16P-241121A0ZZZ photoelectric retro-reflective sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
