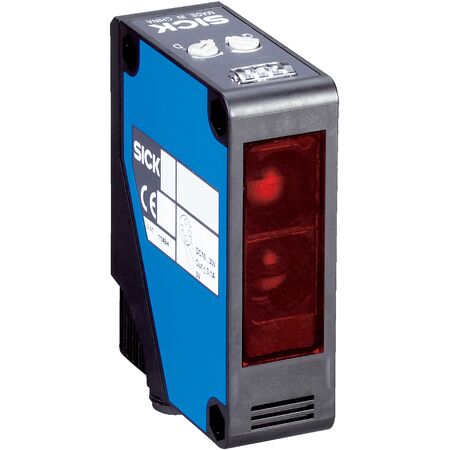

Photoelectric Retro-Reflective Sensor WL280-2R1531 | Dual Lens System | IP66 & IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL280-2R1531 features a dual lens system and a visible red LED light source, making it ideal for industrial automation and safety monitoring. With a sensing range of up to 15 m and a fast response time of ≤ 15 ms, this sensor ensures reliable object detection in various applications. Its robust ABS housing and IP66/IP67 ratings provide durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.01 m to 15 m depending on reflector
- Light source: Visible red LED
- Light spot size: Ø 260 mm at 8 m
- Supply voltage: 24 V DC to 240 V DC / AC
- Power consumption: ≤ 5 VA
- Switching output: Relay, electrically isolated, change-over contacts
- Switching current: 3 A at 240 V AC or 30 V DC
- Response time: ≤ 15 ms
- Switching frequency: 33 Hz
- Connection: 5-wire cable, 2 m, PVC
- Protection class: II
- Overvoltage category: 3
- Enclosure rating: IP66, IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Includes mounting bracket BEF-W280 and reflector P250
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.15 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with a light spot size of Ø 260 mm at 8 m
- Sensing range up to 15 m depending on reflector used
- Potentiometer adjustment for sensitivity
- Relay switching output with change-over contacts
- High switching frequency of 33 Hz and fast response time ≤ 15 ms
- Robust plastic ABS housing with IP66 and IP67 enclosure rating
- Includes mounting bracket BEF-W280 and reflector P250
- Wide supply voltage range from 24 V DC/AC up to 240 V DC/AC
- Polarisation filter to reduce interference
- Certified for electromagnetic compatibility and photobiological safety
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 5 VA reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL280-2R1531 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
