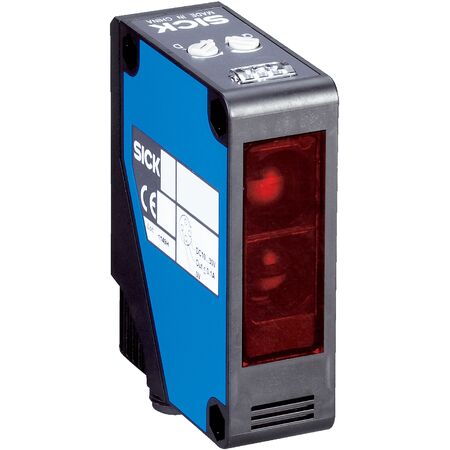

Photoelectric Retro-Reflective Sensor WL280-2P2431 | Dual Lens System | IP66 & IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL280-2P2431 features a dual lens system and a visible red LED light source, making it perfect for industrial automation and object detection. With a sensing range of up to 15 m and a fast response time of ≤ 0.5 ms, this sensor is designed for reliable performance in manufacturing processes and material handling applications. Its robust IP66 and IP67 rated housing ensures durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.01 m to 15 m (depending on reflector)
- Light source: Visible red LED
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP with max output current ≤ 100 mA
- Switching mode: Light/dark selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.15 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED source with a light spot size of Ø 260 mm at 8 m
- Selectable light/dark switching mode via rotary switch
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust plastic ABS housing with IP66 and IP67 enclosure rating
- Includes mounting bracket BEF-W280 and Reflector P250
- Polarisation filter included for enhanced detection reliability
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL280-2P2431 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
