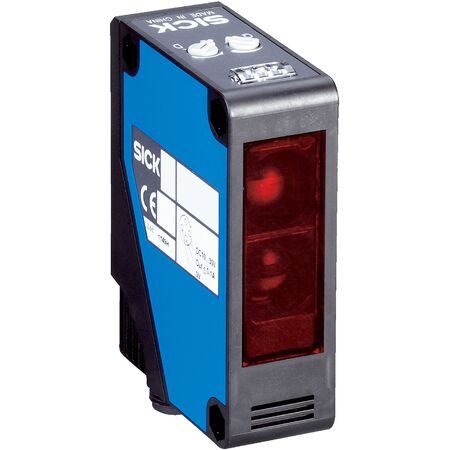

Photoelectric Retro-Reflective Sensor WL280-2H1631 | Dual Lens System | IP66 & IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL280-2H1631 features a dual lens system and a visible red LED light source, providing a sensing range of up to 15 meters. Ideal for industrial automation and safety monitoring, this robust sensor is designed for reliable object detection in manufacturing processes, ensuring high performance with a switching frequency of 33 Hz and IP66/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.01 m to 15 m depending on reflector
- Light source: Visible red LED
- Light spot size at 8 m: Ø 260 mm
- Supply voltage: 24 V DC to 240 V DC and 24 V AC to 240 V AC
- Power consumption: ≤ 5 VA
- Switching output: Electrically isolated relay with change-over contacts
- Switching current: 3 A at 240 V AC or 30 V DC
- Response time: ≤ 15 ms
- Switching frequency: 33 Hz
- Connection: 5-wire cable, 5 m length, PVC insulation
- Protection class: II
- Overvoltage category: 2
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP66 and IP67
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Includes mounting bracket BEF-W280 and reflector P250
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.15 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source
- Sensing range up to 15 meters depending on reflector
- Potentiometer adjustment for sensitivity
- Relay switching output with change-over contacts
- High switching frequency of 33 Hz
- Robust plastic ABS housing with IP66 and IP67 protection rating
- Includes mounting bracket and reflector
- Wide ambient operating temperature range from -25°C to +55°C
- Electromagnetic compatibility compliant with EN 60947-5-2 and EN 61000-6-3
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 5 VA reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL280-2H1631 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
