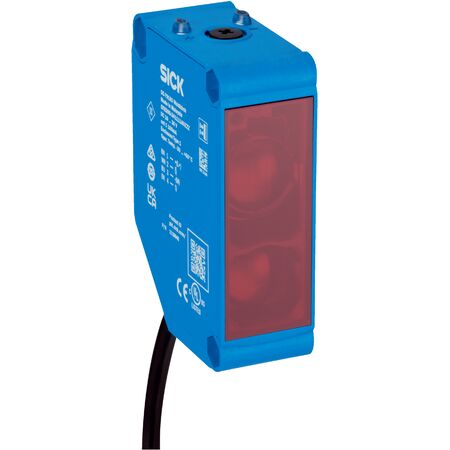

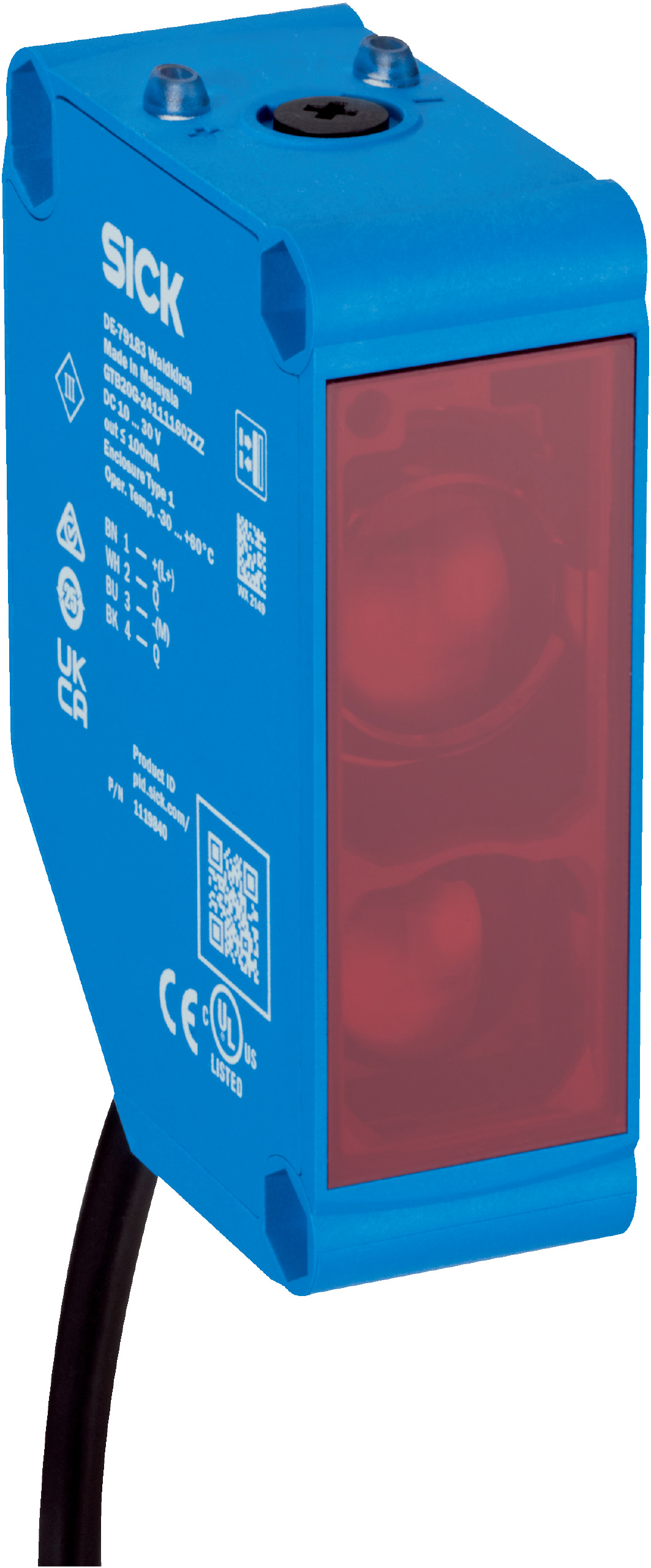

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 0.03m to 20m Range | by SICK
The Photoelectric Retro-Reflective Sensor GLD20G-6IRC2170ZZZ features a dual lens system for precise object detection, with a sensing range of 0.03m to 20m, making it ideal for industrial automation and safety applications. With an IP67 rating for dust and water protection, this sensor is built to withstand harsh environments while providing reliable performance and long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 20 m (max), recommended 0.03 m to 16 m
- Light source: Visible red LED, wavelength 630 nm
- Light spot size: Ø 200 mm at 5,000 mm distance
- LED service life: 100,000 hours at 25 °C
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Output: 2 complementary relay outputs, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- EMC standards: EN 60947-5-2, EN 61000-6-3
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.303 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 20 m with recommended range up to 16 m
- Visible red LED light source with rectangular light spot and 200 mm diameter at 5,000 mm
- Polarisation filters included to reduce interference
- LED indicators for power and object presence status
- Potentiometer for 270° sensitivity adjustment
- Relay outputs with light/dark switching modes
- High shock and vibration resistance
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -30 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring, alignment, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life reduces power consumption and maintenance waste
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GLD20G-6IRC2170ZZZ Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
