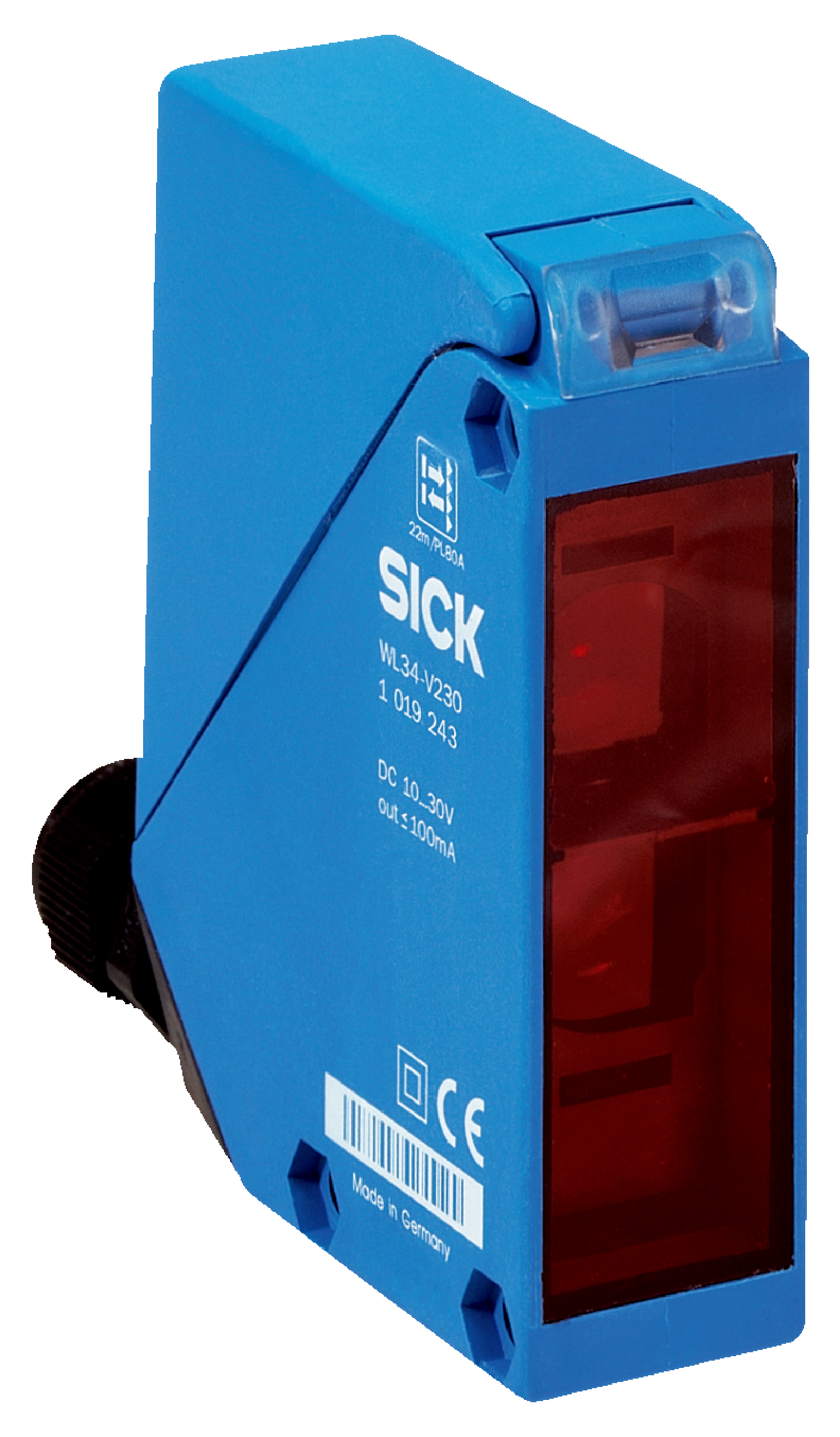

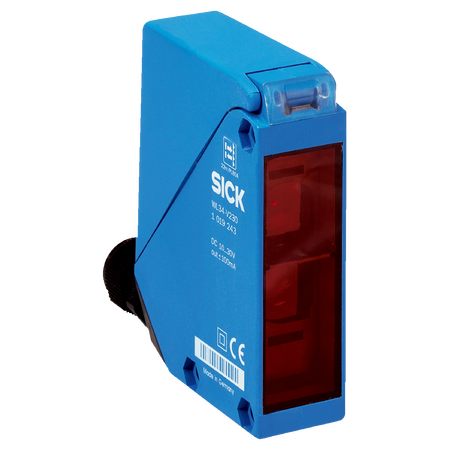

Photoelectric Retro-Reflective Sensor WL34-B440 | Dual Lens System | IP67 Rated | 0.03m to 22m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor WL34-B440 is designed for industrial automation, featuring a dual lens system for precise object detection at distances from 0.03m to 22m. With selectable light and dark switching modes, a high switching frequency of 1,000 Hz, and an IP67 enclosure rating, this sensor is perfect for safety monitoring in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Proximity sensor, Industrial photo sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 22 m
- Light source: Visible red LED, wavelength 660 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching output: NPN and PNP selectable
- Switching mode: Light switching and dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Time functions: Adjustable off delay and switch-on delay (0.5 s to 10 s)
- Connection type: Male M12, 4-pin connector
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: –40 °C to +60 °C
- Housing material: Plastic, ABS
- Weight: 140 g
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.14 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 660 nm
- Sensing range from 0.03 m up to 22 m
- Selectable switching modes: light switching and dark switching
- Adjustable time delay functions with off delay and switch-on delay
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating for dust and water protection
- Wide ambient operating temperature range from –40 °C to +60 °C
- Polarisation filter included for improved detection reliability
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor systems to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life minimizes waste and replacement frequency
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL34-B440 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
