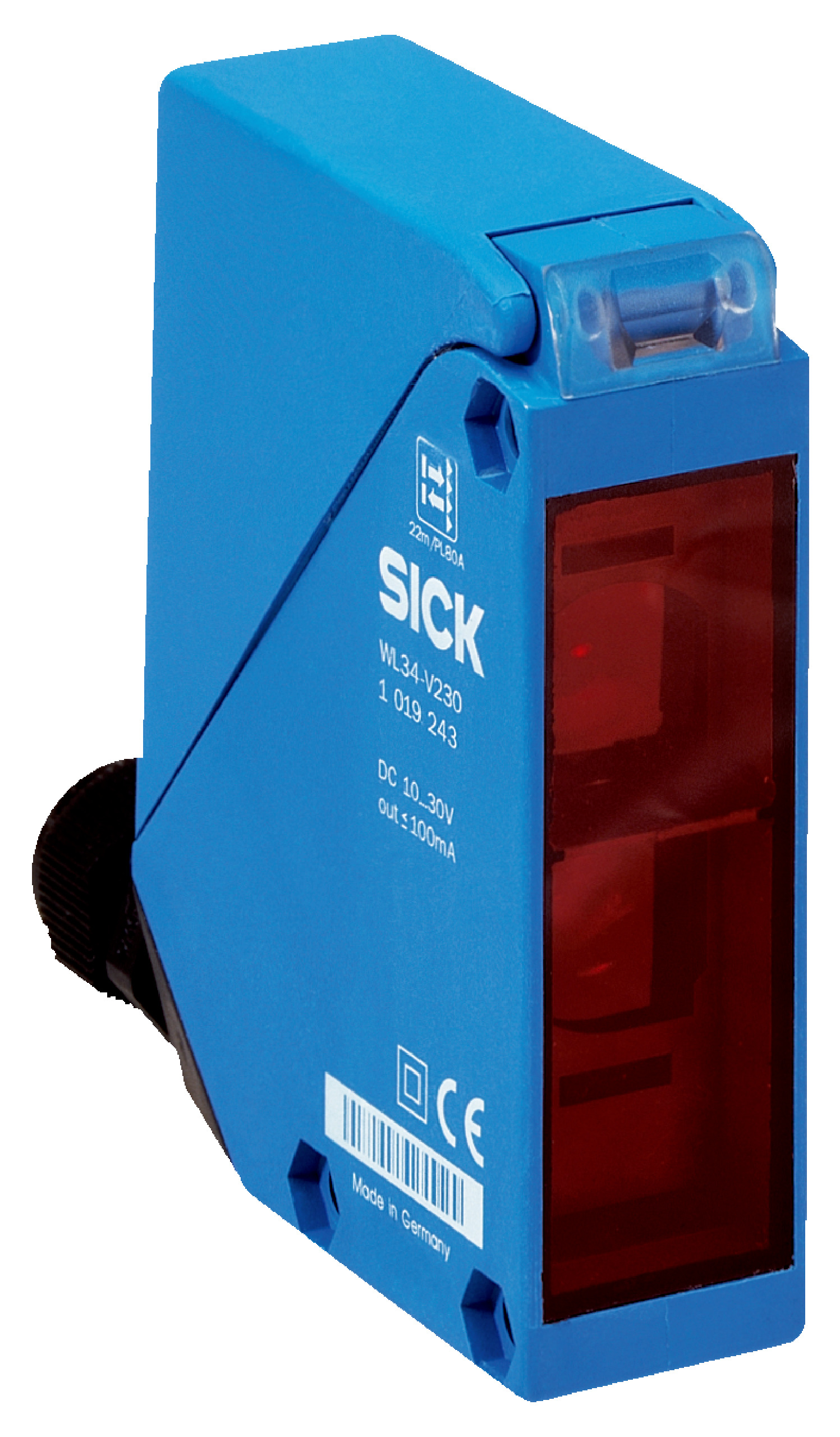

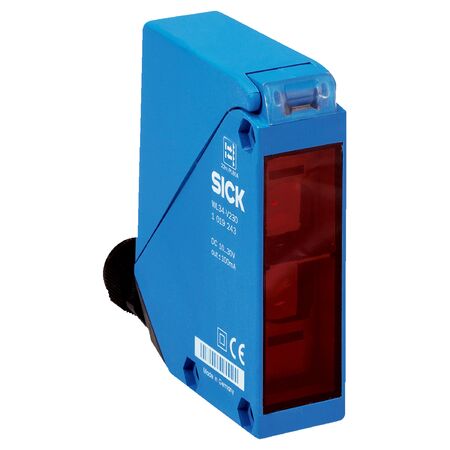

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 0.03m to 22m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor WL34-B430S01 features a dual lens system for precise object detection, with a sensing range from 0.03 m to 22 m. Ideal for industrial automation and safety monitoring, this sensor operates efficiently in temperatures from -40 °C to +60 °C and includes selectable light/dark switching modes. Its robust IP67-rated ABS housing ensures durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 0.03m to 22m Sensing Range | by SICK
Brand: SICK
SKU: 1025624
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, SICK WL34 Sensor, Industrial Object Sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 22 m
- Light source: Visible red LED, 660 nm wavelength
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching output: NPN and PNP selectable
- Switching mode: Light switching and dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, C, D
- Protection class: II
- Housing material: Plastic, ABS
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Weight: 140 g
- Polarisation filter: Yes
- Special device: Yes
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.14 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 22 m
- Visible red light LED with 660 nm wavelength
- Selectable light/dark switching and PNP/NPN output
- Robust plastic ABS housing with IP67 enclosure rating
- Operating temperature range from -40 °C to +60 °C
- Fast response time of ≤ 500 µs and switching frequency of 1,000 Hz
- Male connector M12, 4-pin connection type
- Polarisation filter and special device features included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL34-B430S01 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
