Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 0.05m to 4.5m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection. With a sensing range of 0.05 m to 4.5 m and a robust IP67 rated housing, this sensor is perfect for safety monitoring in manufacturing processes. Its visible red LED light source and fast response time of ≤ 0.5 ms ensure reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.05 m to 4.5 m (max 5.5 m)
- Light source: Visible red LED, wavelength 645 nm
- Focus and angle of dispersion: Approx. 4.5°
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: NPN, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic (PBT/PC), optics plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Weight: 62 g
- Includes reflector P250
- Dimensions (H x L x W): 18mm x 77mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with wavelength of 645 nm
- Sensing range from 0.05 m to 4.5 m, max 5.5 m
- Radial optical axis with approx. 4.5° focus and angle of dispersion
- Potentiometer adjustment with 270° sensitivity control
- NPN switching output with light/dark switching mode
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust plastic housing (PBT/PC) with IP67 enclosure rating
- Includes reflector P250
- Wide ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

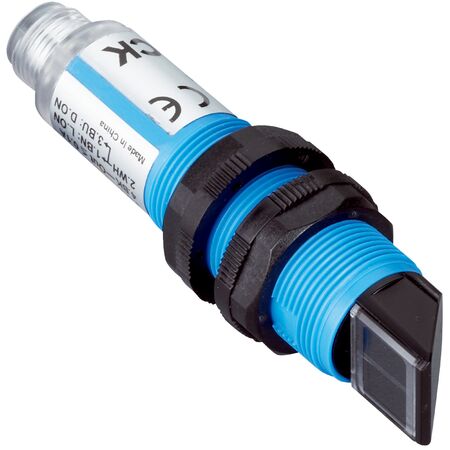

The SICK VL180-2N41138 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
