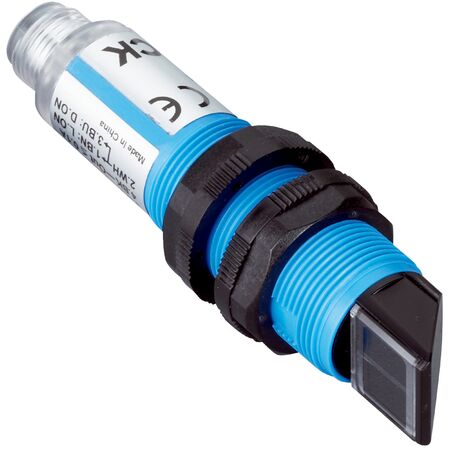

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 0.05m to 4.5m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor VL180-2P42438 features a dual lens system for precise object detection, with a sensing range of 0.05m to 4.5m and a maximum range of 5.5m. Ideal for industrial automation and safety applications, this sensor operates with a visible red LED light at 645 nm and offers a fast response time of ≤ 0.5 ms. Its IP67 rated enclosure ensures durability in harsh environments, making it perfect for manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.05 m to 4.5 m (max 5.5 m)
- Light source: Visible red LED, wavelength 645 nm
- Adjustment: Potentiometer, 270° sensitivity
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic PBT/PC
- Optics material: Plastic PMMA
- Weight: 18 g
- Dimensions (H x L x W): 18mm x 84.2mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 645 nm
- Sensing range from 0.05 m to 4.5 m, max 5.5 m
- Potentiometer adjustment with 270° sensitivity control
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Plastic housing made of PBT/PC and optics made of PMMA
- Male connector M12, 4-pin for easy connection
- Polarisation filter included for improved detection reliability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VL180-2P42438 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
