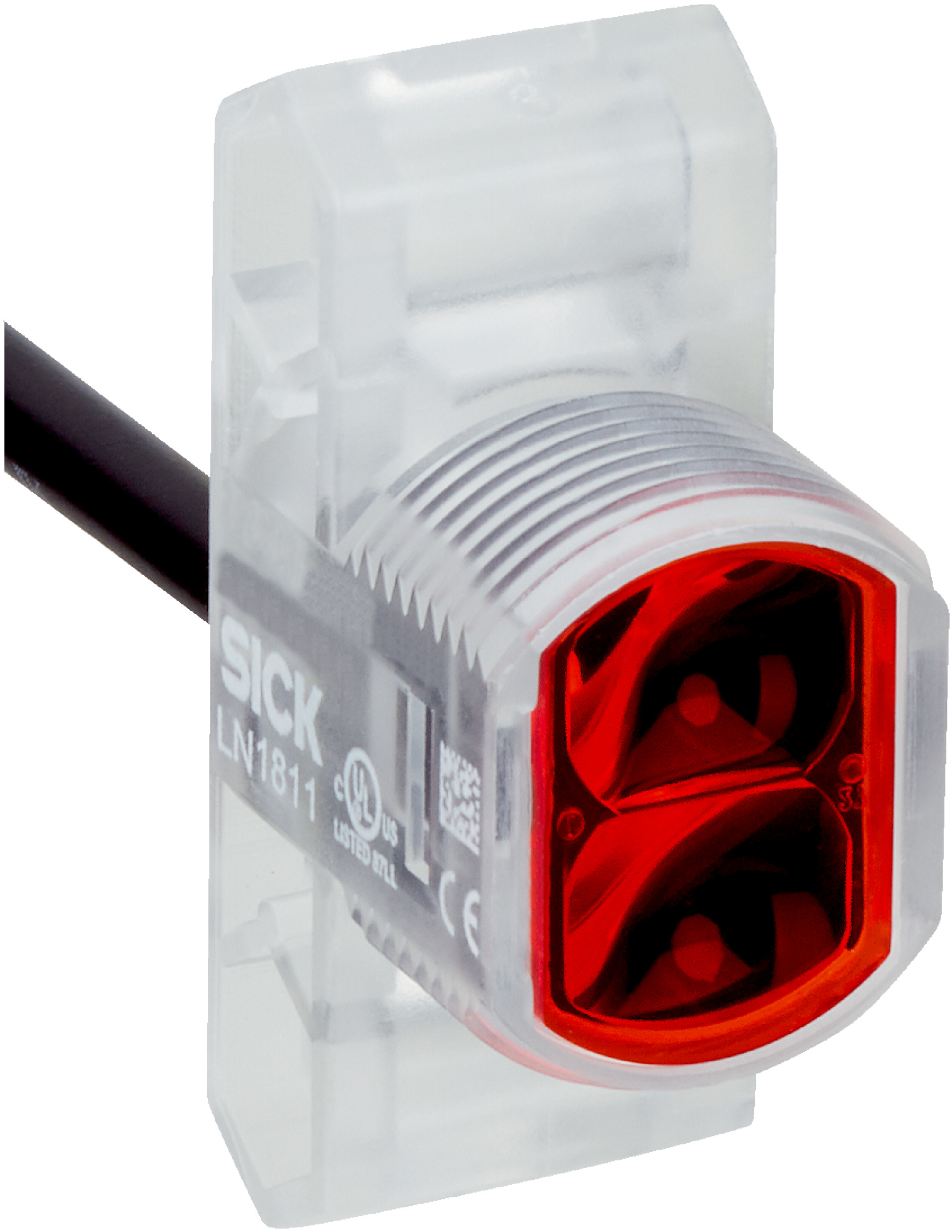

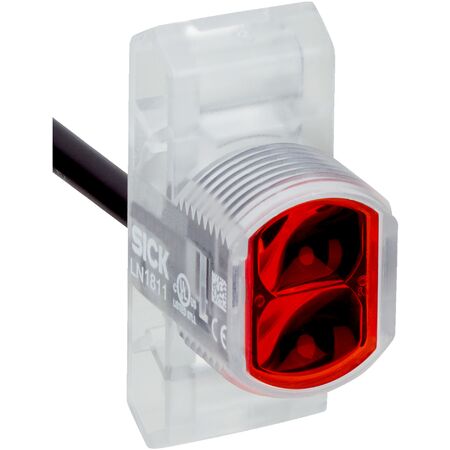

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | Sensing Range 0-6.8m | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-APZAG2 features a dual lens system and a sensing range of up to 6.8 meters, making it ideal for industrial automation and object detection. With a fast response time of ≤ 500 µs and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, perfect for material handling and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 to 6.8 meters
- Light source: PinPoint LED, visible red light at 625 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching mode
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: 2 m cable with RJ11 6-pin connector
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Protection class: III, Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 3.63 g
- Dimensions (H x L x W): 35mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 6.8 meters
- Hybrid housing design with transparent color
- M18 mounting system for head or side installation
- IP67 rated enclosure for dust and water protection
- Polarisation filter included to reduce false triggering
- Fast response time of ≤ 500 µs and switching frequency of 1,000 kHz
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-APZAG2 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
