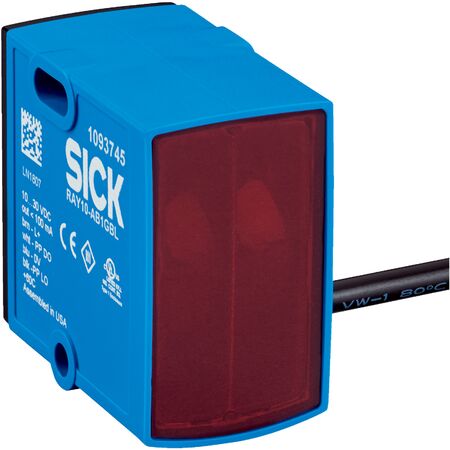

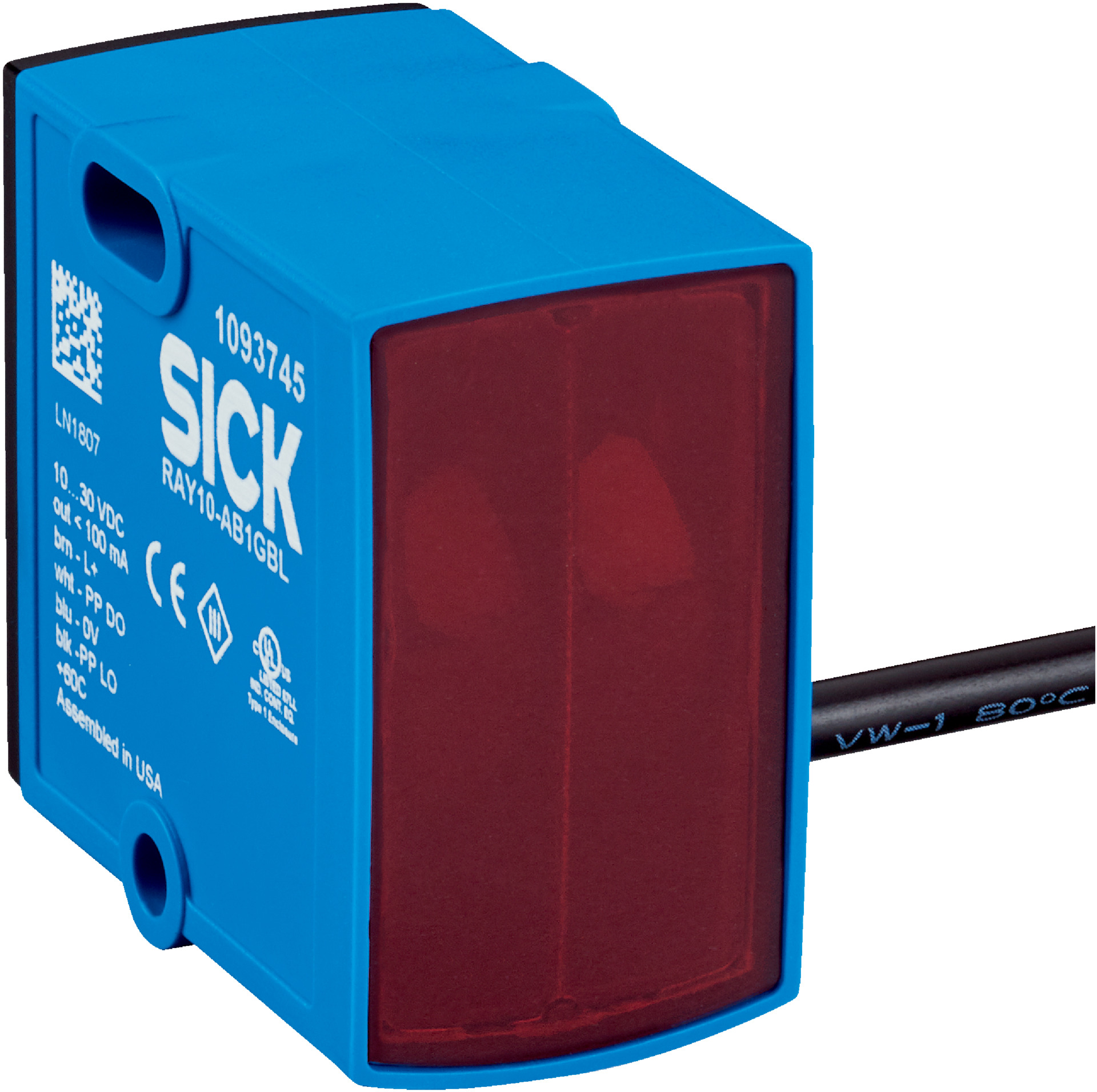

Photoelectric Retro-Reflective Sensor RAY10-AB4EBL | Dual Lens System | IP67 Rated | 1.5m Sensing Range | by SICK
The RAY10-AB4EBL Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation. Featuring a dual lens system and a sensing range of up to 1.5 meters, it effectively detects various object types, including transparent and shiny surfaces. With an IP67 rating for dust and water protection, this sensor operates efficiently in challenging environments, making it ideal for professionals seeking reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Minimum object size: 5 mm
- Detection height: 25 mm
- Sensing range max.: 0 to 1.5 m
- Distance to reflector: 0.3 m to 1.5 m
- Light source: PinPoint LED, 635 nm wavelength
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: Push-pull PNP/NPN
- Switching mode: Light/dark switching
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M12 male connector, 4-pin, 1 m
- Cable material: Plastic, PVC
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +70°C
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 36mm x 38mm x 22mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Minimum object size detection of 5 mm
- Sensing range up to 1.5 m
- Visible red light with 635 nm wavelength
- Potentiometer adjustment
- Push-pull PNP/NPN switching output
- Light/dark switching mode
- High switching frequency of 1000 Hz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection
- Detecting transparent, perforated, uneven, shiny, and flat objects
- Position-independent detection within light array
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK RAY10-AB4EBL Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
