Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 1.5m Sensing Range | by SICK

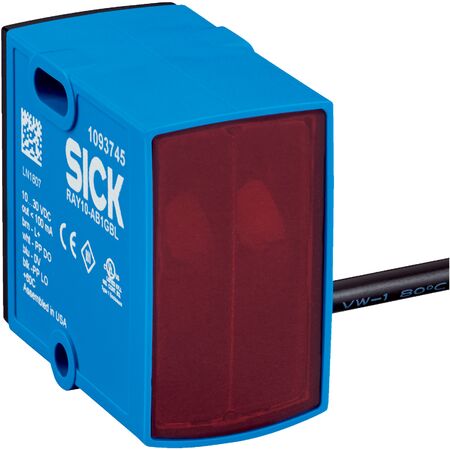

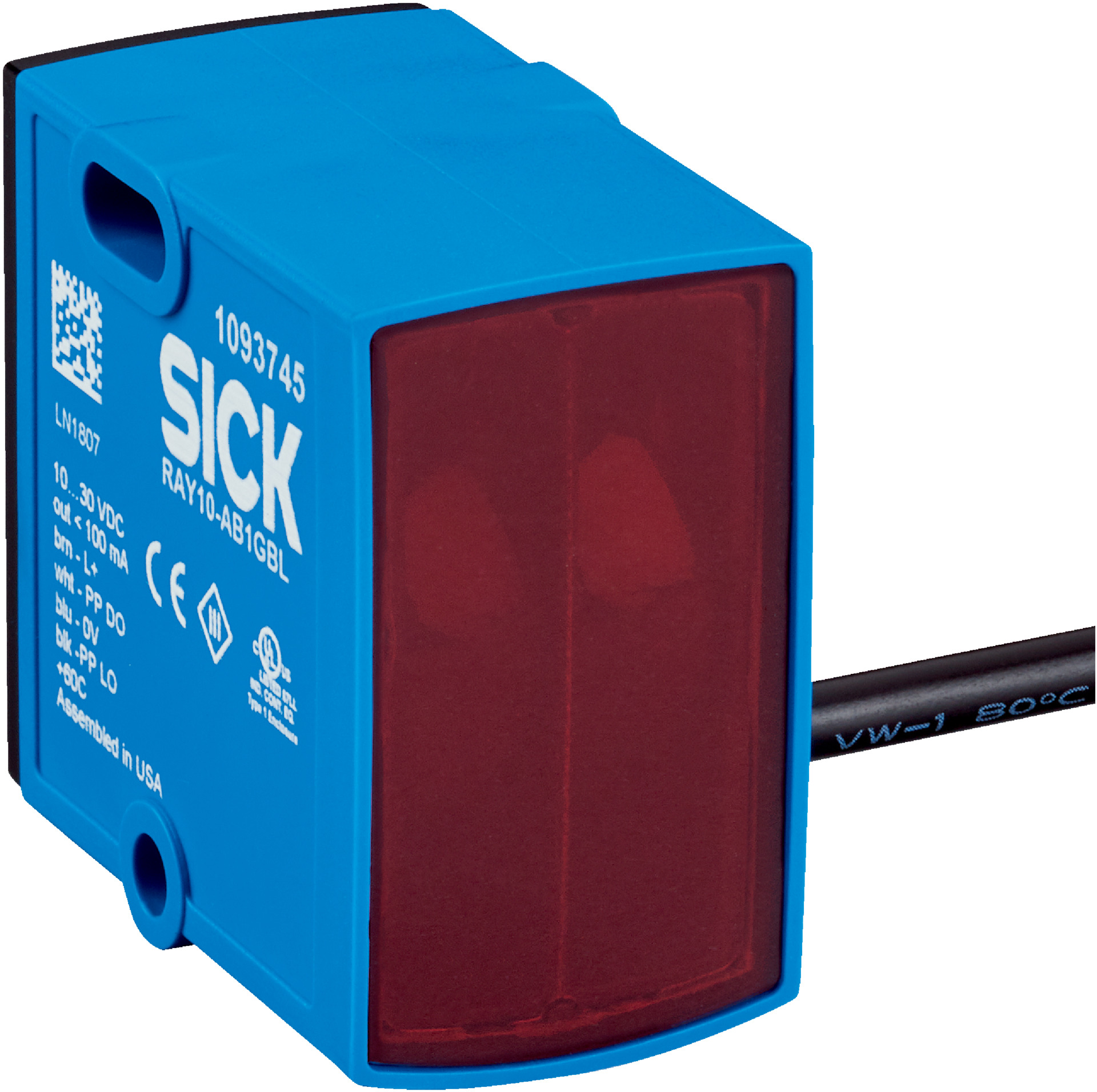

The Photoelectric Retro-Reflective Sensor RAY10-AB5EBLA00 features a dual lens system for precise object detection, with a minimum object size of 5 mm and a sensing range of up to 1.5 m. Designed for industrial automation, this sensor operates efficiently in harsh environments with an IP67 rating, ensuring reliable performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Minimum object size: 5 mm
- Detection height: 25 mm
- Sensing range max.: 0 m to 1.5 m
- Light source: PinPoint LED, 635 nm wavelength
- Adjustment: Potentiometer, IO-Link
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: Push-pull PNP/NPN
- Output function: NPN normally closed/open, PNP normally open/closed, IO-Link
- Switching frequency: 1000 Hz
- Response time: ≤ 0.5 ms
- Connection: Cable with M8 4-pin male connector, 1 m length
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 36mm x 38mm x 22mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Minimum object size detection of 5 mm
- Sensing range up to 1.5 m with distance to reflector 0.3 m to 1.5 m
- Visible red light source with 635 nm wavelength
- Potentiometer and IO-Link adjustment
- Push-pull PNP/NPN switching output with light/dark switching modes
- High switching frequency up to 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- Cable with M8 4-pin male connector, 1 m length
