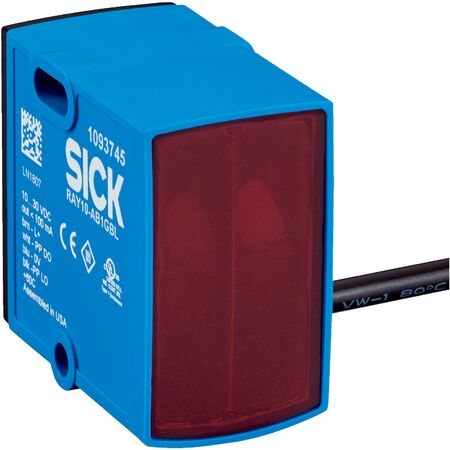

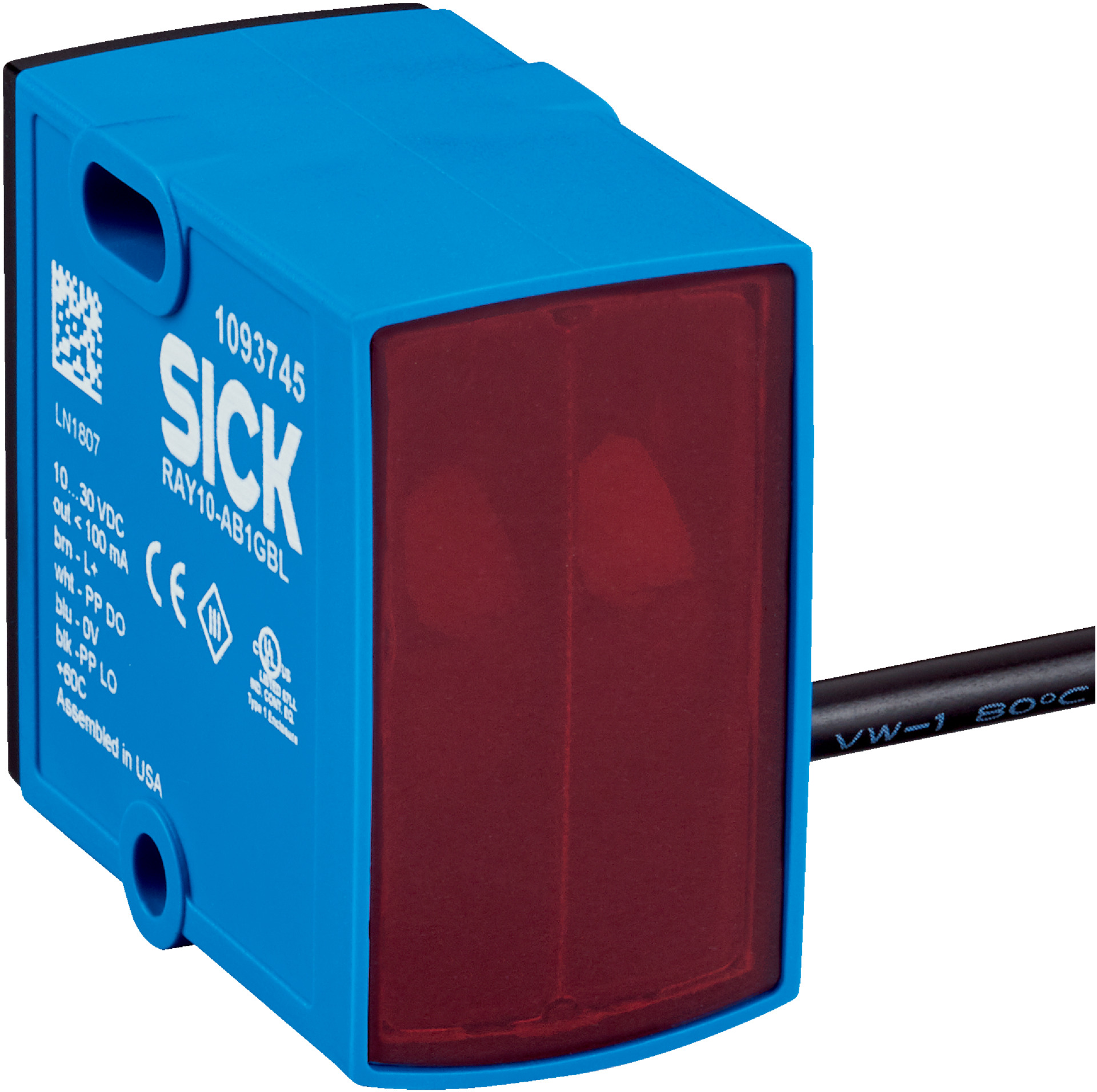

Photoelectric Retro-Reflective Sensor RAY10-PZ3CBL | IP67 Rated | Dual Lens System | 1.5m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor RAY10-PZ3CBL is designed for precise object detection in industrial automation. With a dual lens system and a sensing range of up to 1.5 meters, it effectively detects various object types, including transparent and shiny surfaces. Its IP67 rated enclosure ensures durability in harsh environments, making it ideal for reliable performance in diverse applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Minimum object size: 5 mm
- Detection height: 25 mm
- Sensing range max.: 0 to 1.5 m
- Distance to reflector: 0.3 m to 1.5 m
- Light source: PinPoint LED, wavelength 635 nm
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8 male connector, 4-pin, 300 mm
- Cable material: Plastic PVC, diameter 3.6 mm
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 36mm x 38mm x 22mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Minimum object size detection of 5 mm
- Sensing range up to 1.5 m
- Visible red light with PinPoint LED light source
- Potentiometer adjustment
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- Cable with M8 male connector, 4-pin, 300 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Detecting transparent, perforated, uneven, shiny, and flat objects
- Position-independent detection within light array
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption with efficient LED light source
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RAY10-PZ3CBL Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
