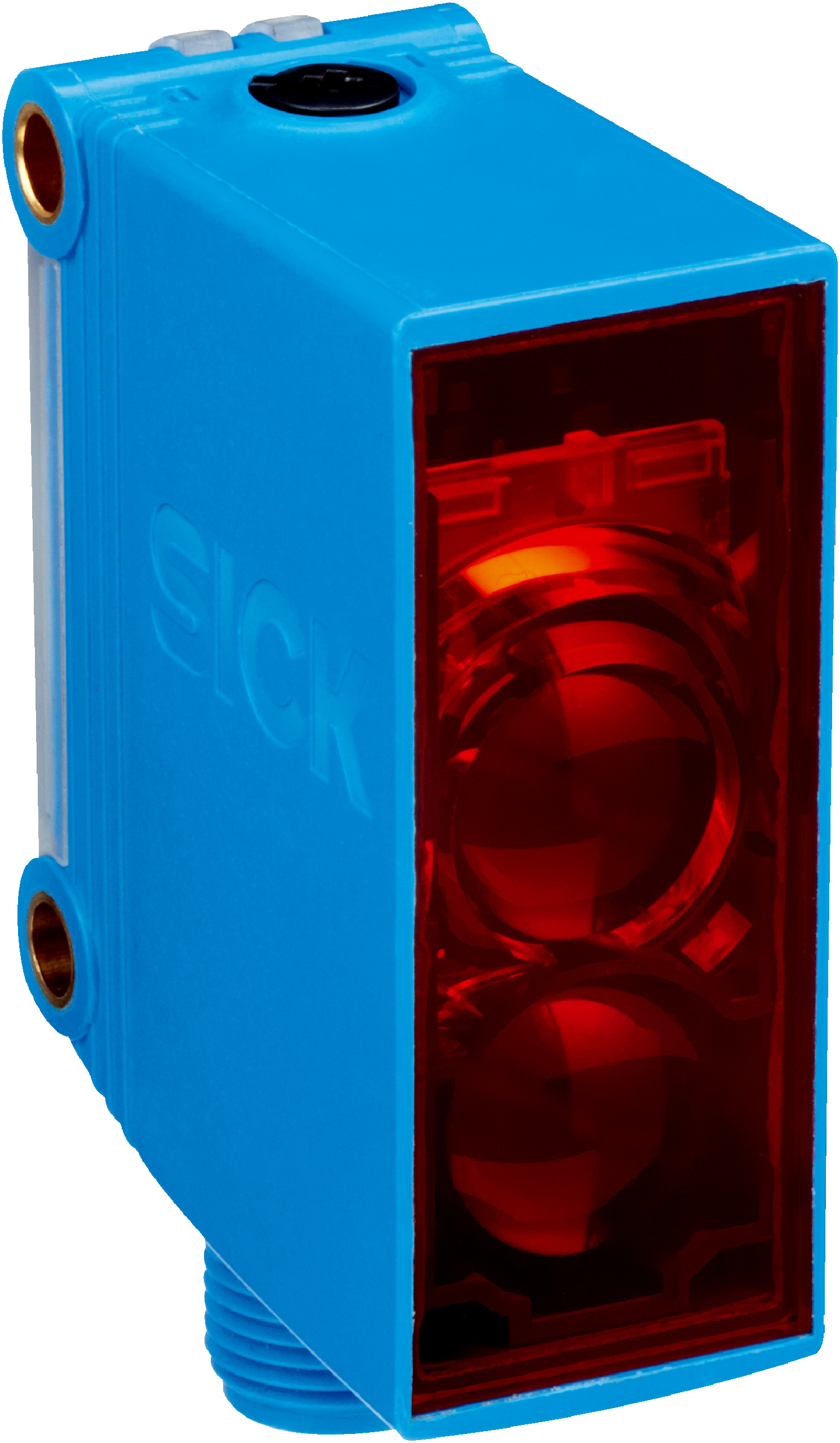

Photoelectric Retro-Reflective Sensor GL10-P4112 | Dual Lens System | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The Photoelectric Retro-Reflective Sensor GL10-P4112 features a dual lens system for precise object detection, with a sensing range of 0.15 m to 12 m. Ideal for industrial automation and safety monitoring, this sensor operates with a high switching frequency of 1,000 Hz and is housed in a robust IP67 rated enclosure, ensuring durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.08 m to 15 m
- Sensing range: 0.15 m to 12 m
- Light source: PinPoint LED, wavelength 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic ABS/PMMA
- Operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +70°C
- EMC compliance: EN 60947-5-2
- Certifications: UL File No. NRKH.E348498 & NRKH7.E348498, UL325, China-RoHS, cULus
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Selectable light/dark switching mode
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Polarizing filter included to reduce false triggering
- Robust plastic housing made of ABS/PMMA
- Wide ambient operating temperature range from -30°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GL10-P4112 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
