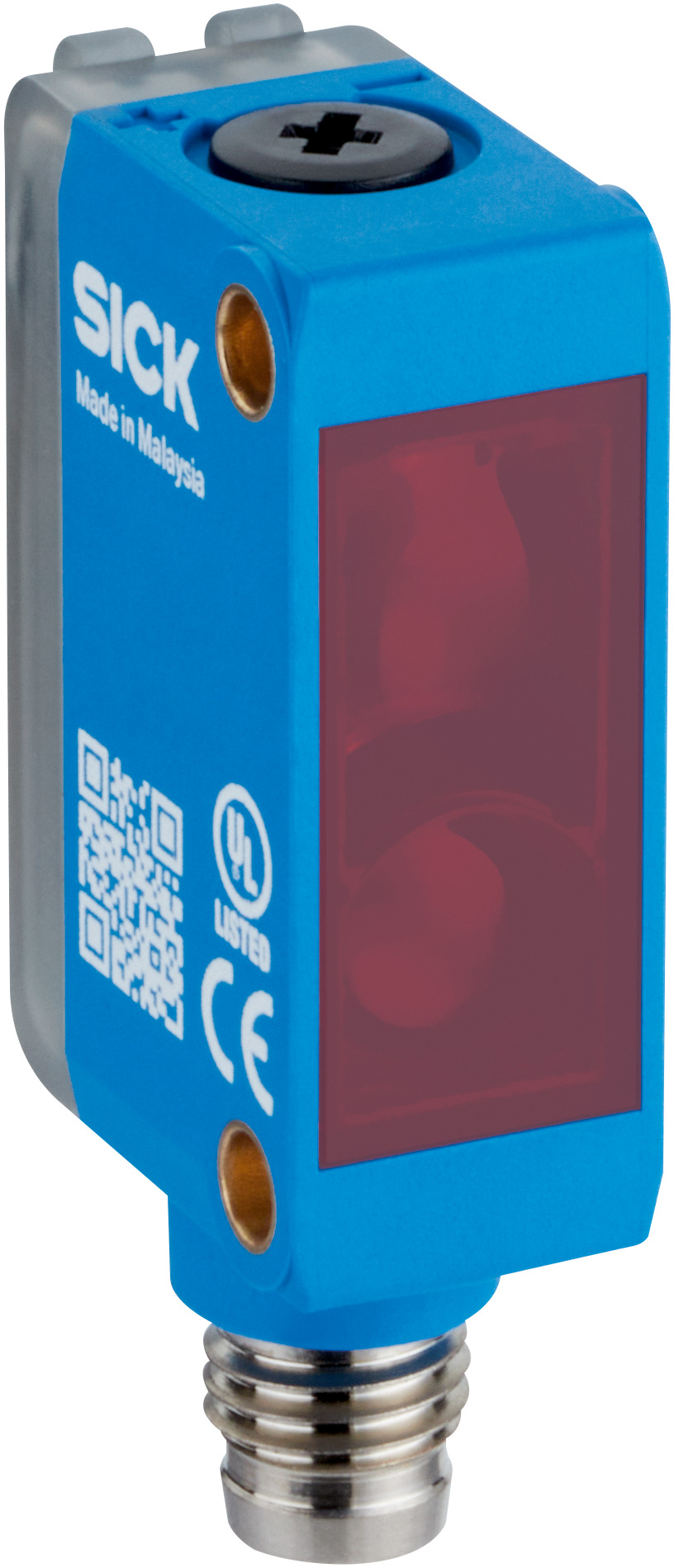

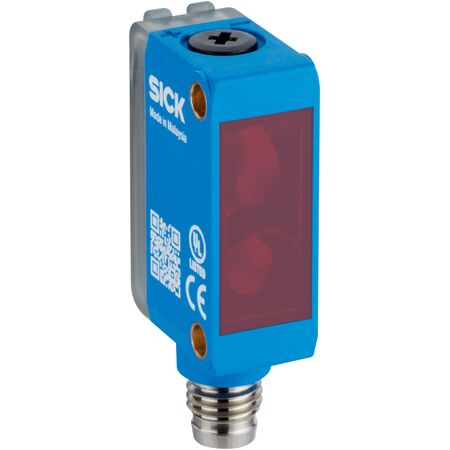

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The Photoelectric Retro-Reflective Sensor GLD6SP-22E1217EZZZ features a dual lens system for precise object detection, with a sensing range of 0.03 m to 6 m. Ideal for industrial automation and safety applications, this sensor operates efficiently in harsh environments, boasting an IP67 rating and a fast response time of ≤ 625 µs. With a durable design and low power consumption, it ensures reliable performance in manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 6 m; recommended 0.25 m to 1.6 m
- Light source: PinPoint LED, visible red light, wavelength 640 nm
- LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: NPN open collector, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Housing material: Plastic ABS with PMMA front screen
- Connection: Male M8, 4-pin connector
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 6 m with recommended range 0.25 m to 1.6 m for best performance
- PinPoint LED light source with visible red light at 640 nm wavelength
- Polarisation filter included to reduce interference
- LED indicators for power and object detection status
- Adjustable sensing range via 270° potentiometer
- Operating mode switch for light/dark switching function inversion
- High switching frequency of 1000 Hz and fast response time ≤ 625 µs
- Robust IP67 rated housing suitable for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GLD6SP-22E1217EZZZ photoelectric retro-reflective sensor is available for immediate purchase, ideal for industrial automation and safety applications.
