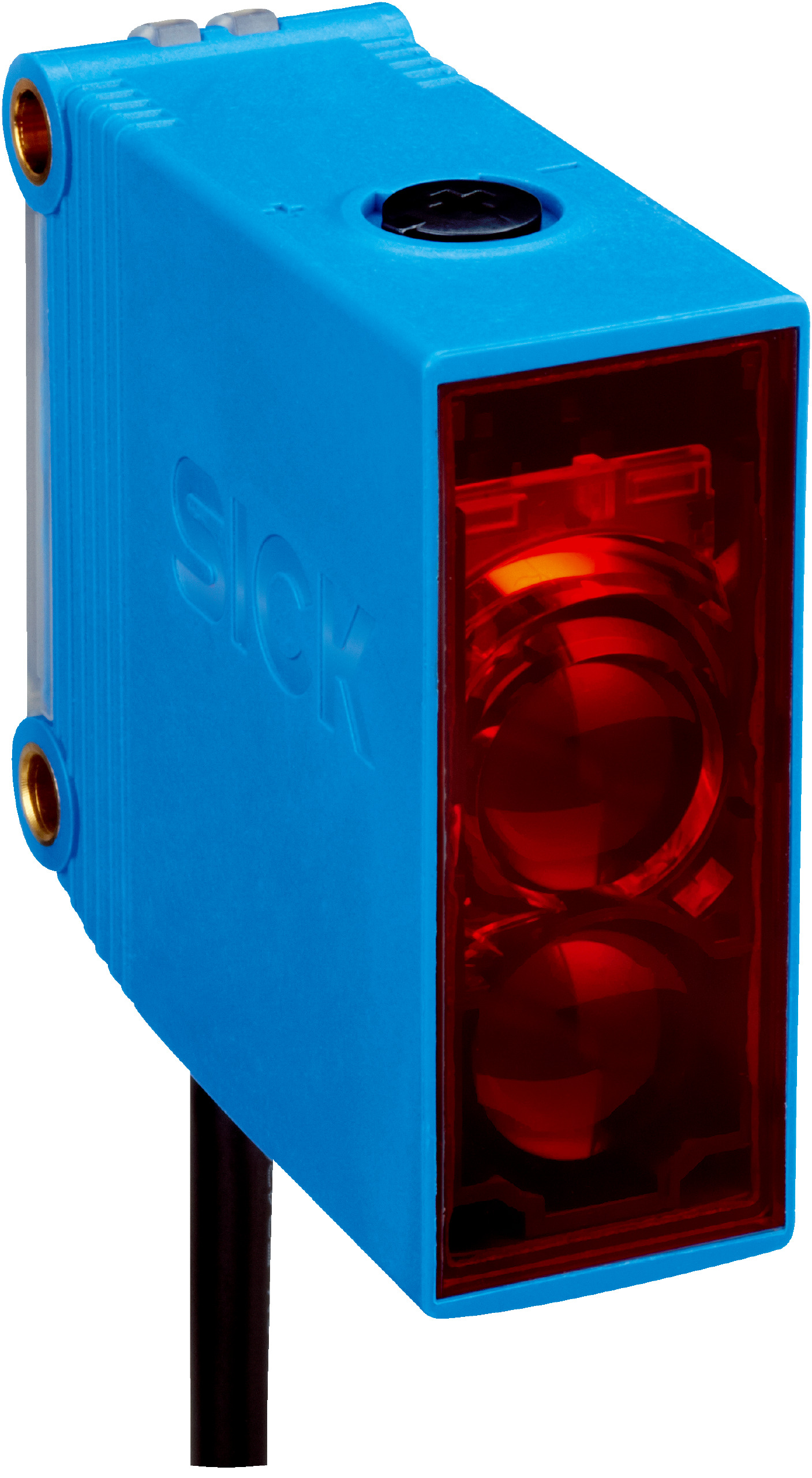

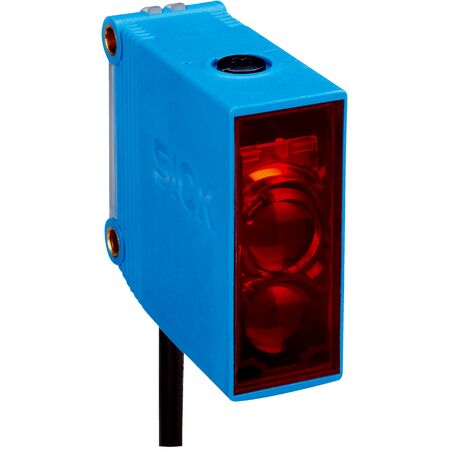

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 15m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor GL10-03812S02 features a dual lens system for precise object detection, with a sensing range of up to 15 meters. Designed for industrial automation, this sensor operates efficiently in harsh environments with an IP67 rating, ensuring reliability in manufacturing processes and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.08 m to 15 m depending on reflector
- Light source: PinPoint LED, wavelength 625 nm
- Adjustment: Potentiometer, 270°
- Supply voltage: 12 V DC to 30 V DC
- Current consumption: 40 mA
- Switching output: Relay, SPDT, electrically isolated
- Switching load max: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: 5-wire cable, 2 m length
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +70°C
- Relay switching cycles minimum: 100,000 cycles at 3 A
- EMC standards: EN 60947-5-2, EN 61000-6-3
- Certifications: EU, UK, ACMA, Moroccan conformity, China-RoHS, CCC, cULus, Photobiological safety
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.115 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 15 m depending on reflector
- Potentiometer adjustment with 270° rotation
- Relay output with SPDT electrically isolated switching
- High protection rating IP67 suitable for harsh environments
- Operating temperature range from -30°C to +60°C
- Includes mounting bracket and reflector
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes waste through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL10-03812S02 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
