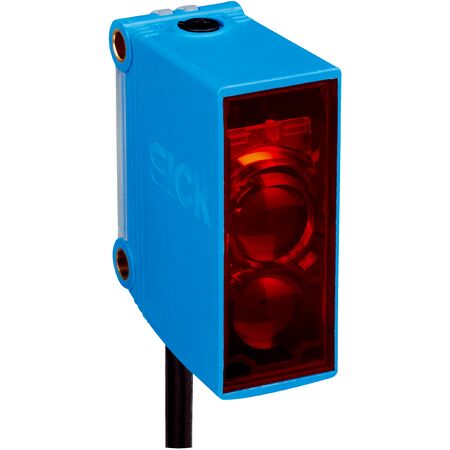

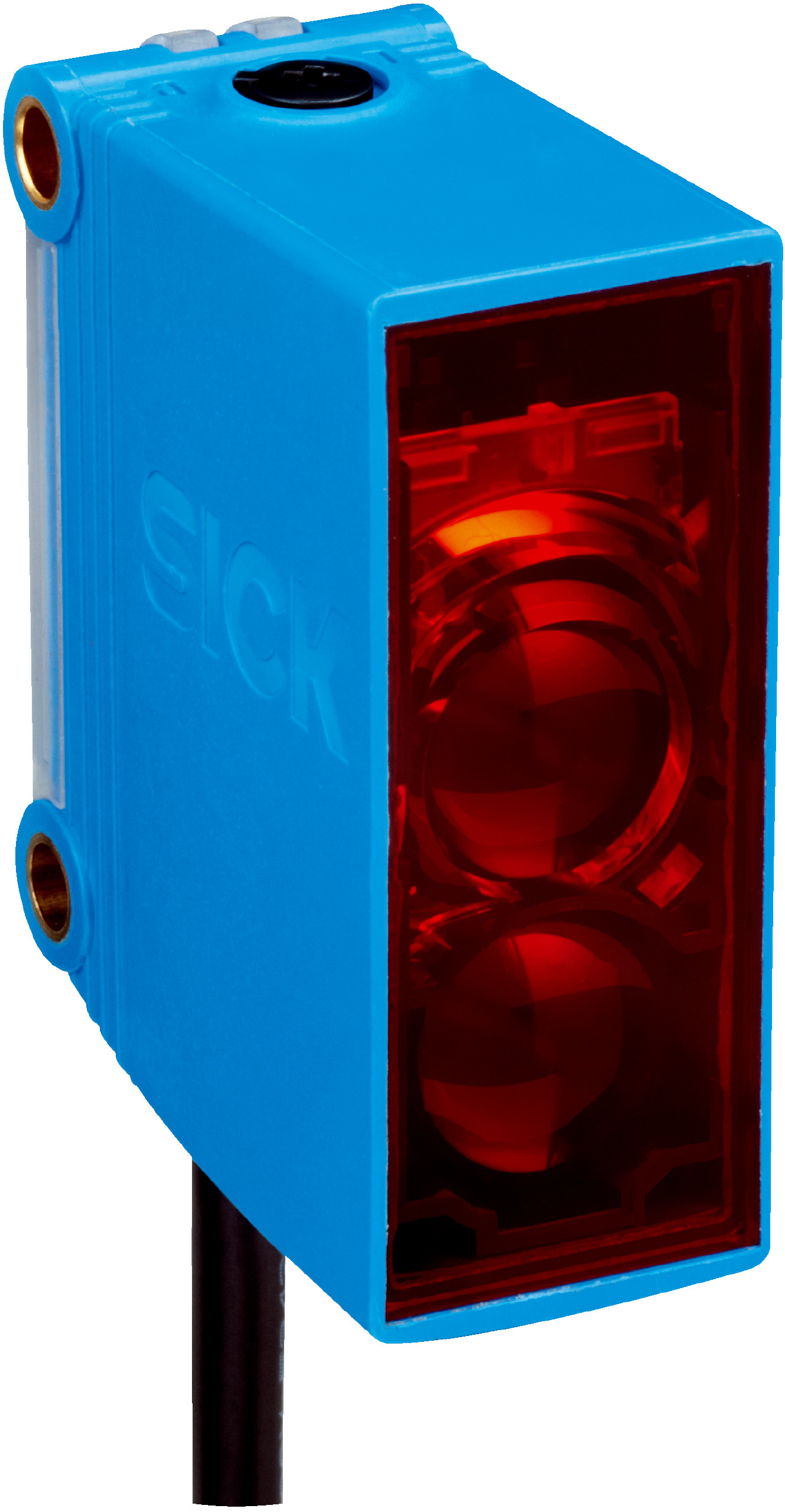

Photoelectric Retro-Reflective Sensor GL10-N1111 | Dual Lens System | IP67 Rated | 15m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor GL10-N1111 is designed for industrial automation, featuring a dual lens system for precise object detection up to 15 meters. With a selectable light/dark switching mode and a high switching frequency of 1,000 Hz, this sensor is perfect for safety and security systems, material handling, and packaging lines. Its durable IP67 rated enclosure ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.08 m to 15 m
- Type of light: Visible red light, wavelength 625 nm
- Light source: PinPoint LED
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: 3-wire cable, 2 m length
- Housing material: Plastic ABS/PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +70°C
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 15 meters
- Selectable light/dark switching mode
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Polarizing filter included
- Wide ambient operating temperature range from -30°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and security systems
- Material handling and conveyor systems
- Packaging and manufacturing lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GL10-N1111 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
