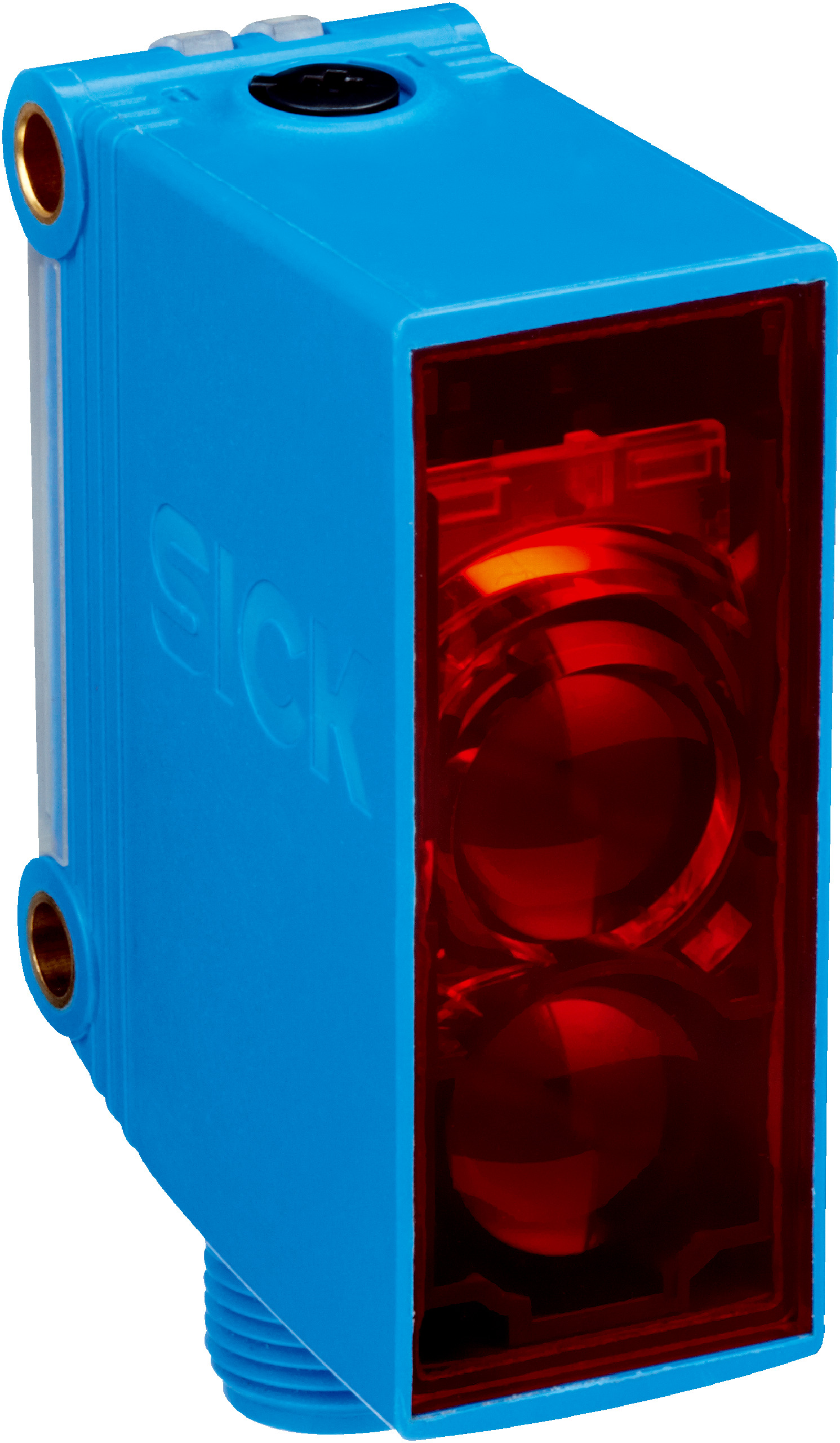

Photoelectric Retro-Reflective Sensor GL10-N4112 | Dual Lens System | IP67 Rated | 15m Sensing Range | by SICK
The GL10-N4112 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection up to 15 meters. With a robust IP67 rated housing and a selectable light/dark switching mode, this sensor is perfect for safety and security systems, material handling, and manufacturing process control. Its low power consumption and durable design ensure reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.08 m to 15 m
- Type of light: Visible red light, wavelength 625 nm
- Light source: PinPoint LED
- Light spot size at 5 m: Ø 58 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN transistor
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +70°C
- EMC standard: EN 60947-5-2
- Includes mounting bracket BEF-G10DC01 and reflector P250
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 15 meters
- Selectable light/dark switching mode
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Polarizing filter included to reduce false triggering
- Robust plastic housing made of ABS/PMMA
- Wide ambient operating temperature range from -30°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Safety and security systems
- Material handling and packaging lines
- Manufacturing process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GL10-N4112 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
