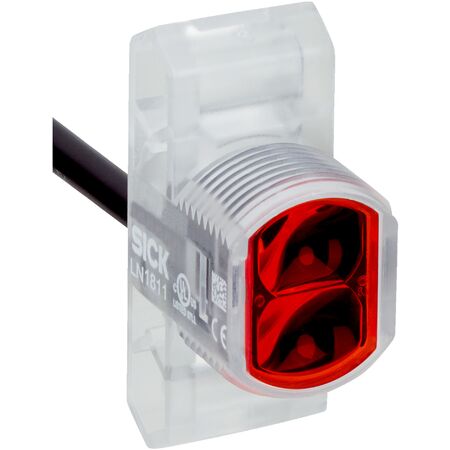

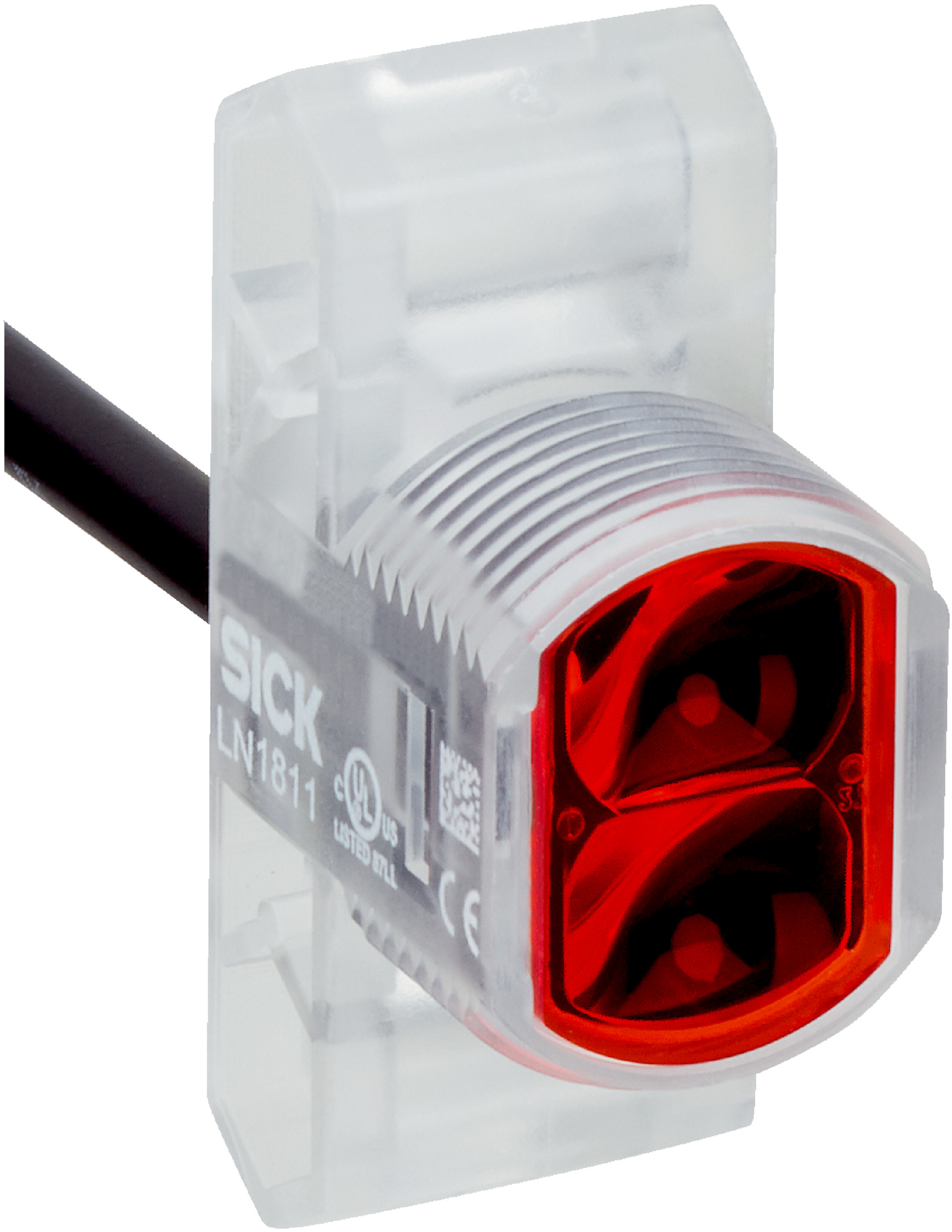

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 4.2m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-ANZAE8P10 features a dual lens system and a visible red LED light source, making it perfect for industrial automation and object detection. With a sensing range of up to 4.2 meters and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for manufacturing process control and safety monitoring, this sensor is designed for easy head or side mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 to 4.2 meters
- Light source: Visible red LED, 625 nm wavelength
- Housing material: Plastic ABS, transparent
- Thread diameter: M18
- Mounting system: M18, head/side mount
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: NPN, light switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable with RJ11 6-pin connector, 1 m length
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Weight: 3.63 g
- Dimensions (H x L x W): 34.8mm x 23mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Sensing range up to 4.2 meters
- Hybrid housing design with transparent ABS plastic
- M18 threaded housing for head or side mounting
- Includes mounting bracket and nut
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- NPN light switching output with max 100 mA output current
- Fast response time ≤ 500 µs and switching frequency up to 1,000 kHz
- Cable with RJ11 6-pin connector, 1 meter length
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Supports automation that can improve energy efficiency in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZLD18-ANZAE8P10 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
