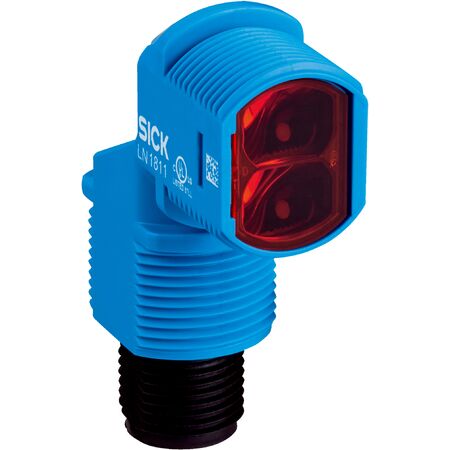

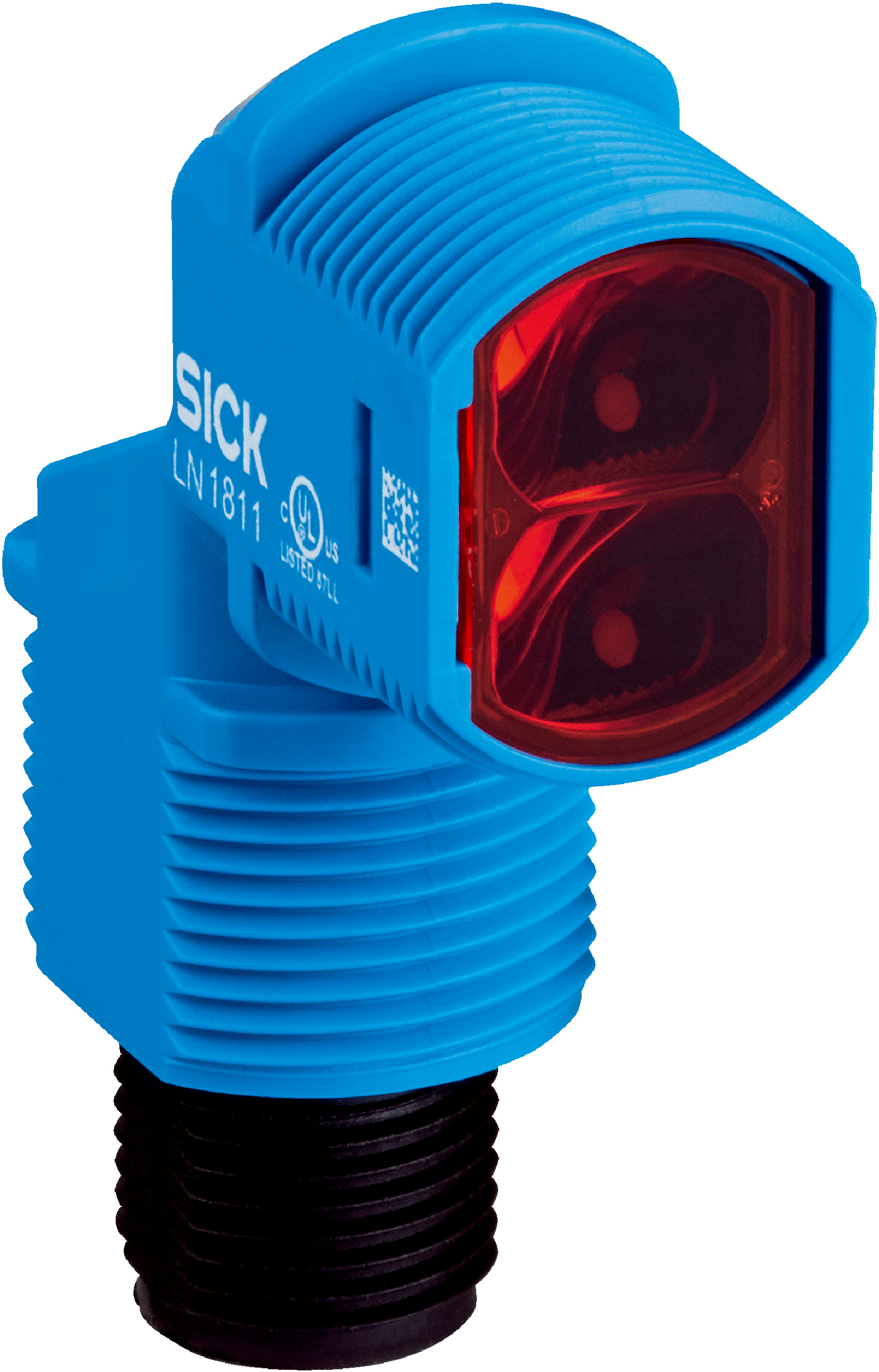

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 4.2m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection up to 4.2 meters. With a visible red LED light source and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for manufacturing process control and safety systems, this sensor operates efficiently within a temperature range of -40°C to +55°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 4.2 m
- Light source: Visible red LED, 625 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: NPN, dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Polarisation filter: Yes
- Dimensions (H x L x W): 44.2mm x 33.3mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Sensing range up to 4.2 meters
- Hybrid housing design with M18 thread diameter
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- NPN dark switching output with 100 mA max output current
- Fast response time of ≤ 500 µs and switching frequency up to 1,000 kHz
- Polarisation filter included to reduce false triggering
- Male M12 4-pin connector for easy connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor systems to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Supports sustainable industrial automation by improving process efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-4EZ4A8 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
