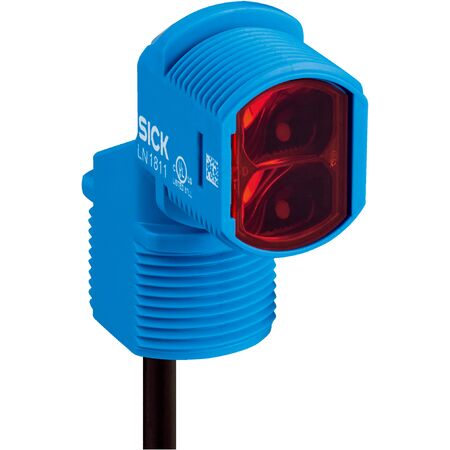

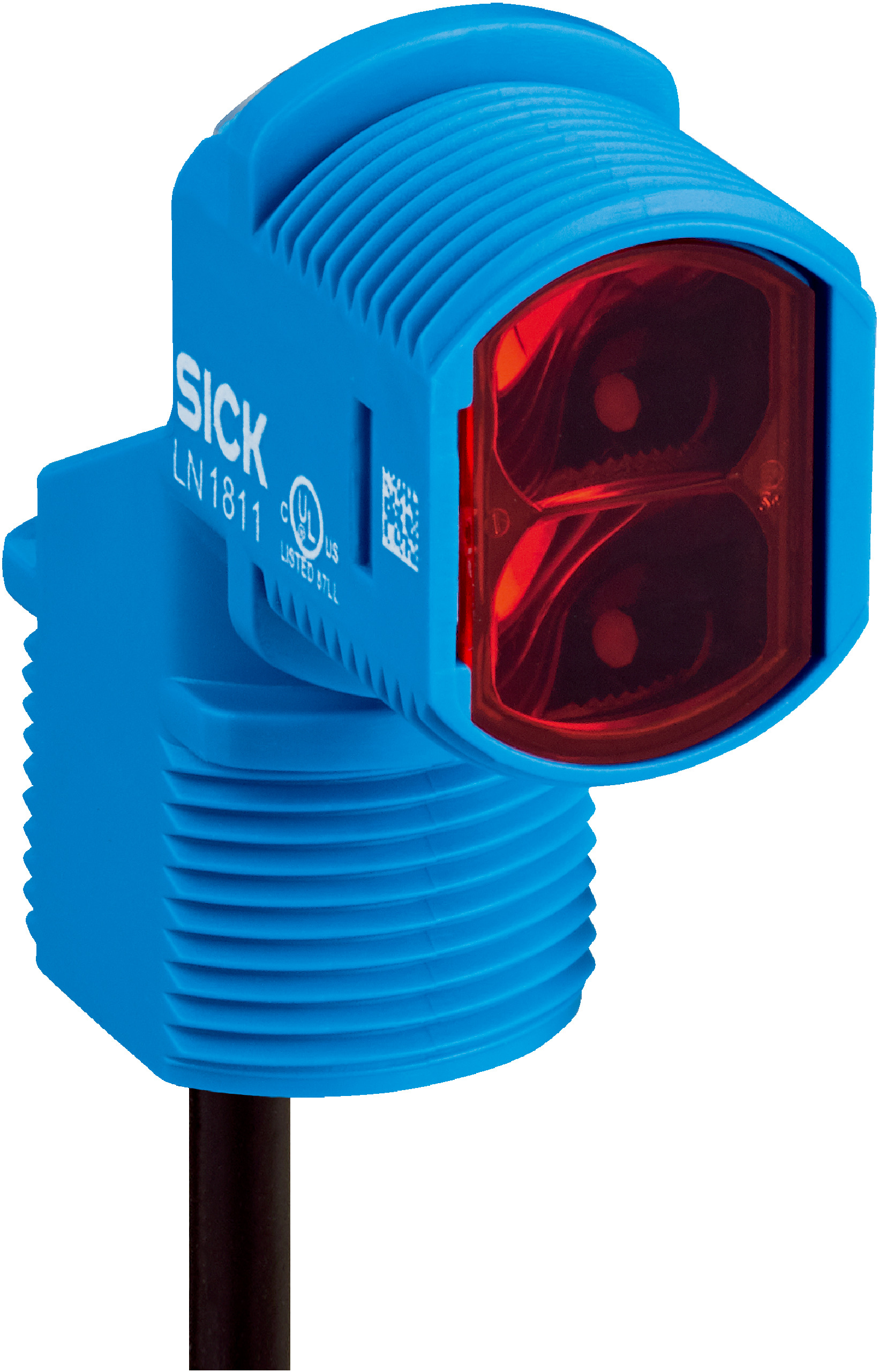

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 4.2m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-4NS1G8 features a dual lens system and a sensing range of up to 4.2 meters, making it ideal for industrial automation and manufacturing process control. With a visible red LED light source and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, providing both light and alarm switching outputs for enhanced safety and monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 4.2 m
- Light source: Visible red LED, wavelength 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: NPN, light switching and alarm output
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Cable open end, 4-wire, 2 m, PVC
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 42.9mm x 33.3mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Sensing range up to 4.2 meters
- Hybrid housing design with M18 thread diameter
- NPN switching output with light and alarm switching modes
- High switching frequency of 1,000 kHz and response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +55 °C
- Cable open end, 4-wire, 2 m length with plastic PVC material
- Polarisation filter and special device features included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Supports sustainable industrial automation by improving process efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZLD18-4NS1G8 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
