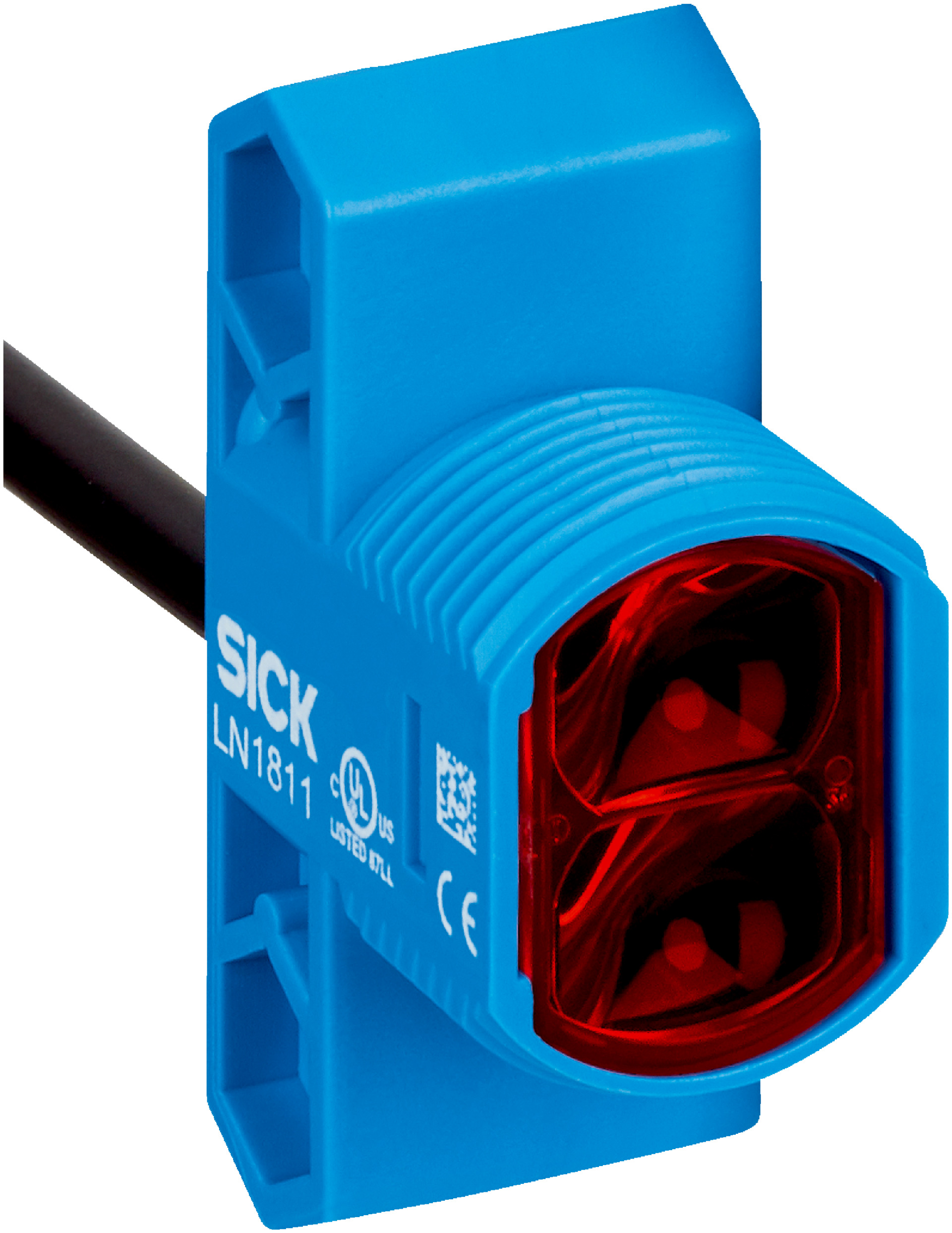

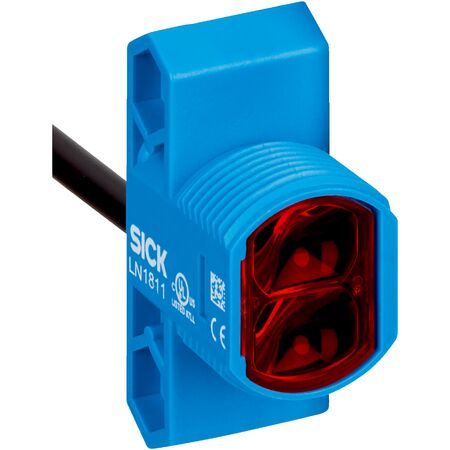

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 5m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-1FZC18 features a dual lens system for precise object detection, with a maximum sensing range of 5 meters. Designed for industrial automation, this sensor operates efficiently in temperatures from -40°C to +55°C and is IP67 rated for dust and water protection, making it ideal for manufacturing and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 4.2 m (max 5 m)
- Light source: Visible red LED, wavelength 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Terminal connection Wago 733-103, 3-pin, 800 mm cable
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Weight: 3.63 g
- Dimensions (H x L x W): 34.8mm x 23mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Maximum sensing range up to 5 meters
- Compact hybrid housing design with M18 thread diameter
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- Fast response time of ≤ 500 µs and switching frequency up to 1,000 kHz
- PNP dark switching output with maximum output current of 100 mA
- Terminal connection Wago 733-103, 3-pin, 800 mm cable length
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-1FZC18 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
