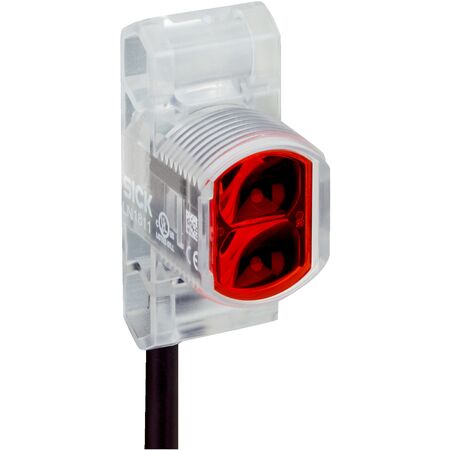

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 5m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-BFZCG8 features a dual lens system and a maximum sensing range of 5 meters, making it ideal for industrial automation and safety applications. With an IP67 rating for dust and water protection, this sensor operates efficiently in harsh environments, ensuring reliable object detection and monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 4.2 m (max 5 m)
- Light source: Visible red LED, wavelength 625 nm
- Housing design: Hybrid light emission, transparent ABS plastic
- Thread diameter: M18
- Mounting system: M18, head/side mount (24.1 to 25.4 mm)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Terminal connection Wago 733-103, 3-pin, 2 m cable
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 4.54 g
- Polarisation filter: Yes
- Dimensions (H x L x W): 35mm x 22mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Maximum sensing range up to 5 meters
- M18 threaded housing with hybrid light emission design
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- Dark switching PNP output with up to 100 mA output current
- Fast response time of ≤ 500 µs and switching frequency of 1,000 kHz
- Terminal connection Wago 733-103, 3-pin, 2 m cable included
- Polarisation filter included to reduce interference
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-BFZCG8 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
