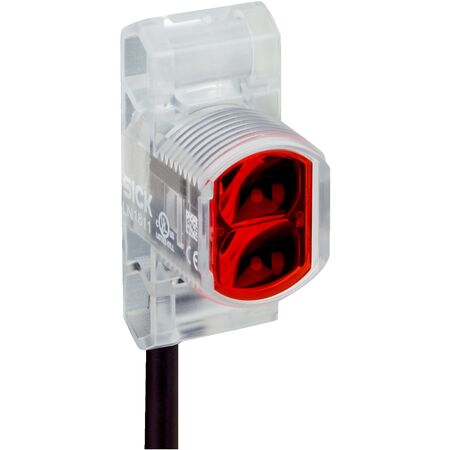

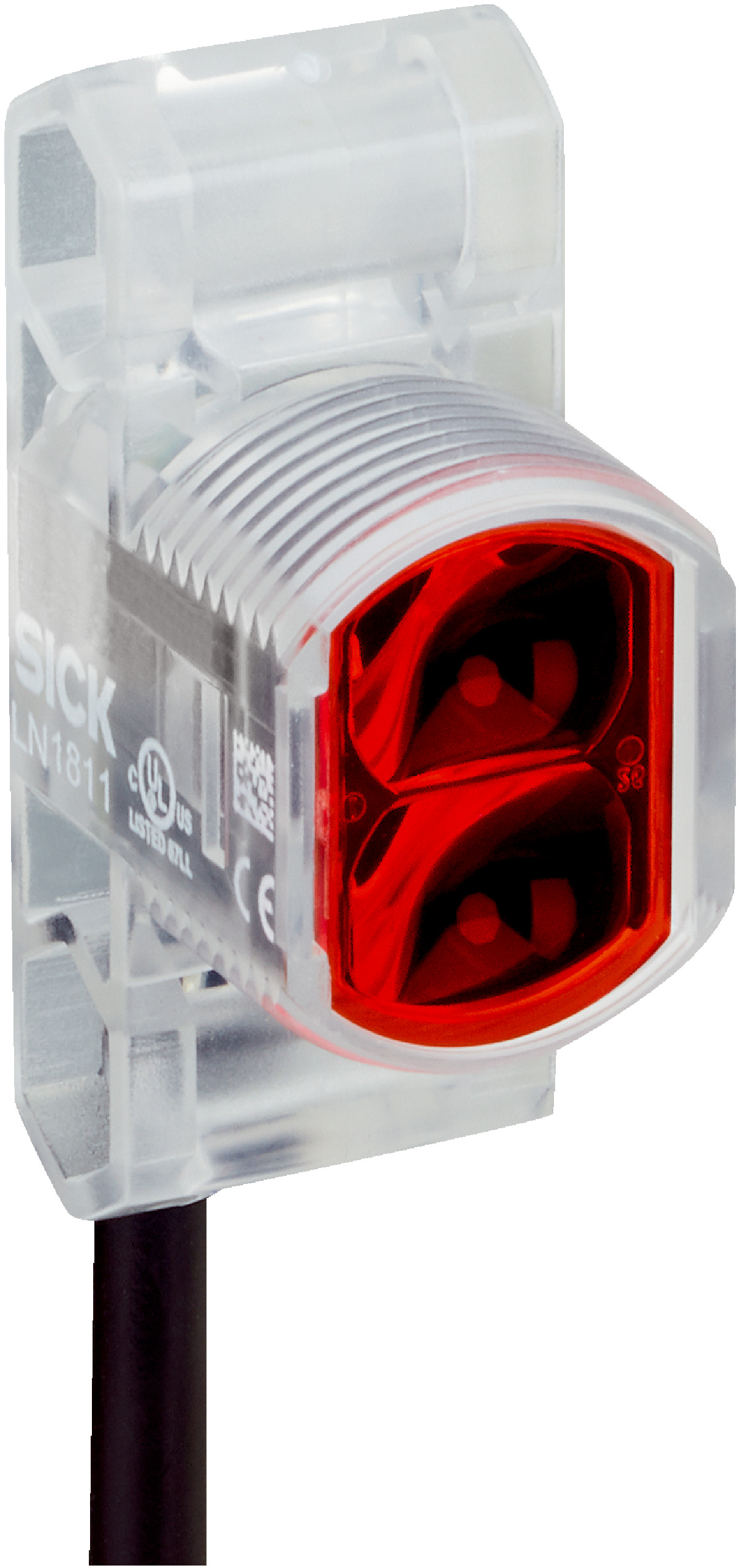

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 5m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor with a dual lens system is designed for precise object detection in industrial automation. With a maximum sensing range of 5 meters and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for manufacturing process control and safety monitoring, this sensor operates efficiently with a visible red LED light source and fast response time.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 4.2 m (max 5 m)
- Light source: Visible red LED, 625 nm wavelength
- Housing design: Hybrid transparent plastic (ABS) with PMMA optics
- Mounting: M18 thread diameter, head/side mount
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Terminal connection Wago 733-104, 4-pin, 2 m cable
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 4.54 g
- Dimensions (H x L x W): 35mm x 22mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Maximum sensing range up to 5 meters
- Hybrid housing design with transparent color
- M18 thread diameter for head/side mounting
- IP67 rated enclosure for dust and water protection
- Dark switching PNP output with up to 100 mA output current
- Fast response time of ≤ 500 µs and switching frequency of 1,000 kHz
- Polarisation filter included
- Operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-BFZDG8P32 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
