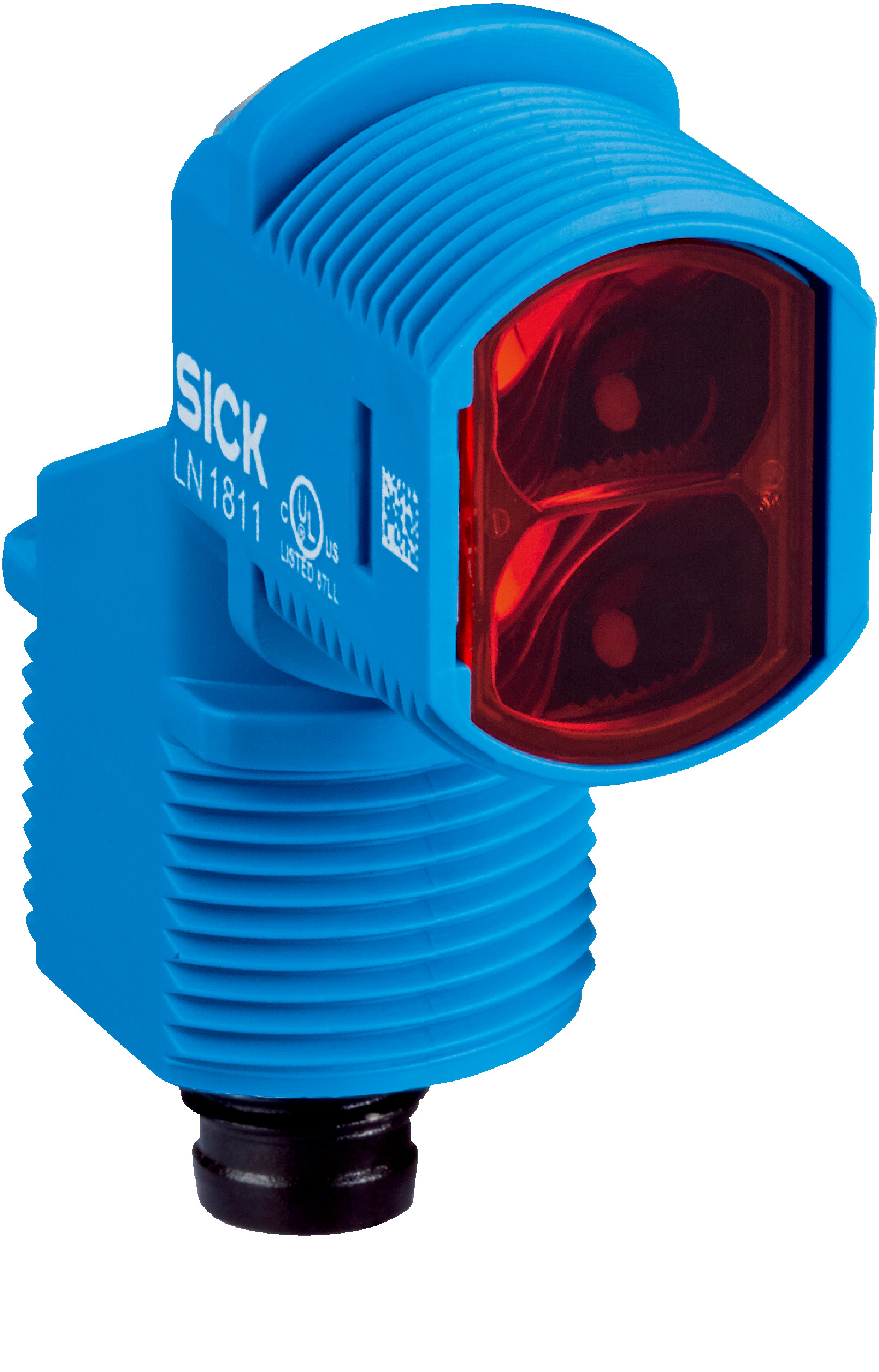

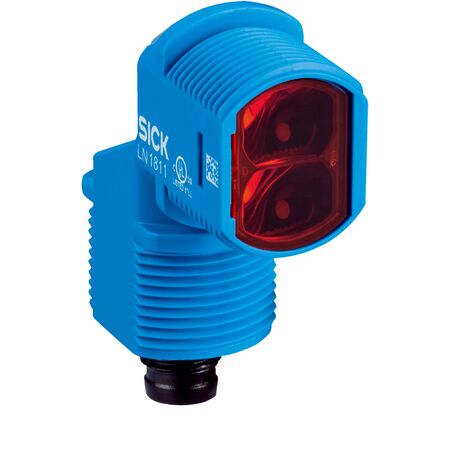

Photoelectric Retro-Reflective Sensor ZLD18-4PZ3A8 | IP67 Rated | Dual Lens System | 5m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-4PZ3A8 is designed for industrial automation, featuring a dual lens system for precise object detection up to 5 meters. With an IP67 rating for dust and water protection, this sensor operates efficiently in harsh environments, making it ideal for manufacturing process control and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 4.2 m (max 5 m)
- Light source: Visible red LED, wavelength 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Male connector M8, 4-pin
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Weight: 4.54 g
- Dimensions (H x L x W): 40.8mm x 33.3mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Maximum sensing range up to 5 meters
- Compact hybrid housing design with M18 thread diameter
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- Fast response time of ≤ 500 µs and switching frequency of 1,000 kHz
- PNP light switching output with maximum output current of 100 mA
- Polarisation filter and special device features included
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Safety and security systems
- Manufacturing process control
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-4PZ3A8 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety system applications.
