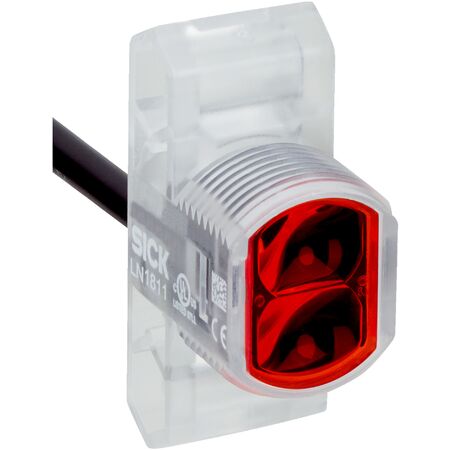

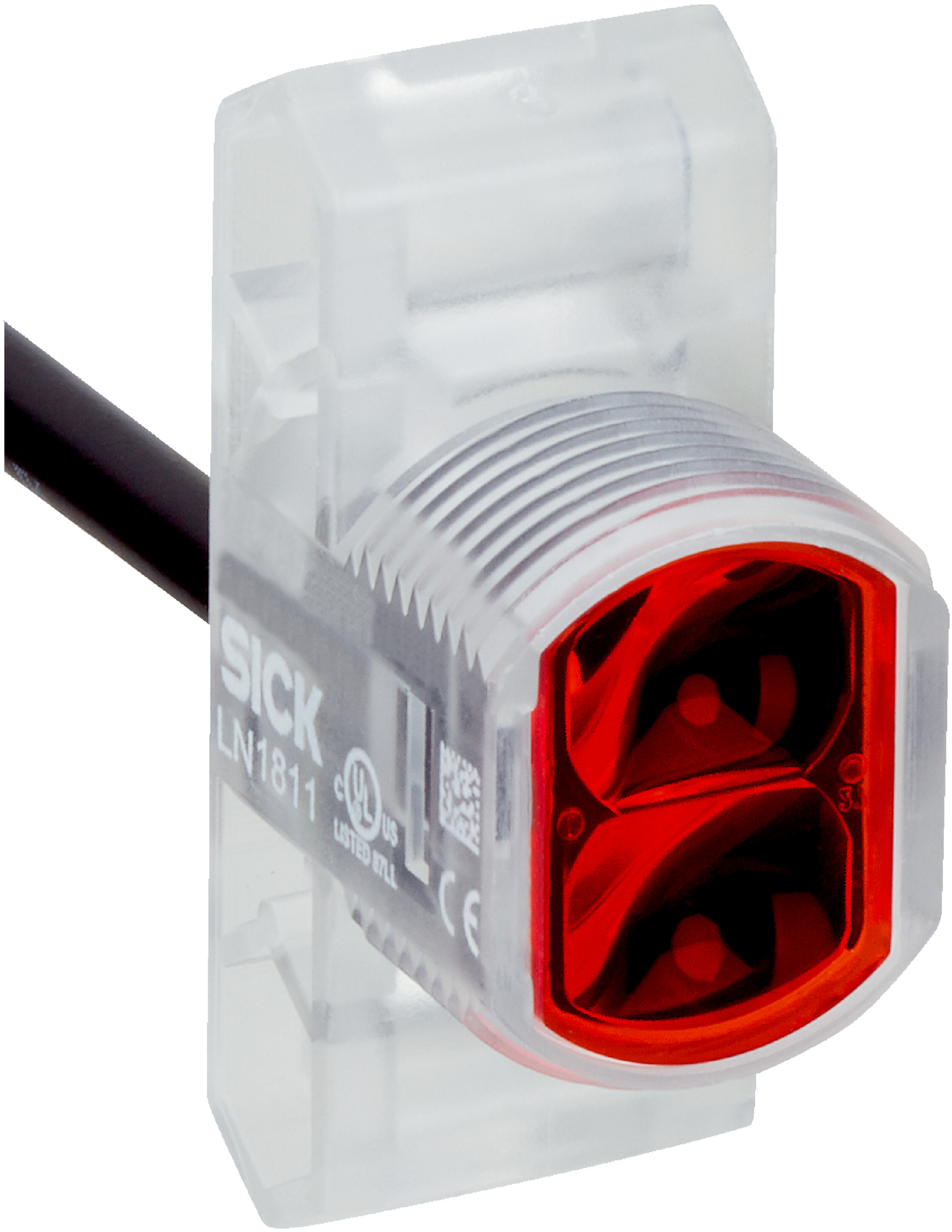

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 5m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-ANZ4B8 features a dual lens system for precise object detection, with a maximum sensing range of 5 meters. Designed for industrial automation, this sensor operates efficiently in temperatures from -40 °C to +55 °C and is housed in a compact, IP67-rated enclosure, ensuring durability in challenging environments. Ideal for manufacturing process control and safety systems, it offers fast response times and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 4.2 m (max 5 m)
- Light source: Visible red LED, wavelength 625 nm
- Housing design: Hybrid with transparent color
- Thread diameter: M18
- Mounting system: M18, head/side (24.1 to 25.4 mm)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: NPN, light switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Cable with M12 male connector, 4-pin, 150 mm
- Cable material: Plastic, PVC
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Weight: 3.63 g
- Dimensions (H x L x W): 34.8mm x 23mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Maximum sensing range up to 5 meters
- Compact hybrid housing design with M18 thread diameter
- IP67 rated enclosure for dust and water protection
- Polarisation filter included to reduce false triggering
- Fast response time of ≤ 500 µs and switching frequency up to 1,000 kHz
- NPN light switching output with max output current of 100 mA
- Wide operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems requiring precise sensing
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Supports sustainable industrial automation by improving process efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-ANZ4B8 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
