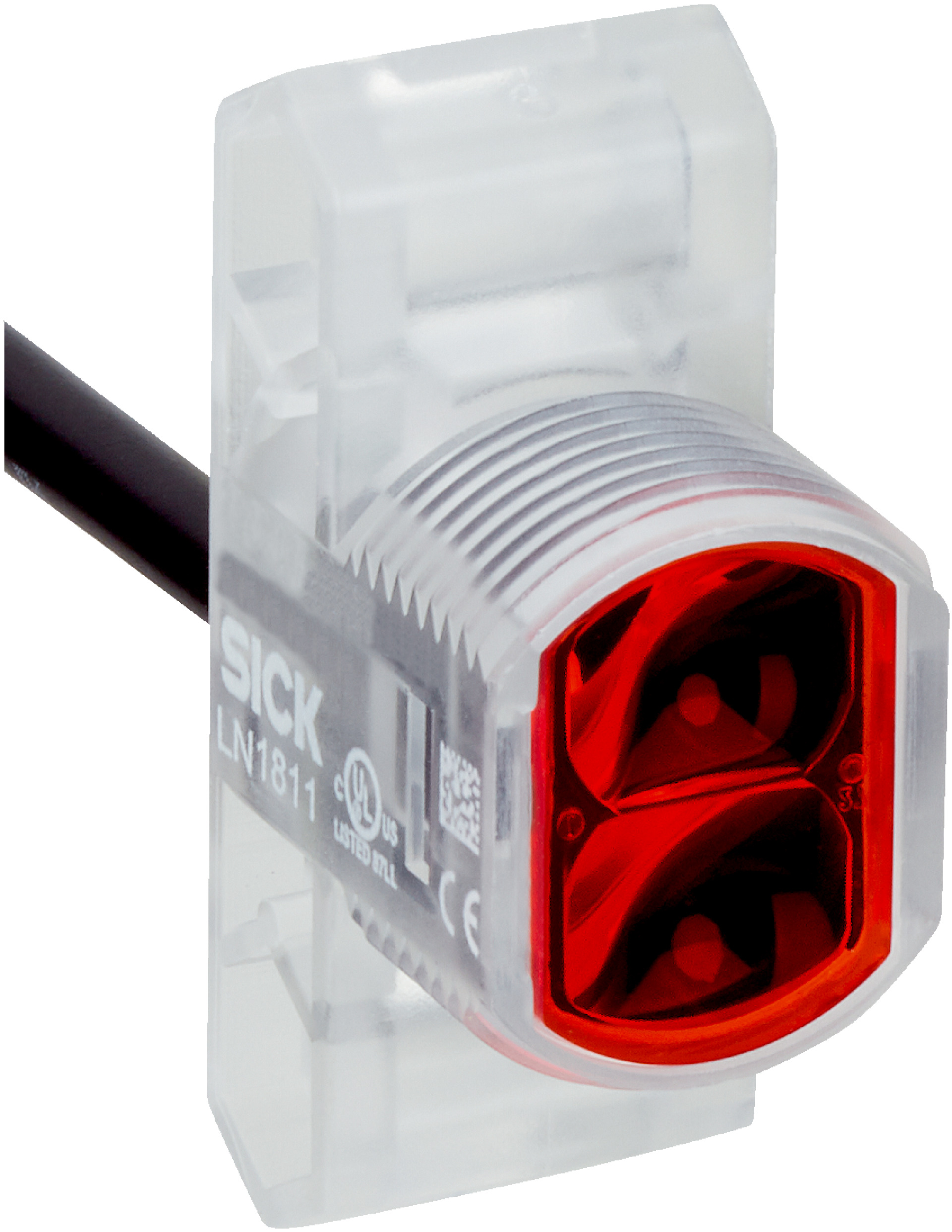

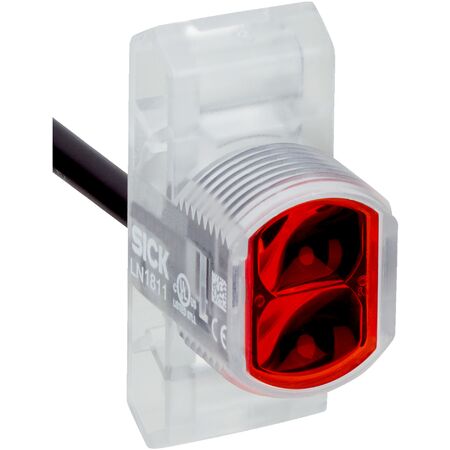

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 5m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-ANZAF8P10 features a dual lens system for precise object detection, with a maximum sensing range of 5 meters. Designed for industrial automation and manufacturing process control, this sensor operates efficiently in temperatures from -40°C to +55°C and is housed in a durable IP67 enclosure, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 to 4.2 meters (max 5 meters)
- Light source: Visible red LED, wavelength 625 nm
- Housing: Plastic ABS with transparent color, M18 thread diameter
- Supply voltage: 10 V DC to 30 V DC with ripple < 10%
- Current consumption: ≤ 15 mA
- Switching output: NPN, light switching mode, max output current 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable with RJ11 6-pin connector, 1.5 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Weight: 3.63 g
- Dimensions (H x L x W): 35mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Maximum sensing range up to 5 meters
- Hybrid housing design with transparent color
- M18 threaded housing for head/side mounting
- Includes mounting bracket and nut
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- NPN light switching output with max 100 mA output current
- Fast response time ≤ 500 µs and switching frequency up to 1,000 kHz
- Cable with RJ11 6-pin connector, 1.5 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor device standards to ensure proper mounting, wiring, and compliance with safety regulations.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ZLD18-ANZAF8P10 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
