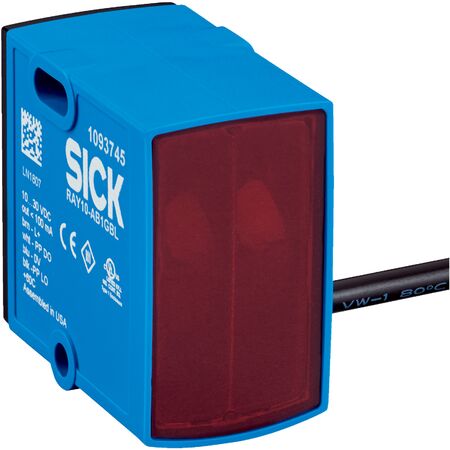

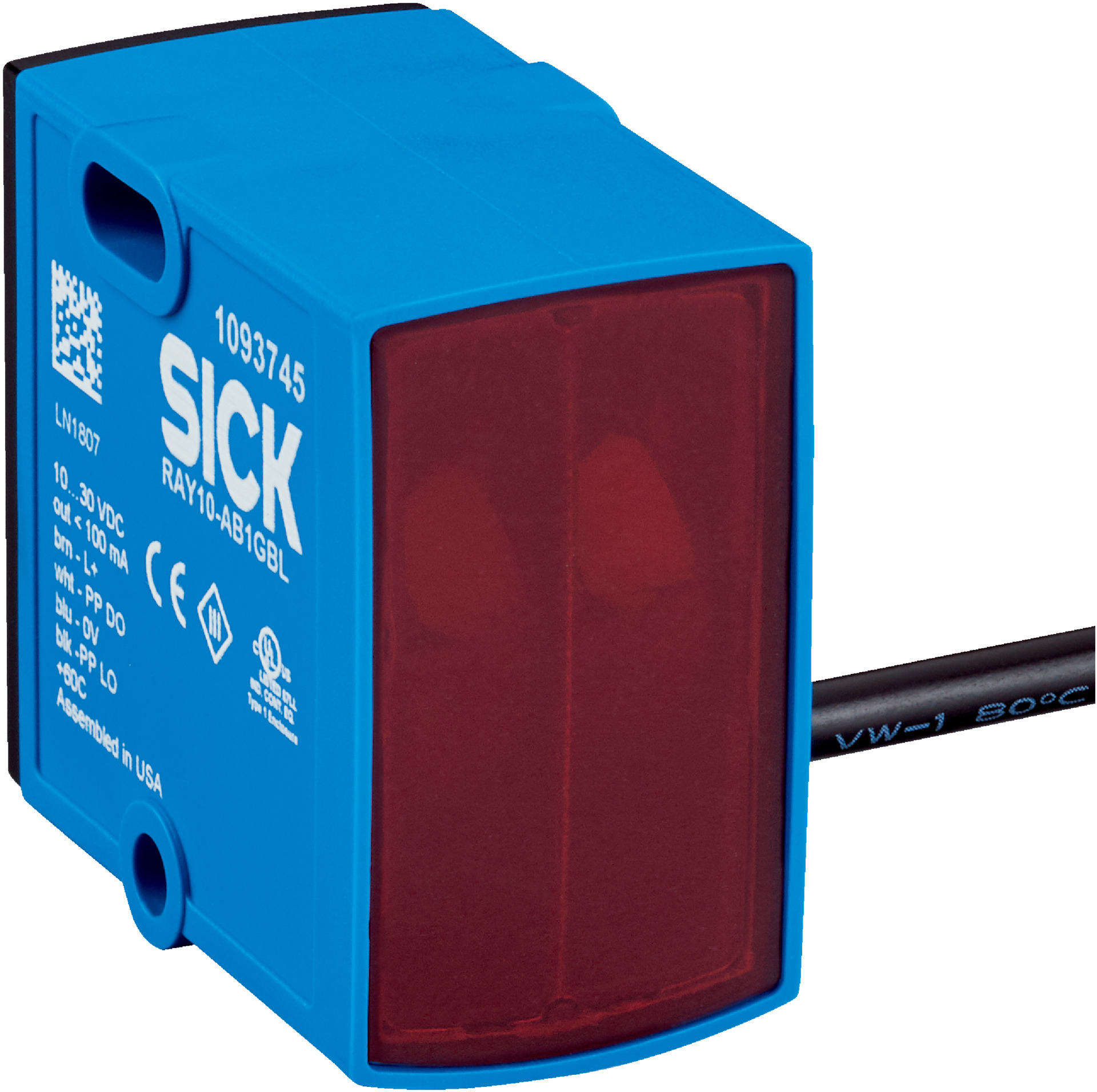

Photoelectric Retro-Reflective Sensor RAY10-AB5CBL | Dual Lens System | IP67 Rated | 5mm Minimum Object Size | by SICK
The Photoelectric Retro-Reflective Sensor RAY10-AB5CBL features a dual lens system for precise object detection, with a minimum object size of just 5 mm and a sensing range of up to 1.5 m. Ideal for industrial automation, this sensor operates efficiently in temperatures from -40°C to +60°C and is IP67 rated for dust and water protection, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Minimum object size: 5 mm
- Detection height: 25 mm
- Sensing range max.: 0 to 1.5 m
- Distance to reflector: 0.3 m to 1.5 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: Push-pull PNP/NPN
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Cable with male M8, 4-pin connector, 300 mm length
- Cable material: Plastic PVC, diameter 3.6 mm
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 36mm x 38mm x 22mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Minimum object size detection of 5 mm
- Sensing range up to 1.5 m
- Visible red light with 635 nm wavelength
- Potentiometer adjustment
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +60°C
- Push-pull PNP/NPN switching output with light/dark switching mode
- Response time ≤ 0.5 ms and switching frequency up to 1000 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Detecting transparent, perforated, uneven, shiny, and flat objects
- Position-independent detection within light array
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
