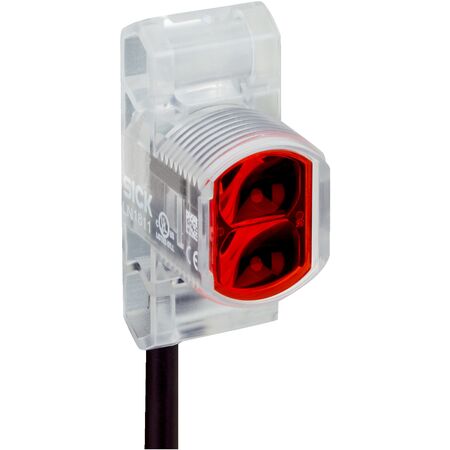

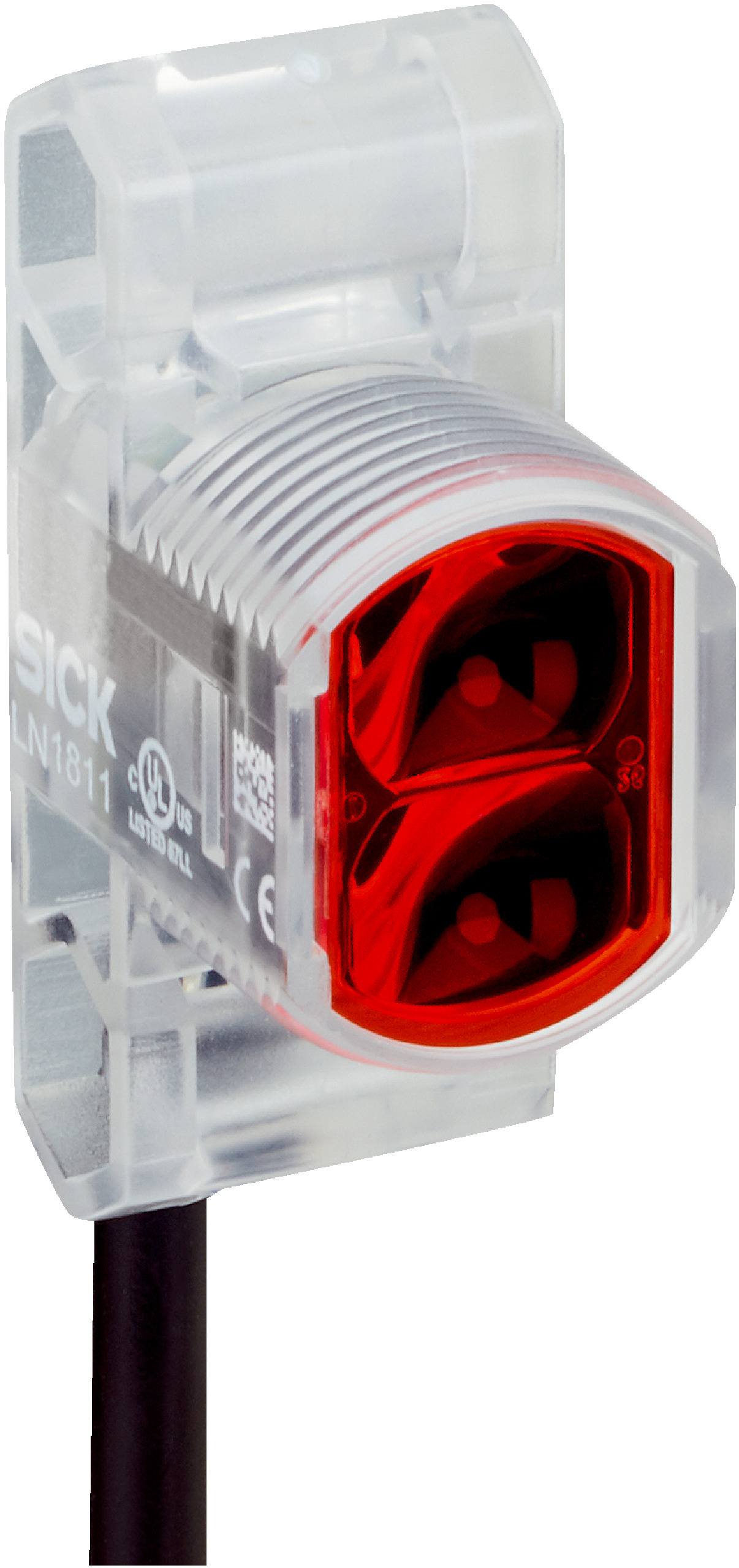

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 6.8m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-BHZ3E2 features a dual lens system for precise object detection up to 6.8 meters. With a fast response time of ≤ 500 µs and an IP67 rated enclosure, it's perfect for industrial automation and manufacturing process control. Designed for reliable performance in harsh environments, this sensor is ideal for safety and monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 6.8 m
- Light source: PinPoint LED, visible red light, wavelength 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable with M8 male connector, 4-pin, 1 m length
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Weight: 4.54 g
- Dimensions (H x L x W): 35mm x 22mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 6.8 meters
- Hybrid housing design with transparent color
- M18 mounting system for head or side installation
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- Fast response time of ≤ 500 µs and switching frequency of 1,000 kHz
- PNP switching output with max output current of 100 mA
- Cable connection with M8 male connector, 4-pin, 1 meter length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZLD18-BHZ3E2 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
