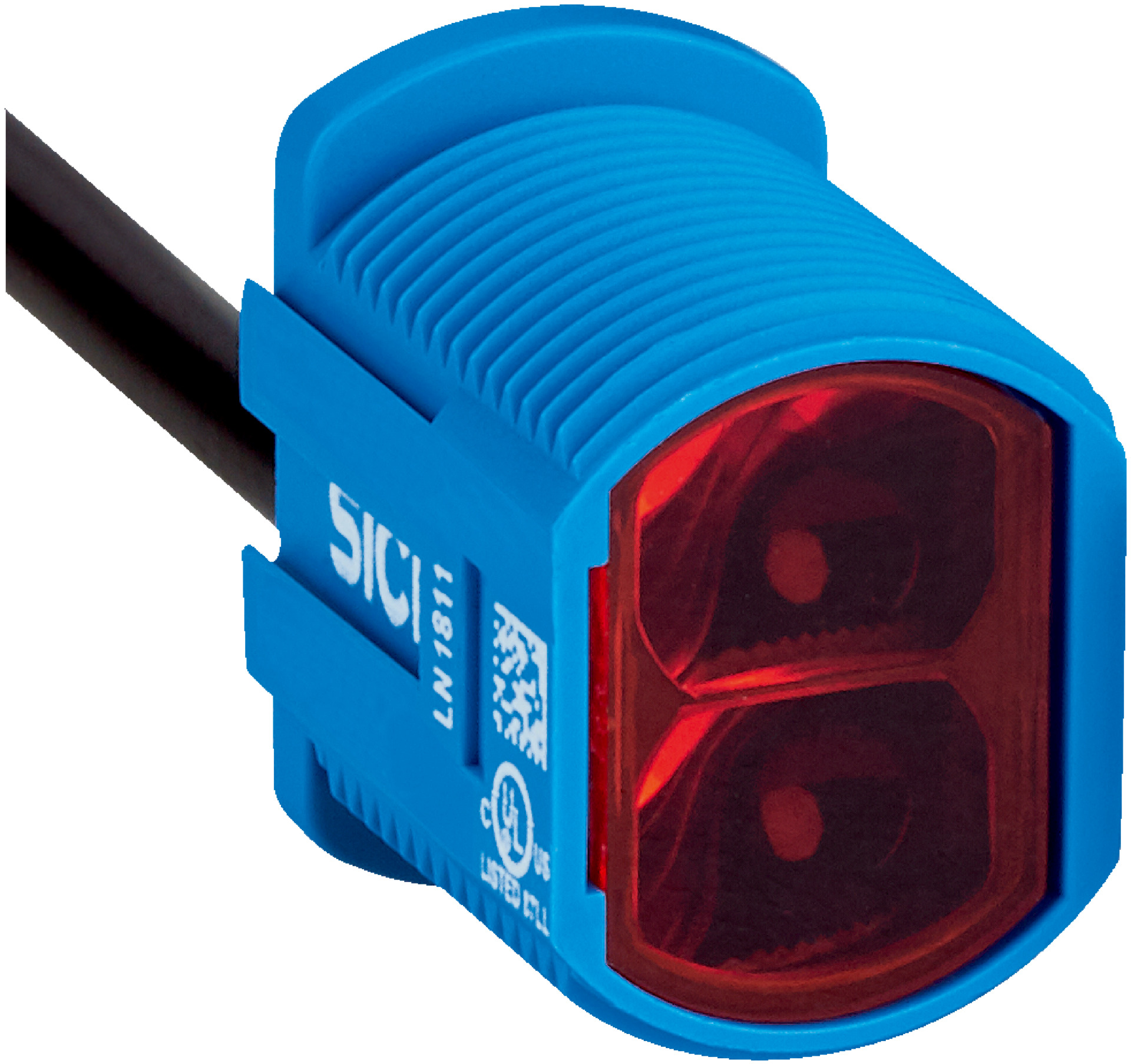

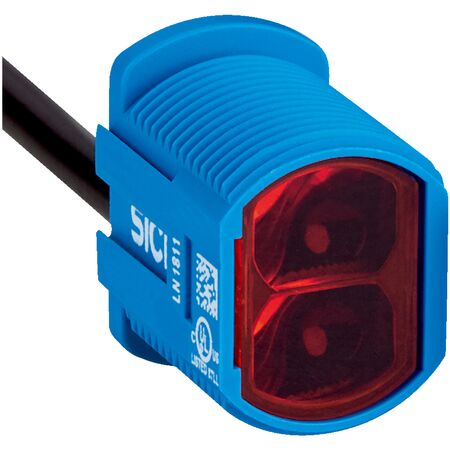

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 6.8m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-9AB4B2 features a dual lens system for precise object detection, with a sensing range of up to 6.8 meters. Designed for industrial automation, this sensor operates efficiently in temperatures from -40 °C to +55 °C and is IP67 rated for dust and water protection, making it ideal for manufacturing and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 6.8 m (max 7.8 m)
- Light source: Visible red PinPoint LED, wavelength 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN, light and dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 2.49 g
- Dimensions (H x L x W): 20.5mm x 23mm x 14.4mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light PinPoint LED with 625 nm wavelength
- Sensing range up to 6.8 m (max 7.8 m)
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 1,000 kHz and response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +55 °C
- Cable with M12 male connector, 4-pin, 150 mm length
- Polarisation filter included for improved detection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-9AB4B2 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
