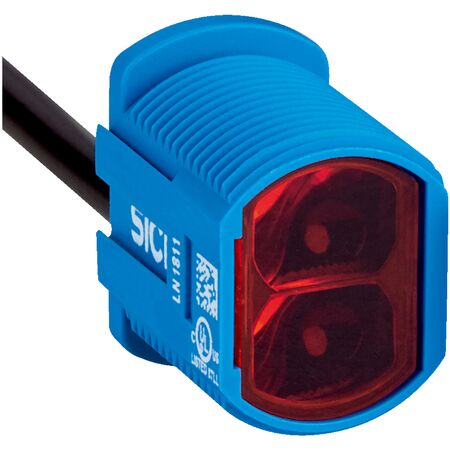

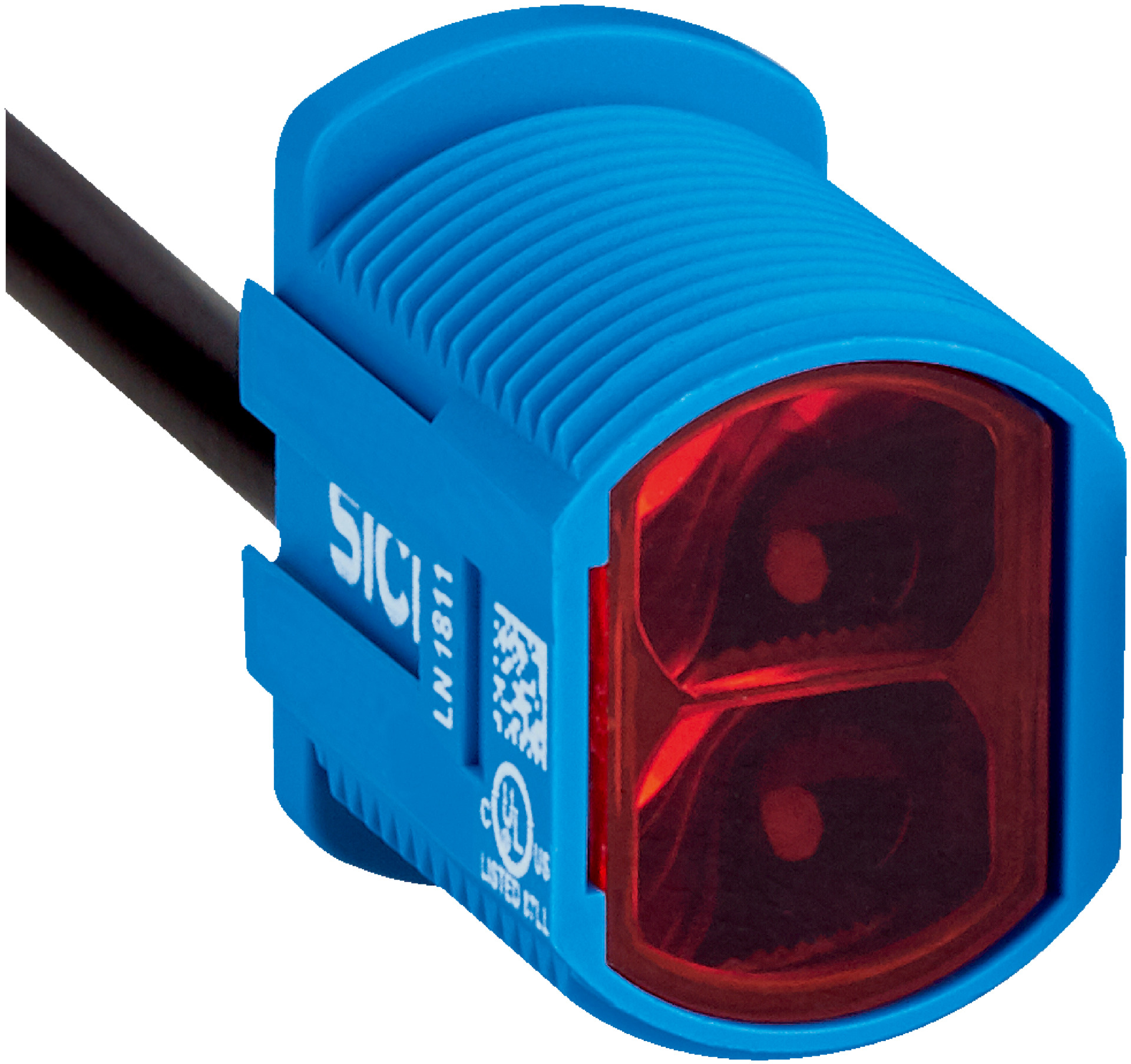

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 6.8m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-9AB5B2 features a dual lens system for precise object detection, with a sensing range of up to 6.8 meters. Designed for industrial automation, this sensor operates efficiently in temperatures from -40 °C to +55 °C and boasts a robust IP67 rated housing, making it ideal for manufacturing process control and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 6.8 m (max 7.8 m)
- Light source: PinPoint LED, visible red light, 625 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN, light and dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable with male M8 4-pin connector, 150 mm length
- Housing material: Plastic ABS, optics material PMMA
- Protection class: III, Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Weight: 2.49 g
- Dimensions (H x L x W): 20.5mm x 23mm x 14.4mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light PinPoint LED with 625 nm wavelength
- Sensing range up to 6.8 m, max 7.8 m
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 1,000 kHz and response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating
- Operating temperature range from -40 °C to +55 °C
- Cable with male M8 4-pin connector, 150 mm length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems requiring precise sensing
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-9AB5B2 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
