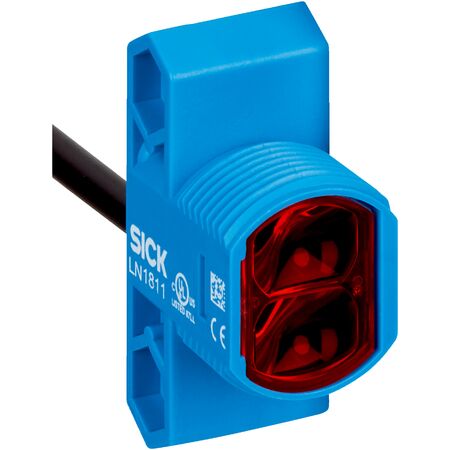

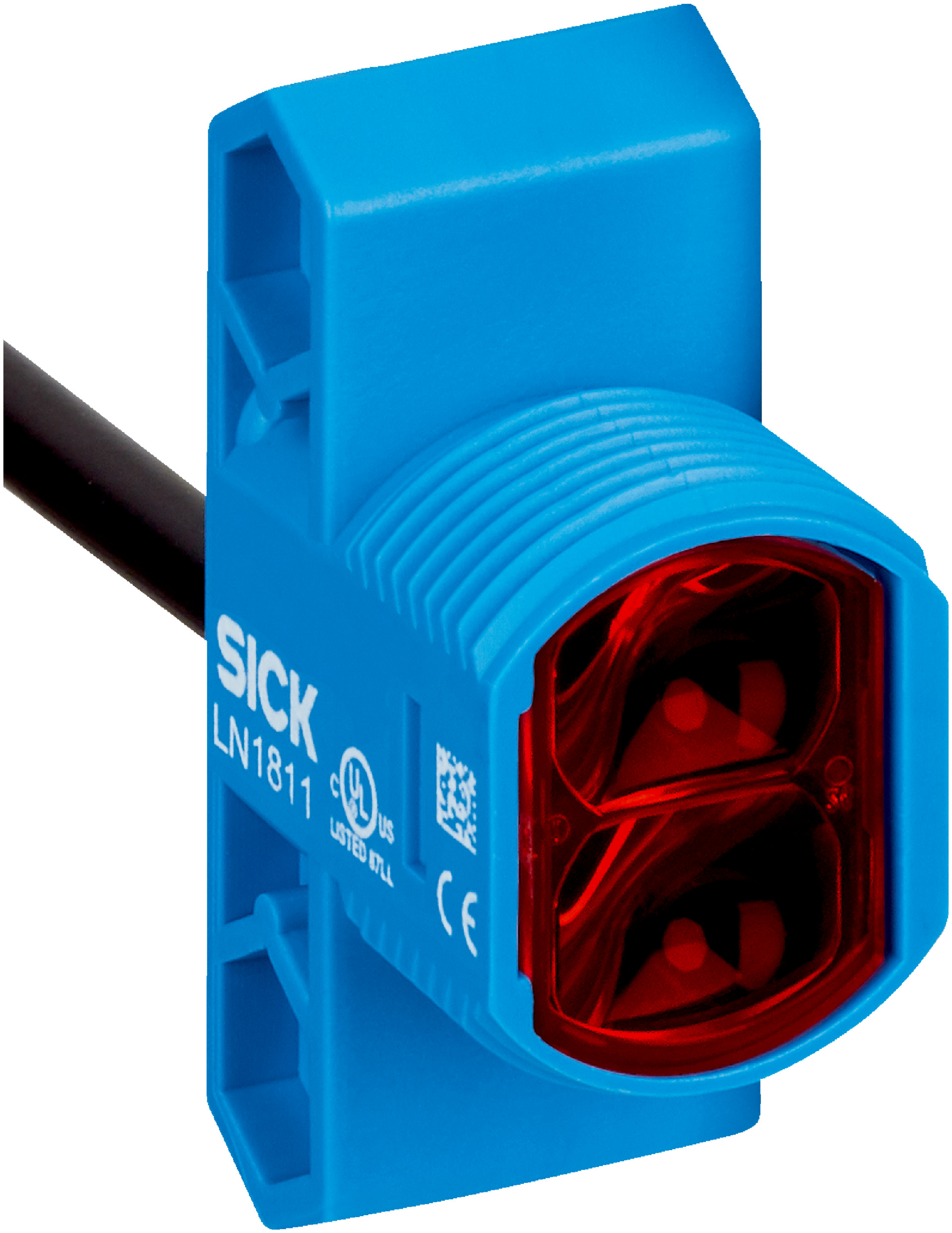

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | Sensing Range Up to 6.8m | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-1PZ4B2 features a dual lens system and a sensing range of up to 6.8 meters, making it ideal for industrial automation and safety detection. With a robust IP67 rated enclosure and a visible red light PinPoint LED source, this sensor ensures reliable performance in challenging environments, perfect for manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 6.8 m
- Light source: PinPoint LED, visible red light at 625 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Weight: 3.63 g
- Dimensions (H x L x W): 35mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED source
- Sensing range up to 6.8 meters
- Hybrid housing design with blue color
- M18 mounting system for head or side installation
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- Cable with M12 male connector, 4-pin, 150 mm length
- Polarisation filter included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-1PZ4B2 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
