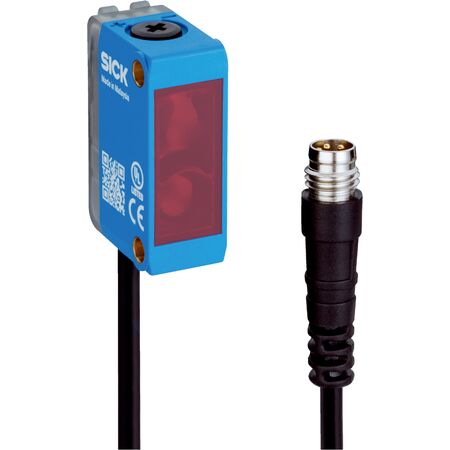

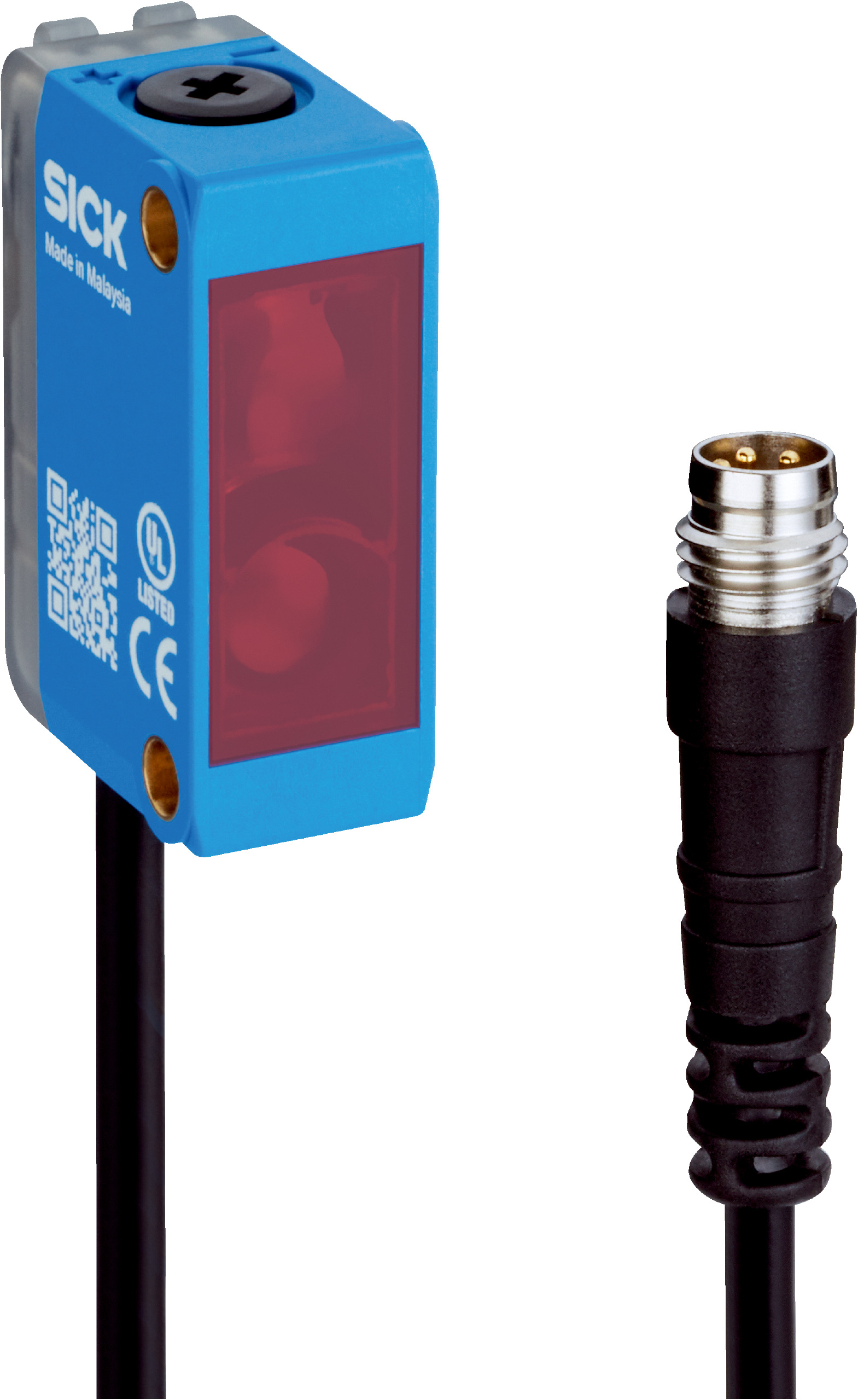

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 640 nm LED | by SICK
The Photoelectric Retro-Reflective Sensor GLD6SP-32A1217EZZZ features a dual lens system and a sensing range of 0.03 m to 6 m, making it ideal for industrial automation and safety applications. With a robust IP67 rating and a short response time of ≤ 625 µs, this sensor ensures reliable object detection in harsh environments, perfect for manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Output type: 1 PNP digital output, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- LED wavelength: 640 nm
- Housing material: Plastic ABS
- Cable: 4-pin M8 male connector, 337 mm length
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0.03 m to 6 m with recommended range 0.25 m to 1.6 m
- PinPoint LED visible red light with 640 nm wavelength
- Polarisation filter included
- LED indicators for power and object detection status
- Robust plastic ABS housing with IP67 rating for harsh environments
- Operating temperature range from -30 °C to +55 °C
- Short response time of ≤ 625 µs and switching frequency up to 1,000 Hz
- Protection against reverse polarity, overcurrent, and short-circuit
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GLD6SP-32A1217EZZZ photoelectric retro-reflective sensor is available for immediate purchase, ideal for industrial automation and safety applications.
