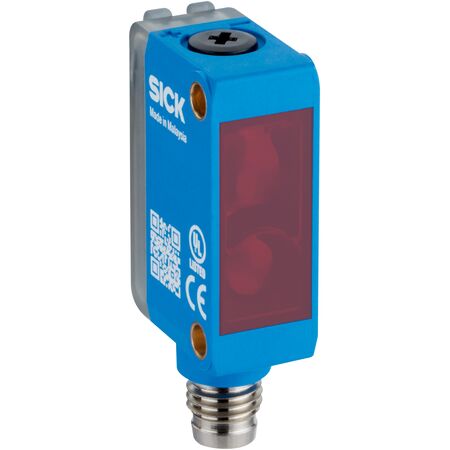

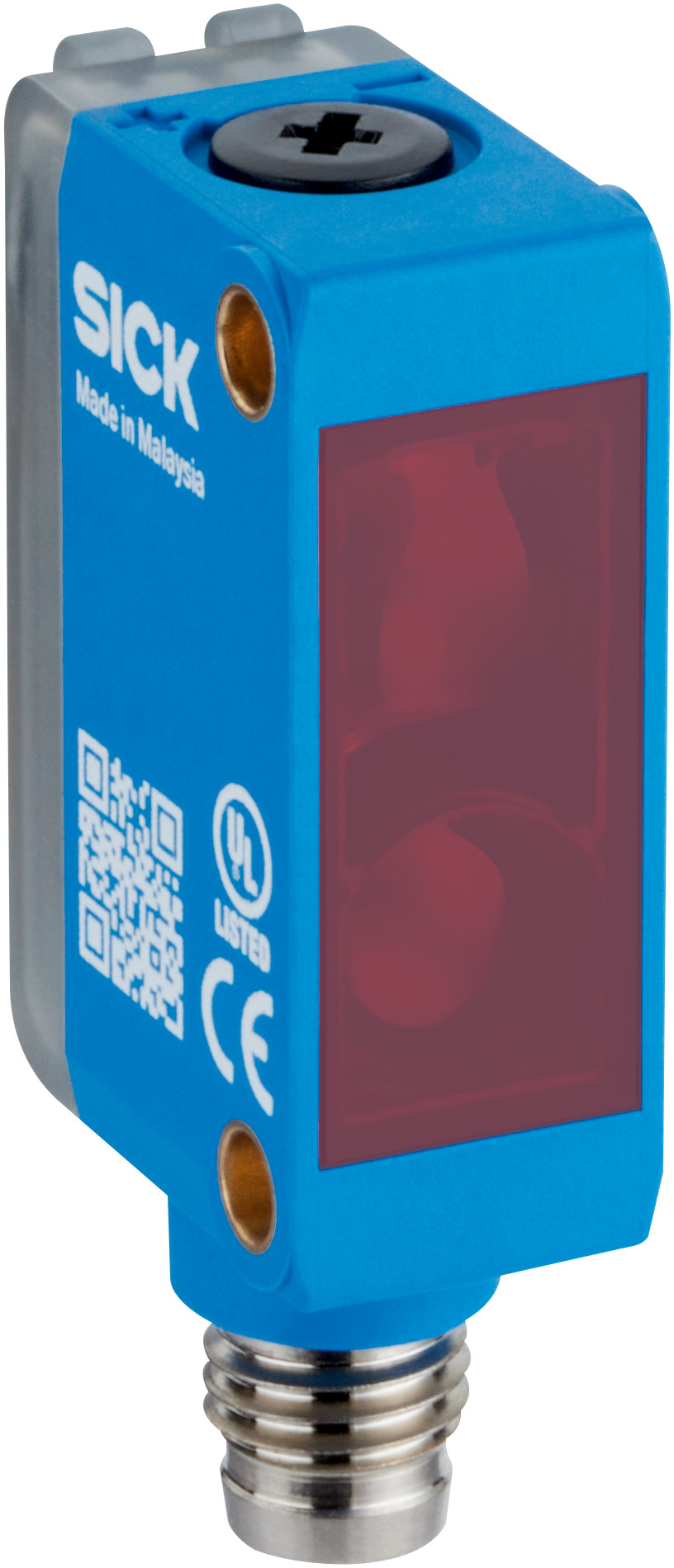

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | 640 nm LED | by SICK
The SICK GLD6SP-22A1217EZZZ photoelectric retro-reflective sensor features a dual lens system and a sensing range from 0.03 m to 6 m, making it ideal for industrial automation and safety applications. With an IP67 rating and robust ABS housing, it withstands harsh environments while providing reliable object detection and presence sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: 1 PNP digital output, light switching
- Output current max: ≤ 100 mA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- LED wavelength: 640 nm
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Housing material: Plastic ABS
- Connector: Male M8, 4-pin
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0.03 m to 6 m with recommended range 0.25 m to 1.6 m
- PinPoint LED visible red light with 640 nm wavelength
- Polarisation filter included to reduce false triggers
- LED indicators for power and object detection status
- Robust plastic ABS housing with IP67 rating for harsh environments
- Operating temperature range from -30 °C to +55 °C
- High shock and vibration resistance
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Switching frequency up to 1000 Hz with response time ≤ 625 µs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GLD6SP-22A1217EZZZ photoelectric retro-reflective sensor is available for immediate purchase, ideal for industrial automation and safety applications.
