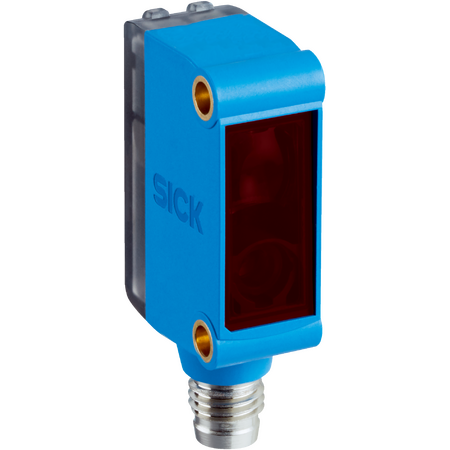

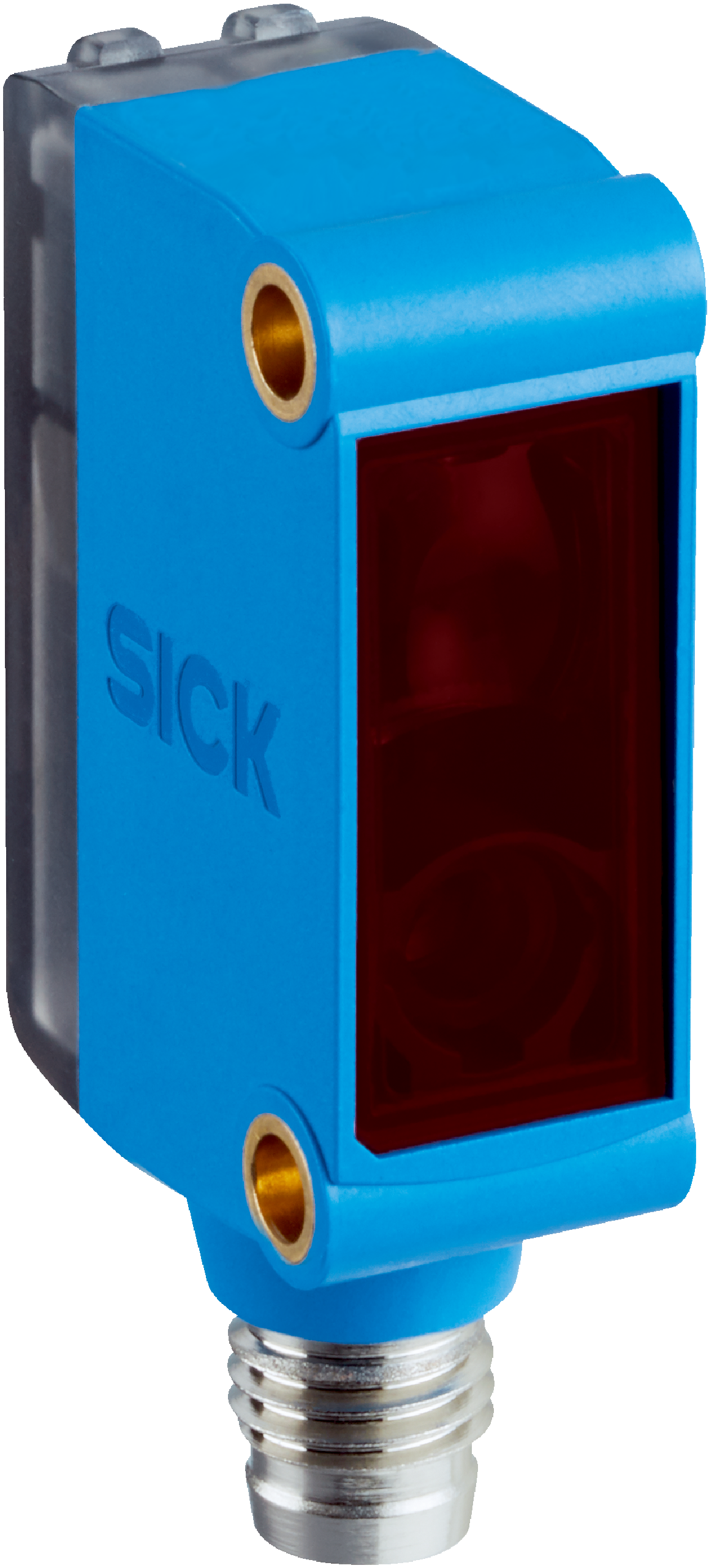

Photoelectric Retro-Reflective Sensor GL6-P4112 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The GL6-P4112 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system with a sensing range of 0.03 m to 6 m. With an IP67 rated enclosure for dust and water protection and a fast response time of less than 625 µs, this sensor is perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Proximity sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.03 m to 6 m
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP digital output with light/dark switching selectable
- Response time: less than 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Connection: Male M8, 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 6 m
- Polarisation filter included
- Visible red light with 650 nm wavelength
- Light spot size Ø 8 mm at 350 mm distance
- IP67 rated enclosure for dust and water protection
- Fast response time under 625 µs
- Selectable light/dark switching mode with PNP output
- Stainless steel mounting bracket and reflector included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL6-P4112 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
