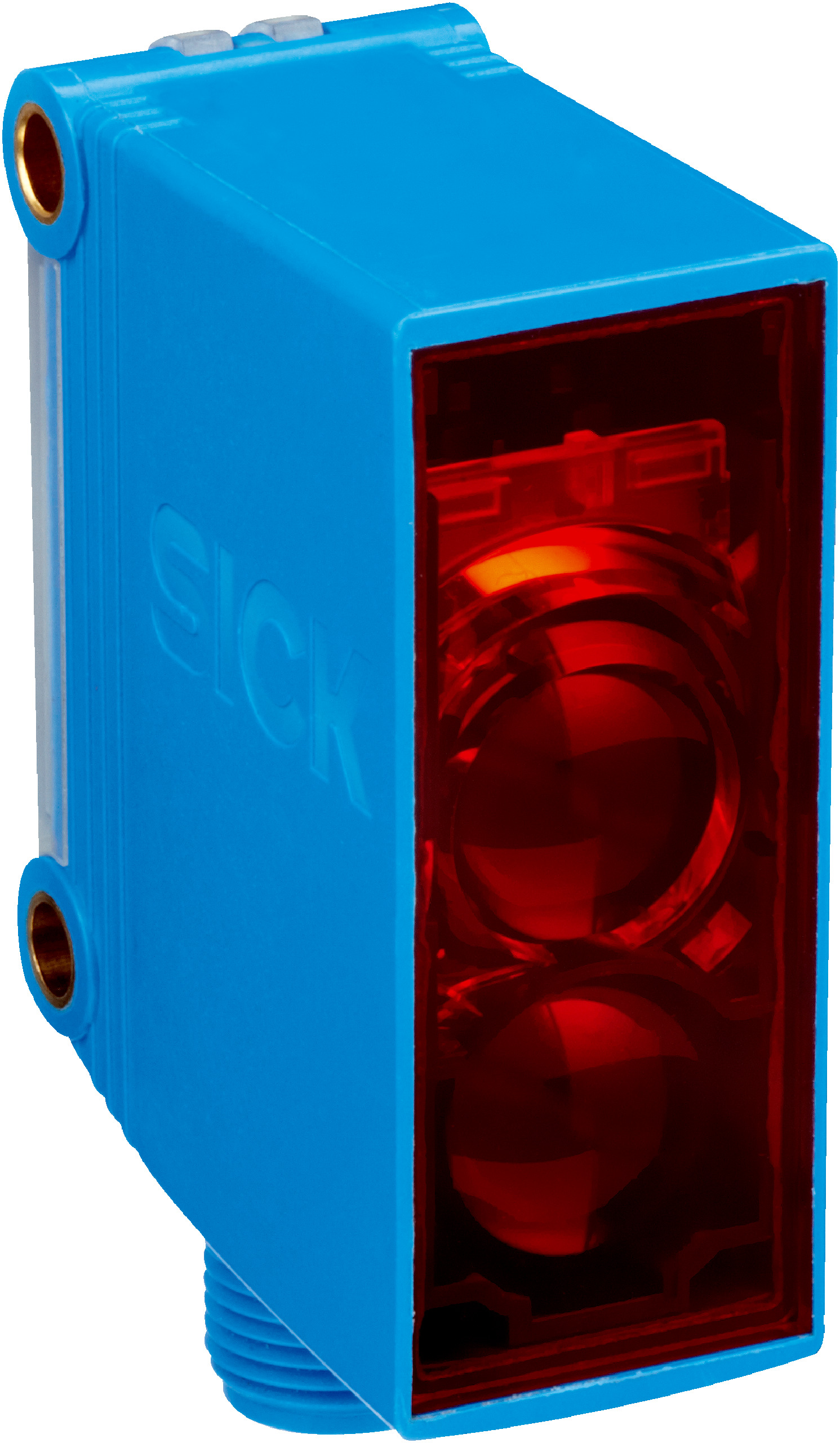

Photoelectric Retro-Reflective Sensor GL10-P4551P06 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor GL10-P4551P06 is designed for industrial automation, featuring a dual lens system and a sensing range of 0.15 m to 12 m. With a fast response time of ≤ 1 ms and an IP67 rated enclosure, it ensures high reliability even on foil-wrapped objects. Ideal for environments requiring precise object detection, this sensor operates effectively in temperatures from –30 °C to +60 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.15 m to 12 m
- Sensing range typical: 0.3 m to 9.5 m
- Light source: PinPoint LED, wavelength 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- EMC standard: EN 60947-5-2
- UL File No.: NRKH.E348498 & NRKH7.E348498
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Visible red light with PinPoint LED light source
- High functional reliability on foil-wrapped objects
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 1 ms and switching frequency of 500 Hz
- Polarizing filter included to reduce false triggering
- Wide operating temperature range from –30 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting objects wrapped in film
- Use in environments requiring high functional reliability on foil-wrapped objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL10-P4551P06 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
