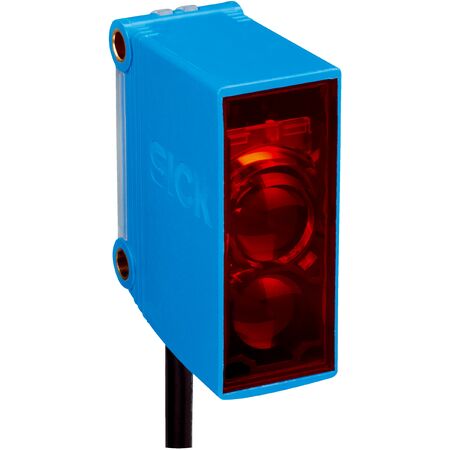

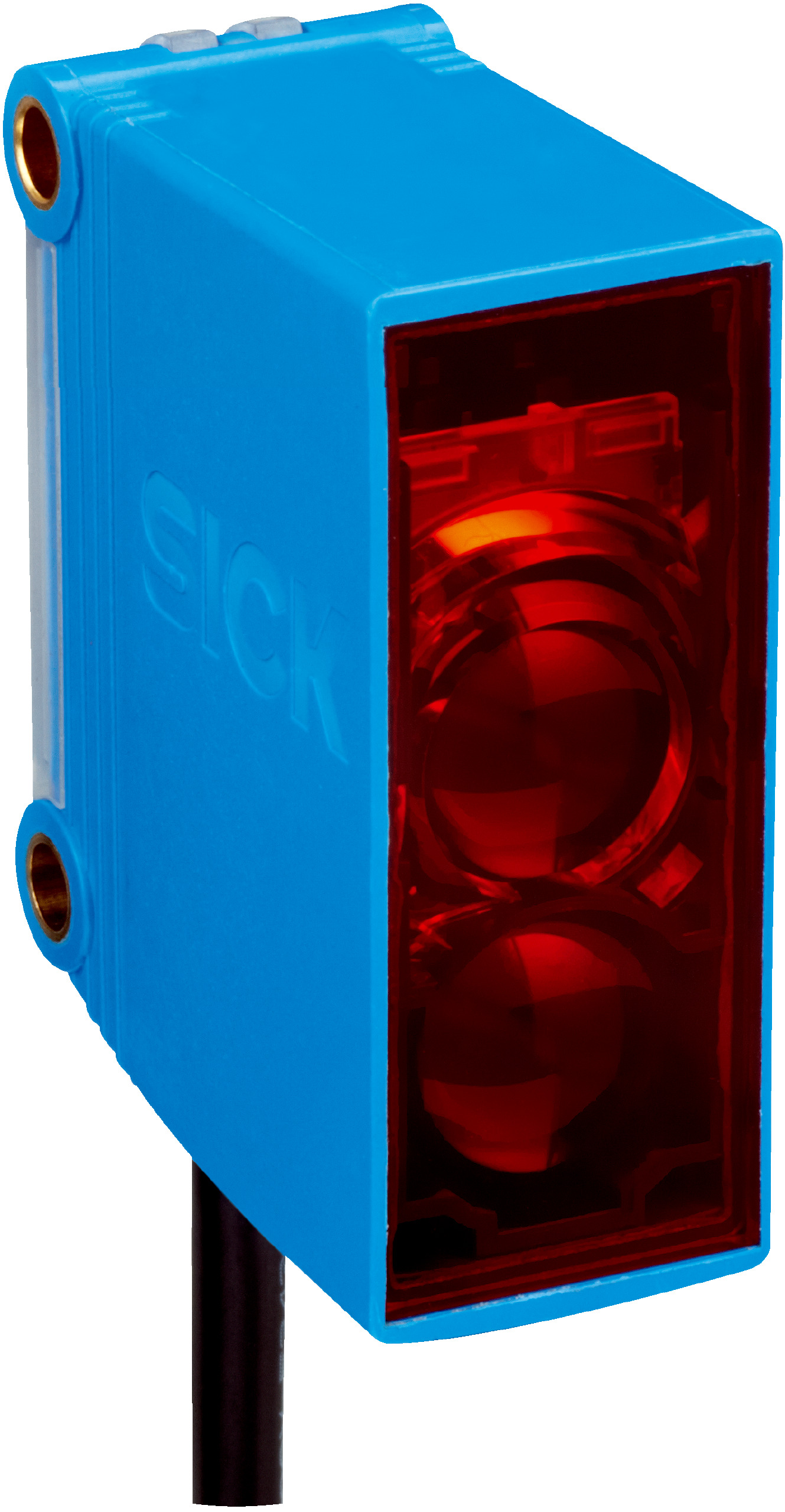

Photoelectric Retro-Reflective Sensor GL10-P7551S04 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor GL10-P7551S04 is designed for industrial automation, featuring a dual lens system and a sensing range of 0.15 m to 12 m. With a fast response time of ≤ 1 ms and an IP67 rated enclosure, it ensures reliable object detection even in challenging environments. Ideal for detecting objects wrapped in film, this sensor is perfect for various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.15 m to 12 m
- Sensing range typical: 0.3 m to 9.5 m
- Light source: PinPoint LED, wavelength 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Cable with M12 male connector, 4-pin, 300 mm
- Housing material: Plastic ABS/PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Visible red light with PinPoint LED light source
- High functional reliability on foil-wrapped objects
- Polarizing filter included
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 1 ms and switching frequency of 500 Hz
- Cable with M12 male connector, 4-pin, 300 mm
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting objects wrapped in film
- Use in environments requiring reliable photoelectric sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GL10-P7551S04 Photoelectric Retro-Reflective Sensor is available now for immediate purchase. Ideal for industrial automation and object detection applications.
