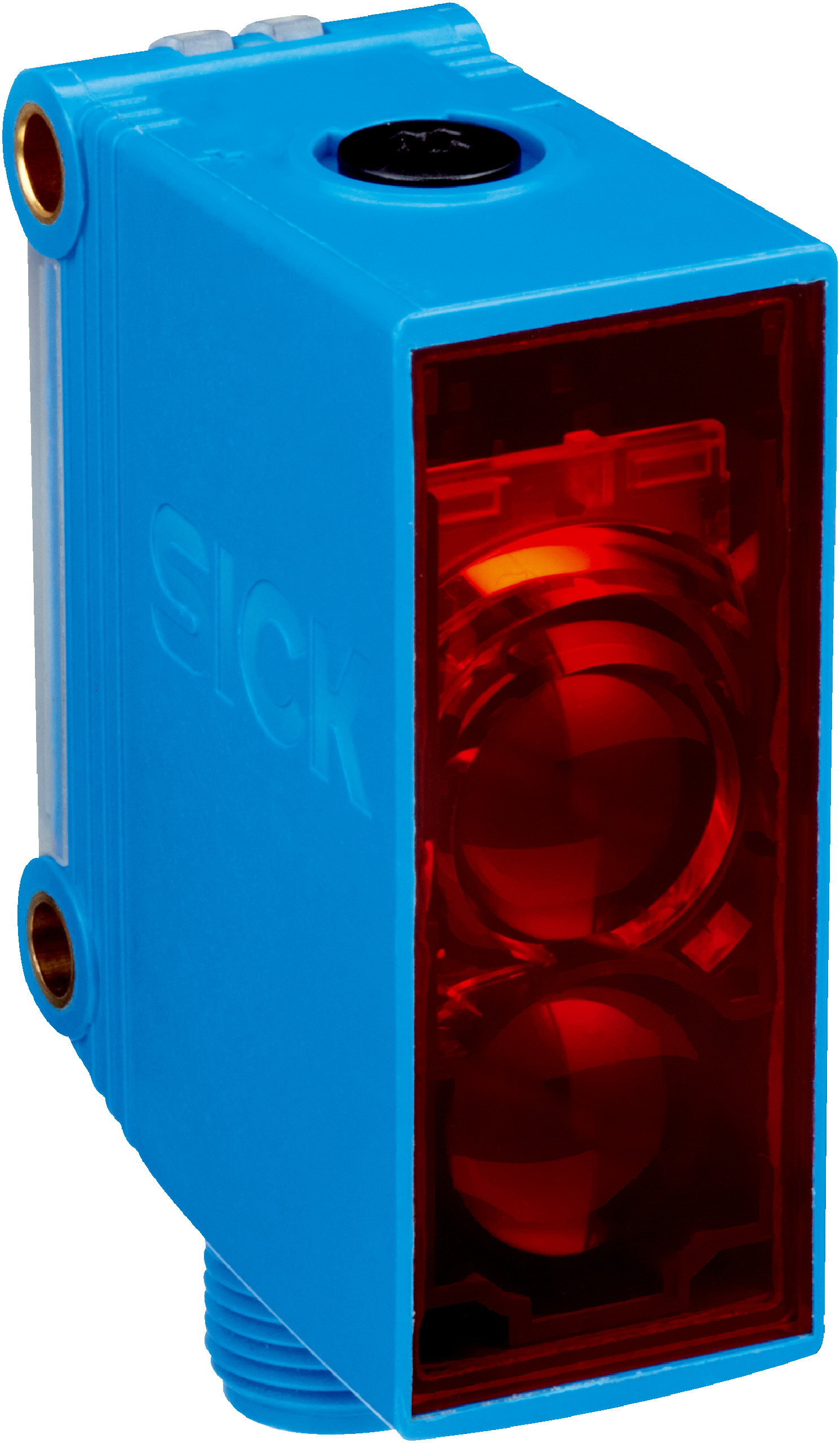

Photoelectric Retro-Reflective Sensor GL10-F4631S11 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor GL10-F4631S11 features a dual lens system for precise object detection, with a sensing range of 0.15 m to 17 m. Designed for industrial automation, this sensor operates in a wide temperature range of -30 °C to +60 °C and boasts a fast response time of ≤ 1,250 µs. Its IP67 rating ensures durability in harsh environments, making it ideal for safety and monitoring applications in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.15 m to 17 m (depending on reflector)
- Type of light: Visible red light, wavelength 625 nm
- Light spot size at 5 m: Ø 58 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, complementary function
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1,250 µs
- Switching frequency: 400 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- UL File No.: NRKH.E348498 & NRKH7.E348498
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Potentiometer adjustment with 270° rotation
- High switching frequency of 400 Hz and fast response time ≤ 1,250 µs
- IP67 rated enclosure for dust and water protection
- Polarizing filter included to reduce false triggering
- Male connector M12, 4-pin for easy connection
- Wide ambient operating temperature range from –30 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GL10-F4631S11 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
