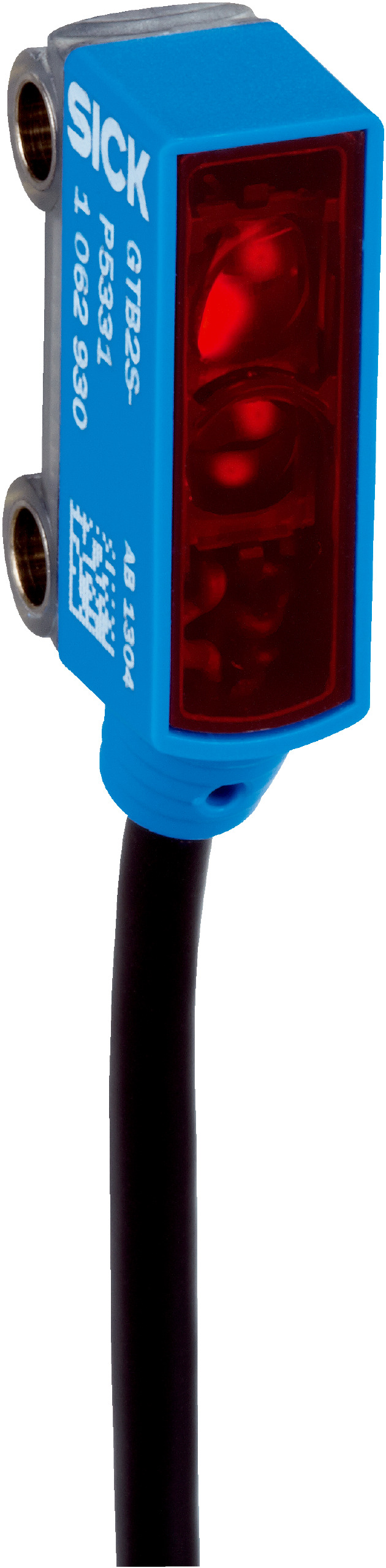

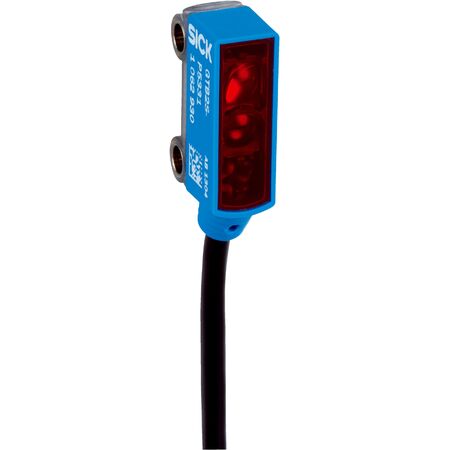

Photoelectric Retro-Reflective Sensor GL2S-P5311S10 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor GL2S-P5311S10 features a dual lens system for precise object detection, with a sensing range of 0.02 m to 3 m. Designed for industrial automation, this sensor operates with a fast response time of under 0.6 ms and is housed in a durable IP67 enclosure, making it ideal for safety and presence detection in manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.02 m to 3 m
- Light source: PinPoint LED, wavelength 640 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Connection: Cable with M8, 3-pin connector, 200 mm length
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Weight: 17.5 g
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range from 0.02 m to 3 m
- Rectangular housing design with IP67 enclosure rating
- Fast response time under 0.6 ms and switching frequency of 800 Hz
- Polarisation filter included for enhanced detection reliability
- Cable with M8, 3-pin connector and 200 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL2S-P5311S10 Photoelectric Retro-Reflective Sensor is available now for immediate purchase. Ideal for industrial automation and safety detection applications.
