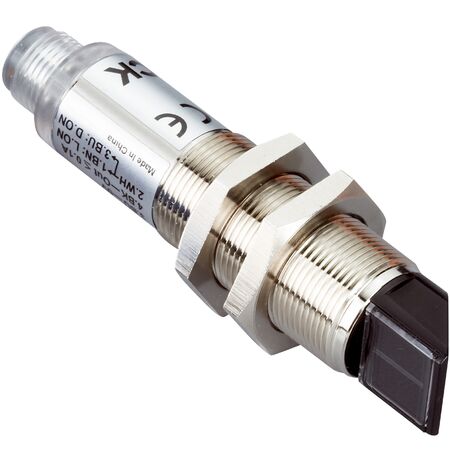

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor VL180-2P42433 features a dual lens system for precise object detection, with a sensing range of 0.05 m to 5.5 m. Designed for industrial automation, this sensor offers a high switching frequency of 1,000 Hz and a fast response time of ≤ 0.5 ms, making it ideal for safety and monitoring applications in manufacturing processes. Its robust IP67 rated enclosure ensures durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching mode
- Output current max: ≤ 100 mA
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Light source: LED with 645 nm wavelength
- Focus angle: Approx. 4.5°
- Light spot size at 4 m: Ø 270 mm
- Dimensions (H x L x W): 18mm x 84.2mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 645 nm
- Sensing range from 0.05 m to 4.5 m, max 5.5 m
- Potentiometer adjustment with 270° sensitivity control
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Robust metal housing with nickel-plated brass and plastic optics
- Polarisation filter included to reduce false triggering
- Male M12 4-pin connector for easy installation
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VL180-2P42433 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
