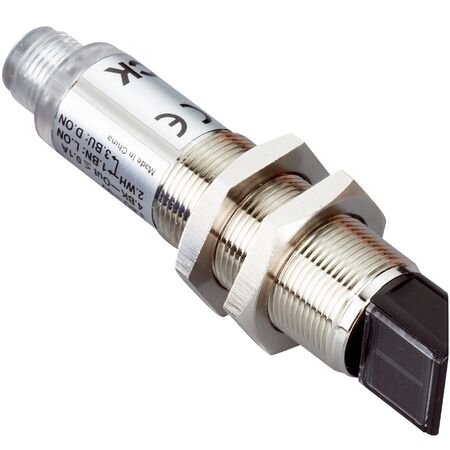

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor VL180-2P32433 features a dual lens system for precise object detection, with a sensing range of 0.05 m to 4.5 m and a fast response time of ≤ 0.5 ms. Ideal for industrial automation and safety monitoring, this sensor is built with a robust IP67 rated housing, ensuring durability in challenging environments. Perfect for material handling and packaging systems, it offers reliable performance with low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.05 m to 4.5 m (max 5.5 m)
- Light source: Visible red LED, wavelength 645 nm
- Adjustment: Potentiometer, 270° sensitivity
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, dark switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Connector M12, 3-pin
- Protection class: III
- Enclosure rating: IP67
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 47 g
- Dimensions (H x L x W): 18mm x 84.2mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 645 nm
- Sensing range from 0.05 m to 4.5 m (max 5.5 m)
- Potentiometer adjustment with 270° sensitivity control
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Connector M12, 3-pin for easy installation
- Dark switching mode with PNP output
- Robust metal housing with nickel-plated brass and plastic optics
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VL180-2P32433 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
