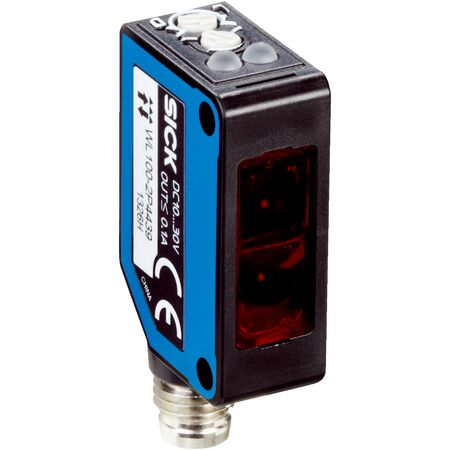

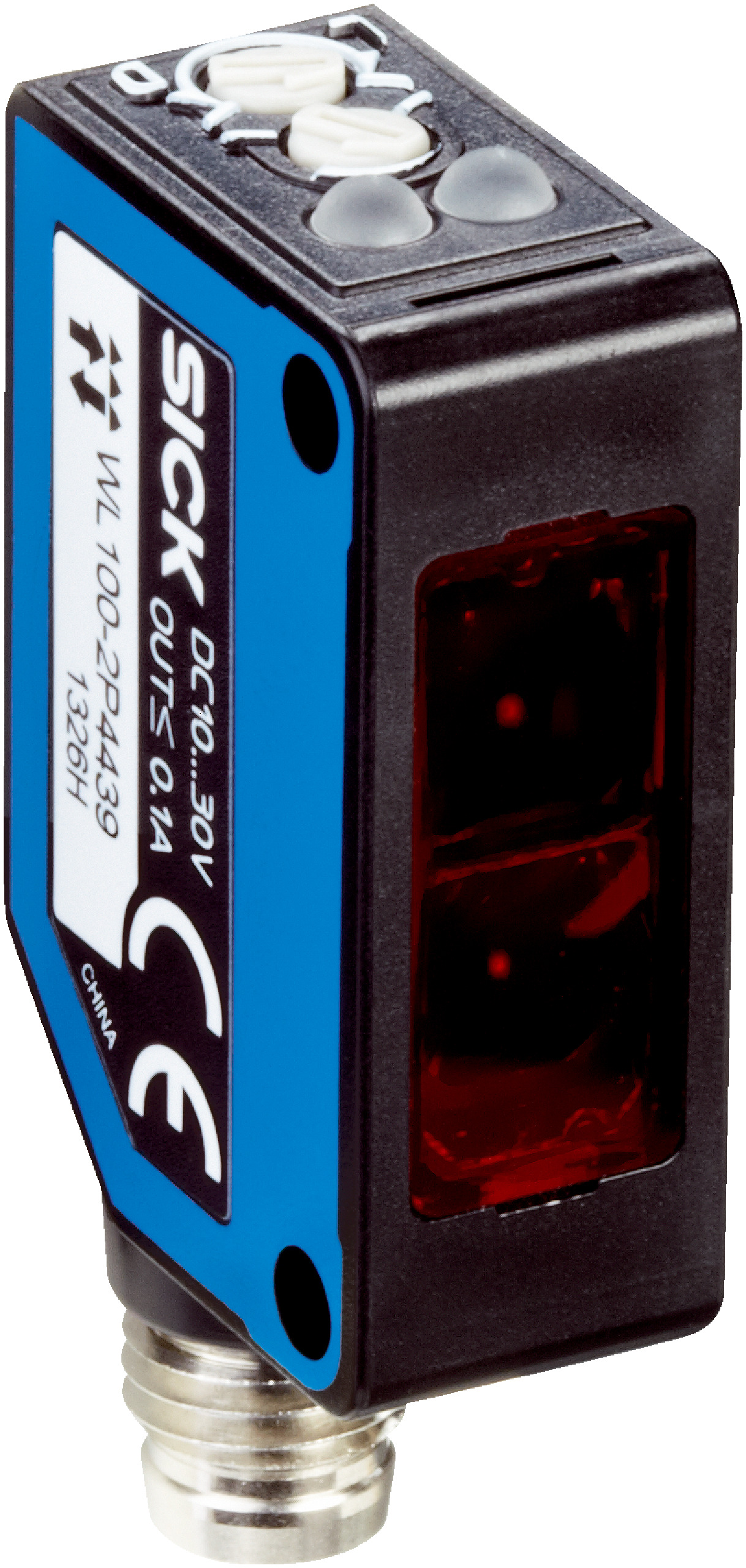

Photoelectric Retro-Reflective Sensor WL100-2P3439 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL100-2P3439 features a dual lens system for precise object detection, with a sensing range of 0.01 m to 7.2 m. Ideal for industrial automation and safety monitoring, this sensor offers a fast response time of ≤ 0.5 ms and is housed in an IP67 rated enclosure for dust and water protection. Perfect for material handling and packaging systems, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.01 m to 7.2 m
- Light source: Visible red LED, wavelength 632 nm
- Adjustment: Potentiometer for sensitivity
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Connector M8, 3-pin
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic ABS/PC/POM
- Optics material: Plastic PMMA
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Includes mounting bracket BEF-W100-A and reflector P250
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 632 nm
- Sensing range from 0.01 m to 7.2 m
- Potentiometer adjustment for sensitivity
- IP67 rated enclosure for dust and water protection
- Plastic housing made of ABS/PC/POM and optics made of PMMA
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Selectable light/dark switching mode via rotary switch
- Connector M8, 3-pin connection type
- Includes mounting bracket BEF-W100-A and reflector P250
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WL100-2P3439 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
